RTOP-1000Y Plant Chamber

RTOP is a biological incubation experimentation instrument, which adopts microcomputer automatic control system, programmable control mode, and intermitting cooling.By setting the multiple parameters, it is able to mimic a natural environment. It has

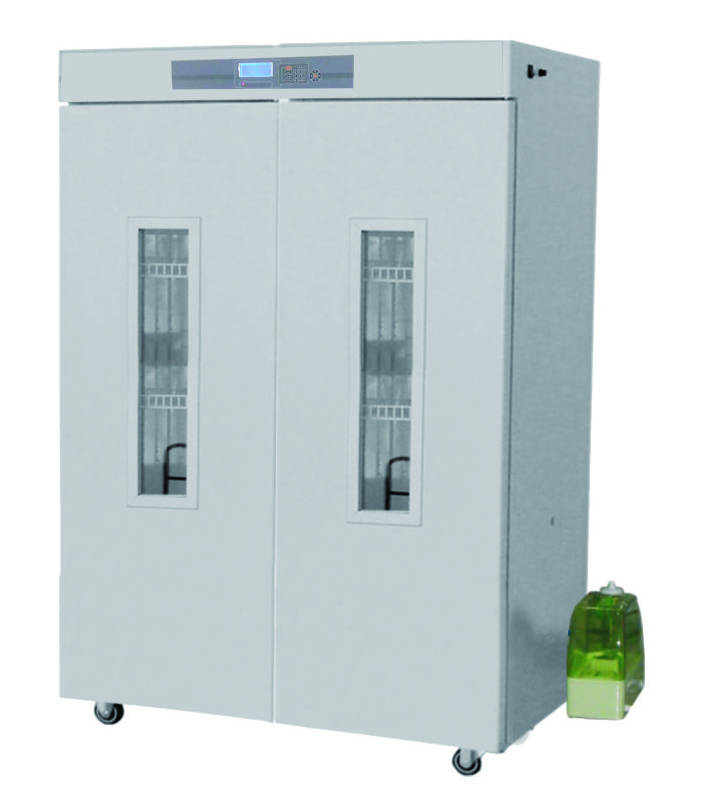

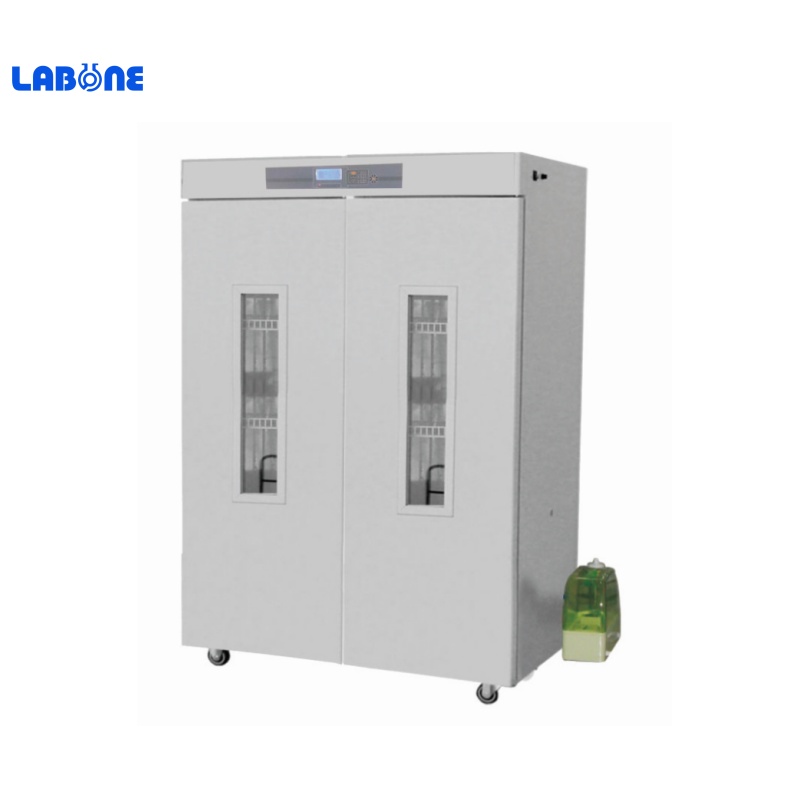

RTOP-1000Y Plant Chamber

Introduction

RTOP is a biological incubation experimentation instrument, which adopts microcomputer automatic control system, programmable control mode, and intermitting cooling.

By setting the multiple parameters, it is able to mimic a natural environment. It has illumination, temperature-constant day and night shift automatically functioning.     It is able to meet various   biological incubation tests.

Our incubator is able to apply to various areas such as seed germinate & breeding, plant group   foster and planting, animalcule incubation, breeding of insects and small animals, anti-oxidation experiment of medicines and environmental experiments of articles; and it is especially

applicable for the study of Bioengineering, Medical study, agricultural, Aquatic, Animal husbandry etc.


Features

   LCD screen display, simple operation, accurate control, easy to view at night.

   The interior features a stainless steel design.

   The program can be controlled by gradient such as time, temperature and illumination.

   Over-temperature and sensor abnormality protection to ensure the equipment and sample safety.

   With sterilization function, sets sterilization time, and automatically turns off sterilization function at the end of sterilization time.

   A power-down protection, boot display after the state power of money, there are storage memory.

   Light source adopts LED light source suitable for plant growth, low energy consumption, low heat.

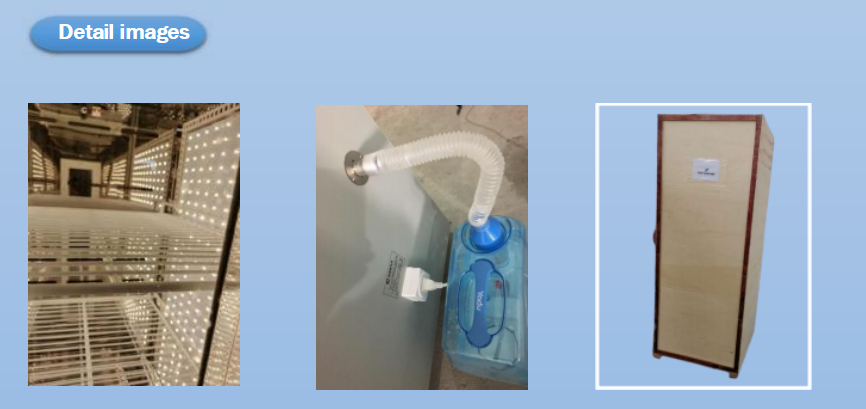

   Inside the incubator is grid structure, which can be adjusted as the sample’s length, it is very convenient and practical.

   Optional capacity: 268L, 310L, 400L,500L, 1000L


Technical parameter

Temperature range

0-50°C

Temperature fluctuation

±0.5°C

Temperature uniformity

± 1°C

Humidity range

50-90%

Humidity fluctuation

±7%RH

Illuminance

0~8000lux (light can be customized)

Can increase the light intensity according to customer requirements

Heating power

300W(GTOP-1000:700W)

Compressor power

190W-320W

Compressor delay guard time

about 3min

Noise

<70Db

Working mode

continuous operation (compressor intermittent working)

Working environment

Temperature: 0-38°C, humidity<80%RH, Non-corrosiveness gas

Power

220±22V, 50±0.5HZ

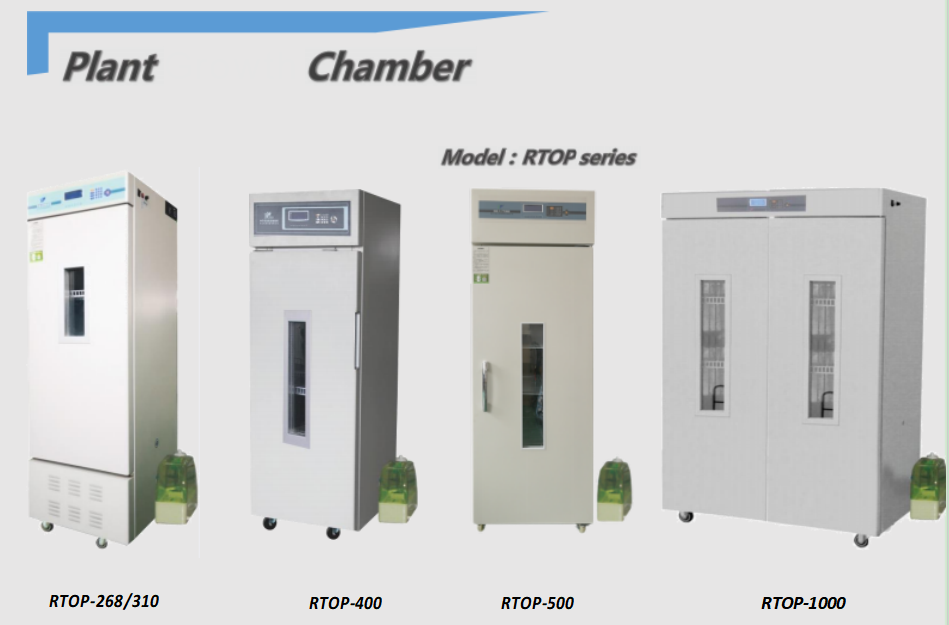

Model



Volume



External Size(L*W*H)



Inner Size(L*W*H)



Temp range



Light degree

RTOP-268Y

268L

580*630*1755 mm

480*480*1040mm

0~50℃

0~8000LUX

RTOP-310Y

310L

580*630*1895 mm

480*480*1290mm

0~50℃

0~8000LUX

RTOP-400Y

400L

744*658*1760mm

570*585*996mm

0~50℃

0~8000LUX

RTOP-500Y

500L

705*825*1971 mm

575*650*1480mm

0~50℃

0~8000LUX



RTOP-1000Y



1000L



1230*708*1865 mm



1110*578*1375mm



0~50℃



0~12000LUX
