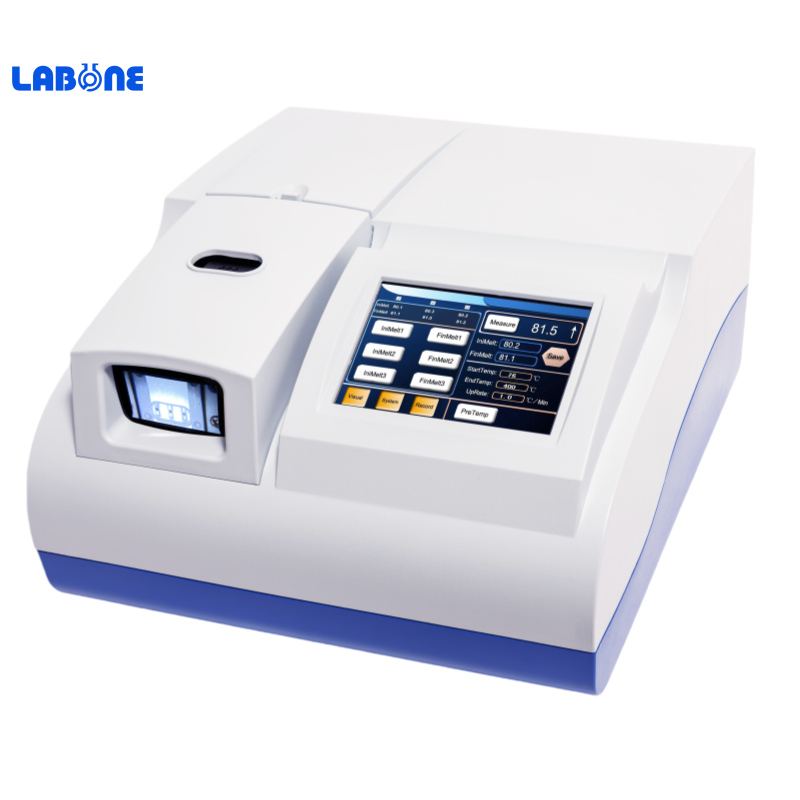

WRS-3A Auto /Visual Melting point Apparatus
To be used in production of medicines, dye-stuffs, perfumes and other organic crystal substances.Observing the process through visual window or choose auto mode to measure.Use PID to control the temperature.It can measure 3 samples at the same time
Characteristics
lTo be used in production of medicines, dye-stuffs, perfumes and other organic crystal substances.
lObserving the process through visual window or choose auto mode to measure.
lUse PID to control the temperature.
lIt can measure 3 samples at the same time and calculate the average automatically.
lColor Touch Screen.
Specifications
Parameters/Model | WRS-3A |
Measuring range | Room temperature -360"C |
Measuring mode | Auto / Visual |
Resolution | 0.1℃ |
Linear heating-up rate | 0.1°C/min -10°C/min |
Accuracy | ≤ 200℃±0.5℃;>200℃±0.8℃ |
Repeatability | 0.3°C(heating rate: 1.0°C/min) |
Linear heating rate error | ±10% |
Number of capillary | 3 |
Capillary dimensions | Outer diameter: Φ1.4mm Inner diameter: Φ1.0mm Length: 90mm |
Height of sample | 3mm |
Data storage | 100sets |
Calibration method | Multi-point calibration |
Display | 5.6 inch color touch screen |
interface | U disk,USB ,RS232 |
Power supply | 220V±22V，50Hz±1Hz，180w |
Package Dimension | 500mmx430mmx370mm |
Weight(Gross) | 13KG |
