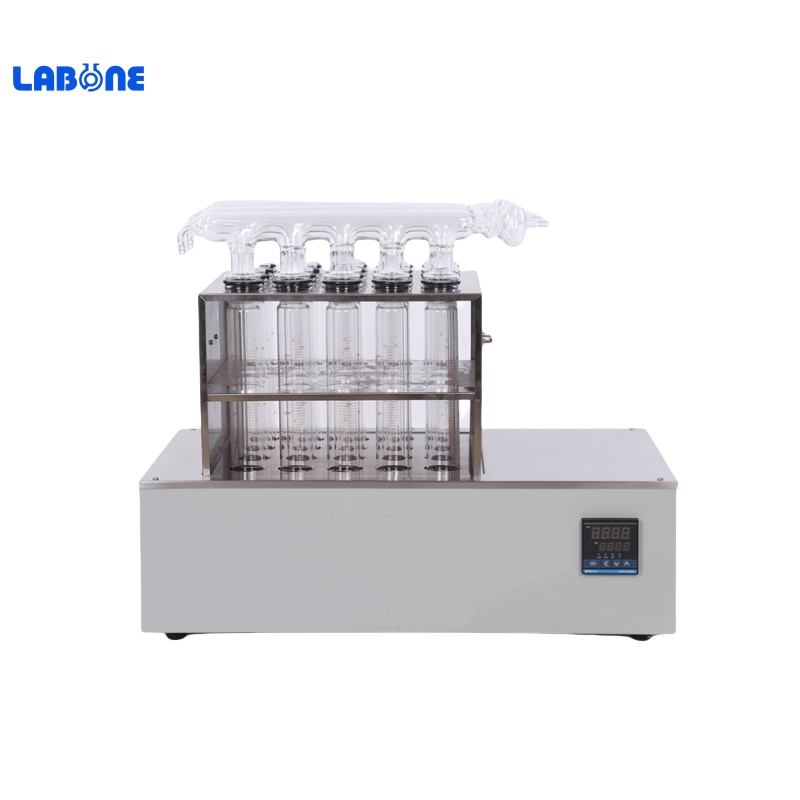

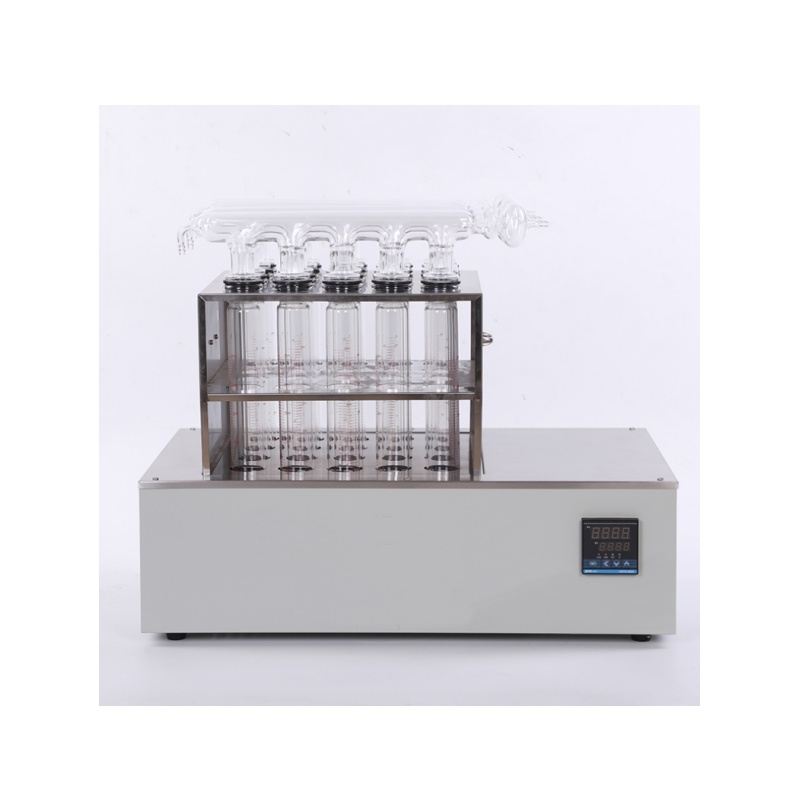

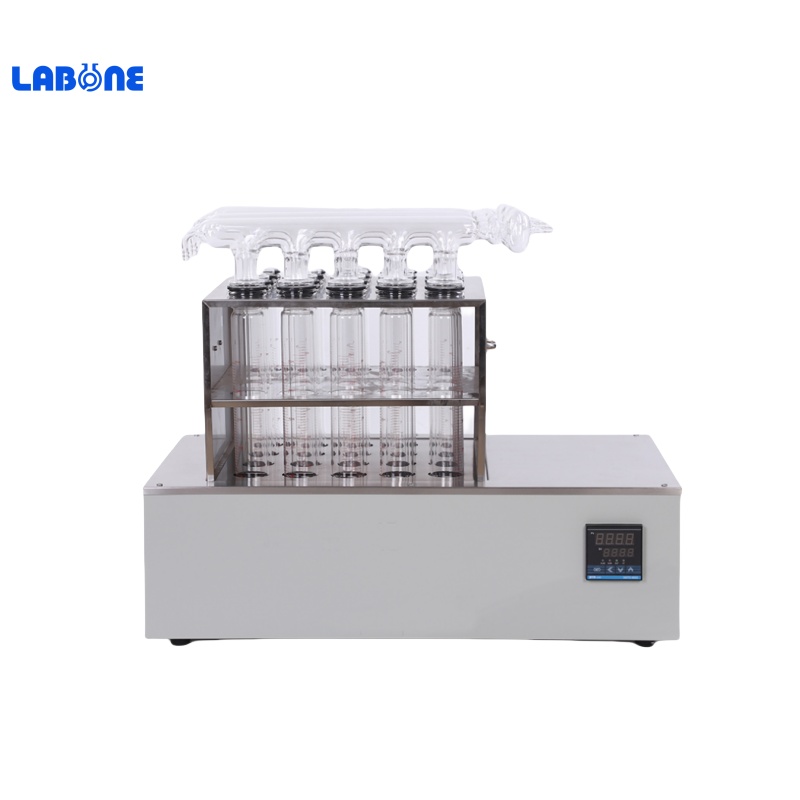

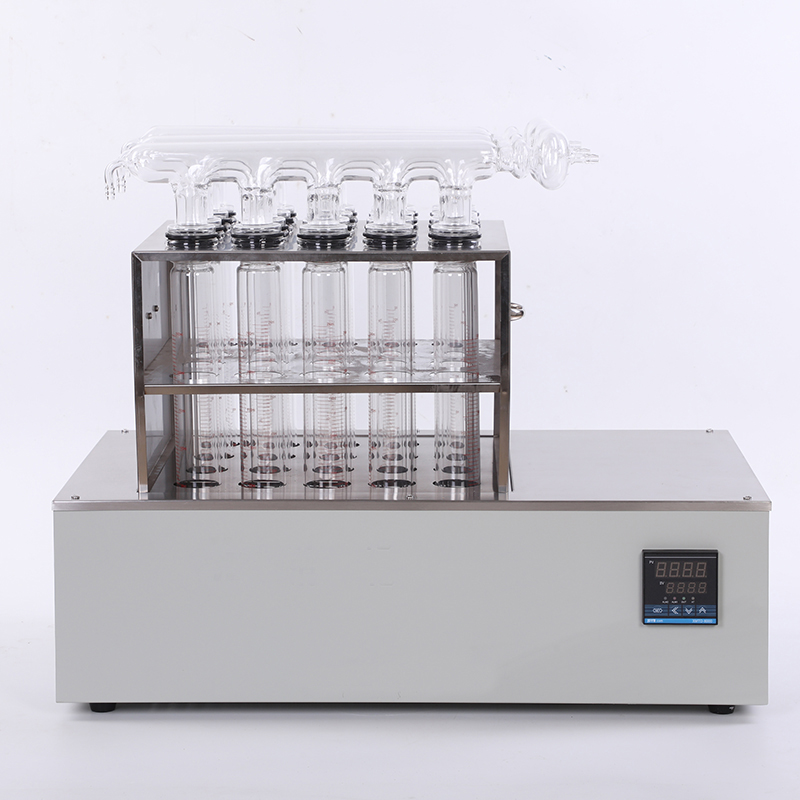

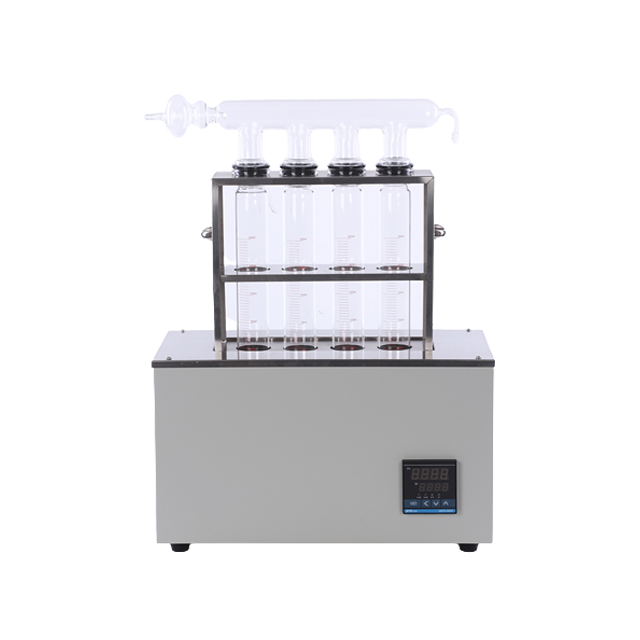

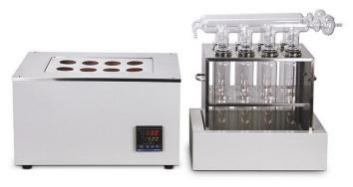

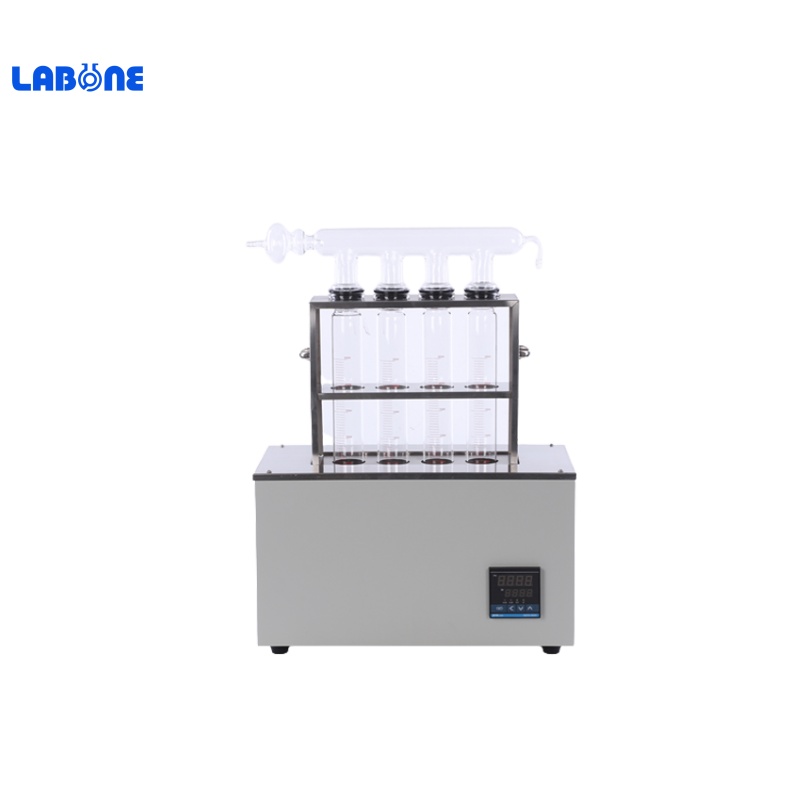

KDN-04C Digital Infrared Digestive Furnace
Type C digestive furnace adopts quartz infrared heating pipe, the radiation is primary and the conduction is auxiliary; short heating time, high efficiencyMachine box adopts specially made plastic spray steel;
KDN-04C Digital Infrared Digestive Furnace
Characteristics
1. Type C digestive furnace adopts quartz infrared heating pipe, the radiation is primary and the conduction is auxiliary; short heating time, high efficiency
2. Machine box adopts specially made plastic spray steel; working area adopts stainless steel materials, has good corrosion resistance.
3. Double-shell design, double thermal insulation effect with air thermal insulation layer and aluminum silicate thermal insulation layer
4. Has multiple protection: over pressure, over current, overheating
5. Small and beautiful, easy to operate, user-friendly.
6. Holes with 4, 8, 20
Specifications
Name of Item | Model | Model | Model |
KDN-04C | KDN-08C | KDN-20C | |
Sample holes | 4 | 8 | 20 |
Heating Module Material | Infrared | ||
Temperature control mode | Digital | ||
Temperature control ranges | room temperature-600℃ | ||
Temperature control accuracy | ± 1℃ | ||
Measurement range | 0.1mgN-200mgN (mg nitrogen) | ||
Digest time | 60-90 min/batch (according to sample quantity) | ||
Digestive pipe capacity | 300ml | ||
Power | 1KW | 1.5KW | 2.5KW |
Operating Voltage | AC220V/50Hz | ||
