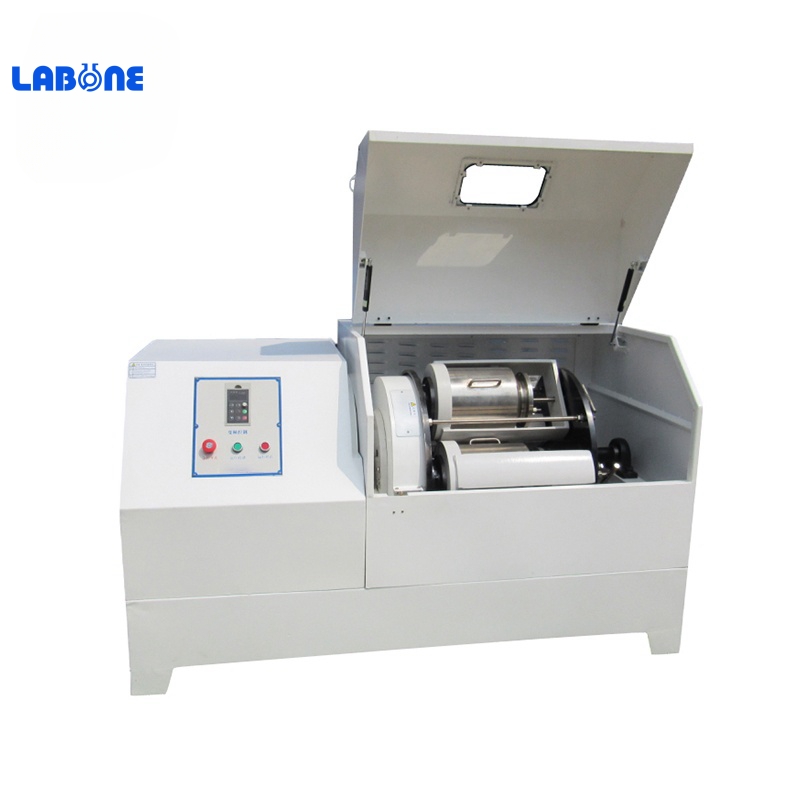

Horizontal Lab Planetary Ball Mill

Horizontal Lab Planetary Ball MillDrive ModeGear drive and belt driveOperate Mode2 or 4 jars work togetherMax loading ca

Send request

Ask for price

Drive Mode	Gear drive and belt drive
Operate Mode	2 or 4 jars work together
Max loading capacity	2/3 of tank
Feeding size	Soil ≤10mm;Other ≤3mm
Output size	≥0.1um
Rotation speed ratio	1:2
Continuous working time	72hours
Speed control	Frequency conveter and automatic timing control

Technical Parameters For Horizontal Planetary Ball Mill Light Type
Model No.	Voltage	Power	Rotation Speed	Noise
WXQM-0.4A	220V-50Hz	0.75KW	70-670 rpm	Less than 58db
WXQM-1A	220V-50Hz	0.75KW	70-670 rpm	Less than 60db
WXQM-2A	220V-50Hz	0.75KW	70-670 rpm	Less than 60db
WXQM-4A	220V-50Hz	0.75KW	70-670 rpm	Less than 60db

Technical Parameters For Horizontal Planetary Ball Mill Heavy-duty Type
Model	Power (KW)	Voltage	Revolution Speed (rpm)	Rotation Speed (rpm)	Total Timing (min)	Alternating Run Time of Forward & Reversal Rotation (min)	Noise≤db
WXQM-6B	1.5	220V-50Hz	35-335	70-670	1-9999	1-999	60±5
WXQM-8B	1.5	220V-50Hz	35-290	70-580	1-9999	1-999	60±5
WXQM-10B	1.5	220V-50Hz	35-290	70-580	1-9999	1-999	60±5
WXQM-12B	1.5	220V-50Hz	35-290	70-580	1-9999	1-999	60±5
WXQM-16B	3.0	380V-50Hz	35-240	60-480	1-9999	1-999	60±5
WXQM-20B	4.0	380V-50Hz	25-215	50-430	1-9999	1-999	65±5
WXQM-40B	5.5	380V-50Hz	25-215	50-430	1-9999	1-999	65±5

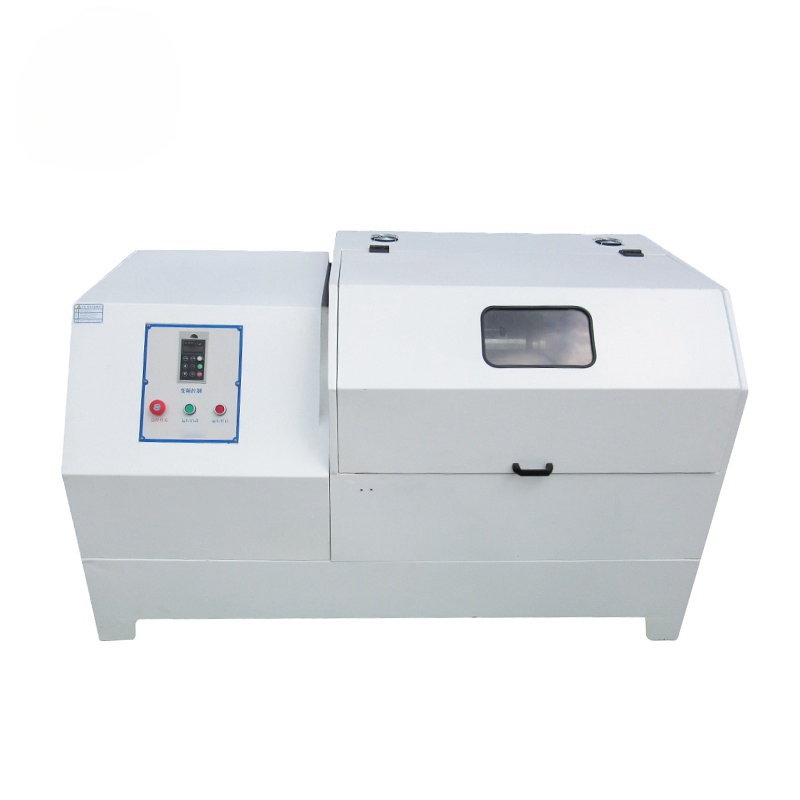

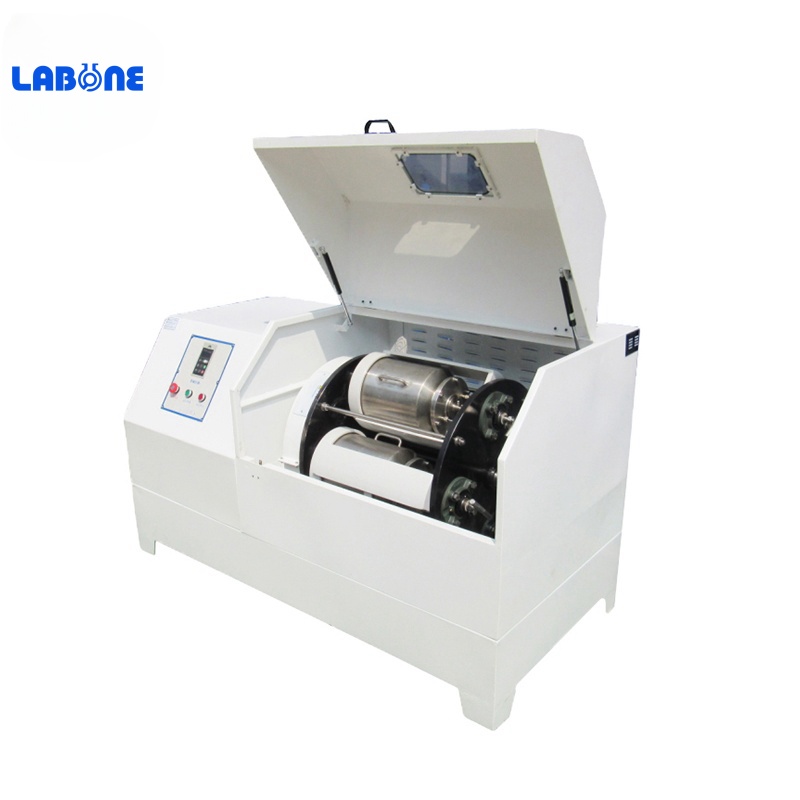

Overview of Horizontal Planetary Ball Mill Heavy-duty Type

WXQM series horizontal planetary ball mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements and the balls in the tanks grinds and mixes samples in high speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of ground powder can be as small as 0.1 micron.
Heavy-duty horizontal planetary ball mill is adopted with double-disk bracket structure with two ends supporting. The stability and anti-load ability of the ball mill have been effectively improved, and it solves limitation of laboratory horizontal planetary ball mill which can be only suitable for light-duty use. Heavy-duty horizontal planetary ball mill is mainly applied for user's middle testing or small batch grinding production.

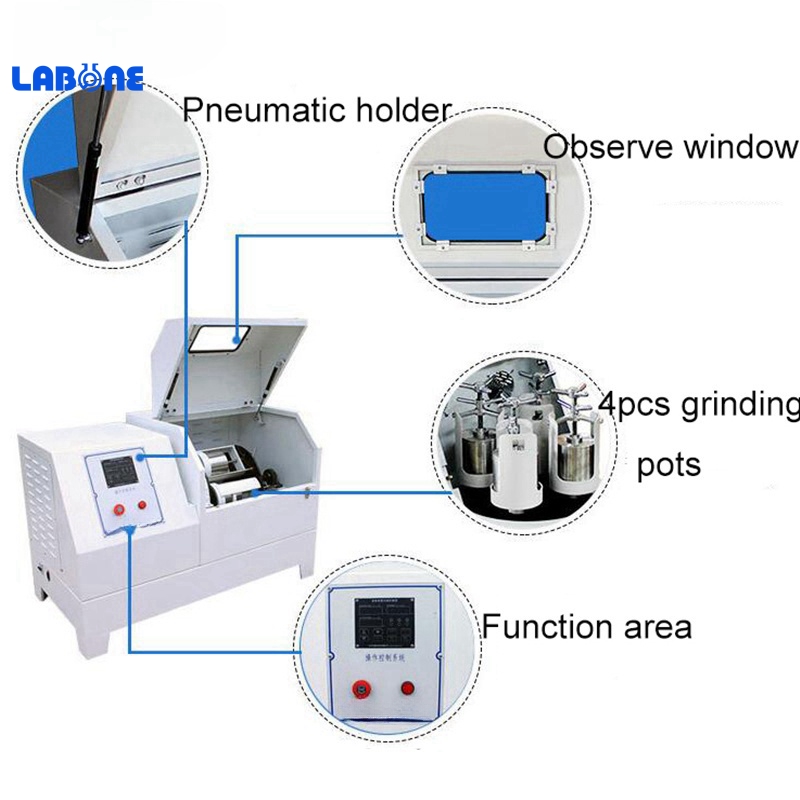

Features of Horizontal Planetary Ball Mill
1. Easy operation.
2. Unique gear with low noise.
3. Horizontal structure of the mill pot avoids materials sinking to the bottom.

Advantages of Horizontal Planetary Ball Mill
1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter; you may choose ideal rotating speed according to expected experimental
result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any
operation modes of one-way direction, alternation, succession, and timing according to experimental needs so as to improve
efficiency of grinding.
6. Technical features of LABONE Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable
safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.

Accessories

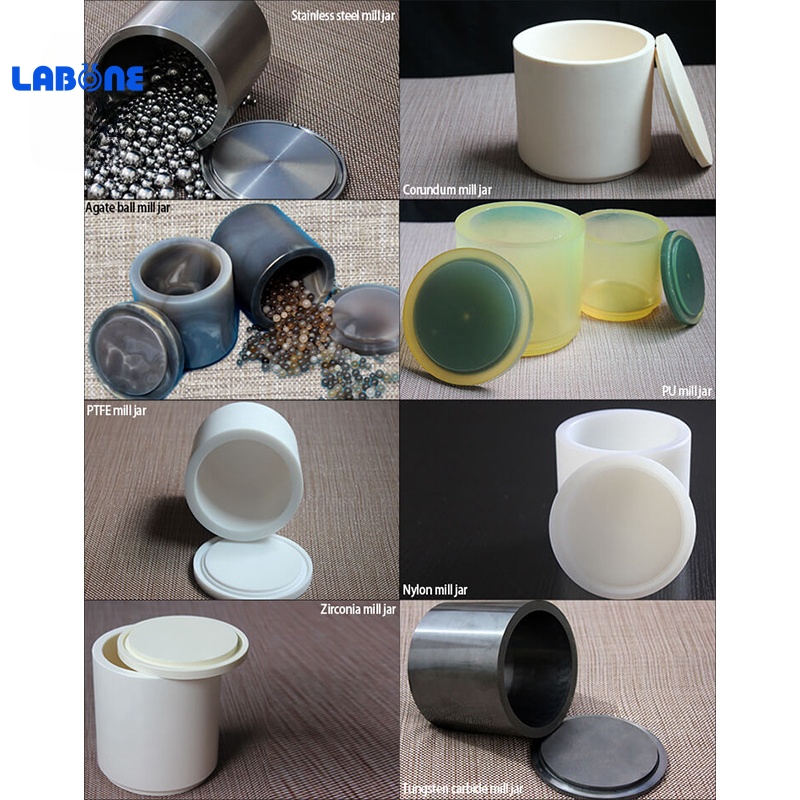

We provide all kinds of mill pots in any matched size, which are made from following materials of agate, Alumina corundum ceramics, zirconia ceramics, silicon nitride ceramics, carborundum ceramics, stainless steel, high wear resistant steel, manganese steel, nylon, PU, cemented carbide, crystal glass, and etc.
