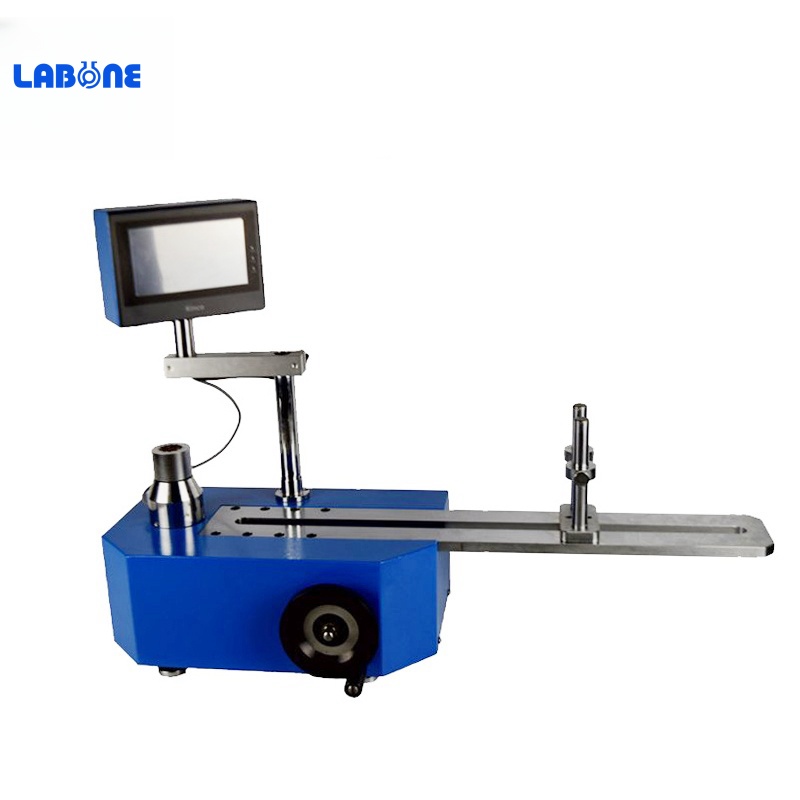

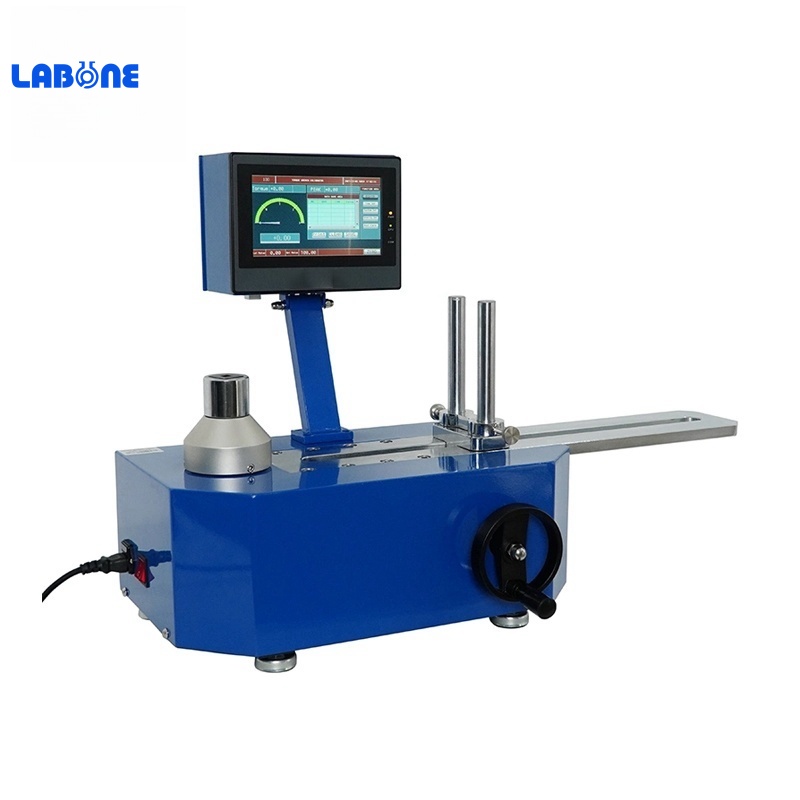

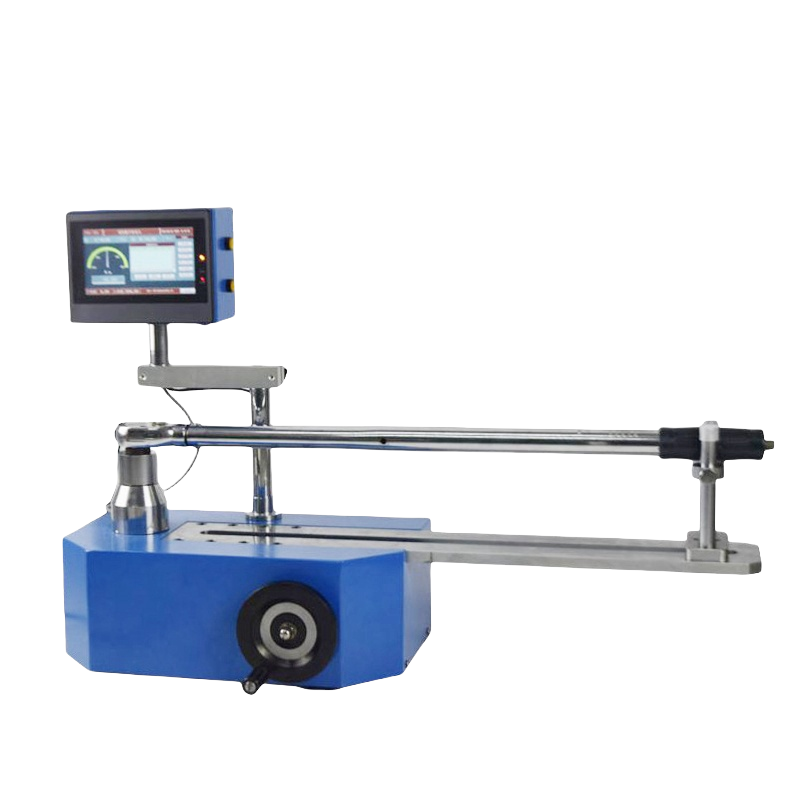

ANJ-M touch torque wrench tester

Purpose

The torque wrench tester is a special equipment for testing torque wrenches and torque screwdrivers. It is mainly used for testing various constant-force torque wrenches, digital display torque wrenches and preset torque wrenches. Widely used in electrical manufacturing, mechanical manufacturing, automotive light industry and professional scientific research and testing industries. Digital and instrument display of torque value, accurate and intuitive, simple preparation of various mortises, easy to clamp.

Features

1. High precision, high resolution and fast sampling speed.

2. Instrument display, curve display, curve zoom function, full touch screen display.

3. Adopt high-precision torque sensor with torque direction display.

4. The upper and lower limits can be set, red font prompt and buzzer alarm.

5. The three units can be converted to each other for selection (N · m, kgf · cm, lbf · in).

6. Real-time and peak two modes can be switched at will.

7. The system time can be set.

8. Store a large amount of data in the form of U disk.

Technical data

Model			ANJ-M100	ANJ-M200	ANJ-M300	ANJ-M500		ANJ-M1000	ANJ-M2000	ANJ-M3000
Measurement range / scale value	N.m	100.0/0.01		200.00/0.01	300.00/0.01	500.00/0.01		1000.0/0.1	2000/0.1	3000/0.1
	Kgf.cm	1021.0/0.1		2040.0/0.1	3063.1/0.1	5105.2/0.1		10210/1	20420/1	30631/1
	lbf.in	886.2/0.1		1772.4/0.1	2658.6/0.1	4431.1/0.1		8862/1	17724/1	26586/1
Dimension			880mm×350mm×550mm					1250mm×500mm×800mm
Check length range			130mm~750mm					250mm~980mm	250mm~1800mm
Width stroke			0~60°					0~360°
Height stroke			130mm					150mm
Accuracy			±1％
Peak sampling frequency			2000HZ
Power			AC220V/50HZ
Net weight			65kg				335kg
