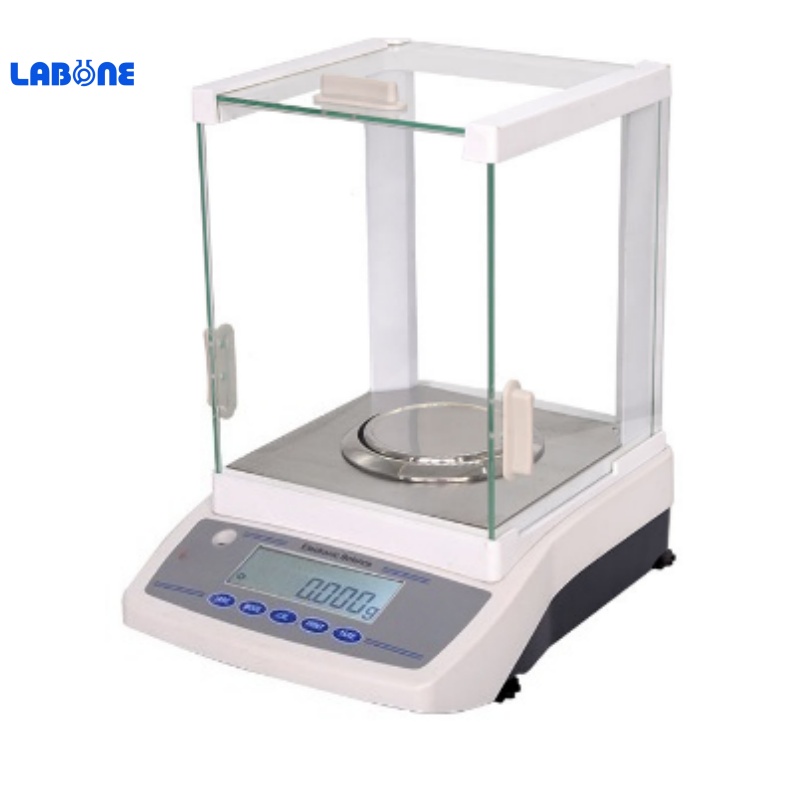

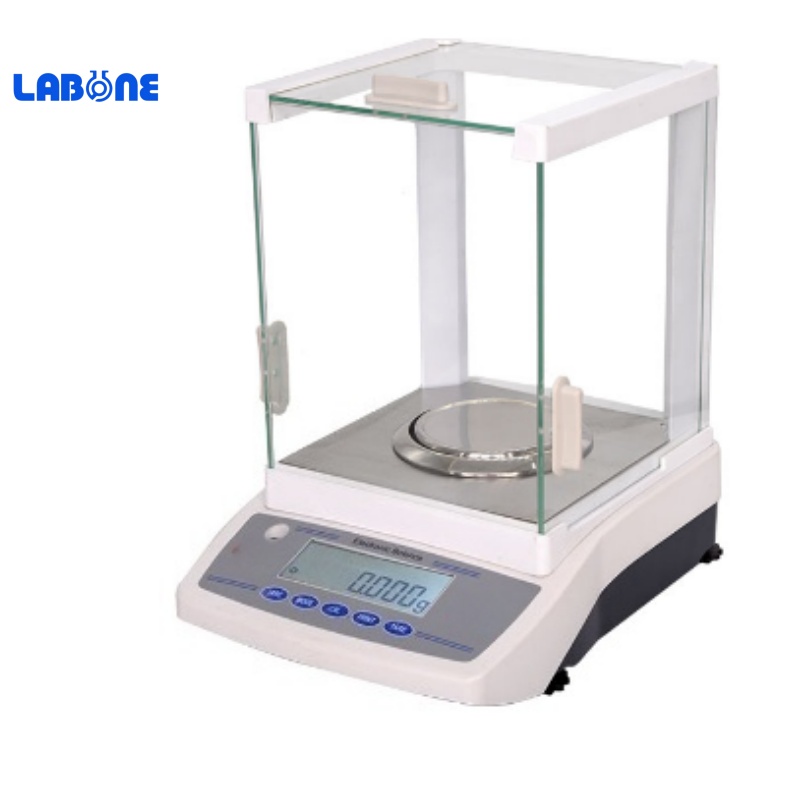

JD-4 Series Electronic Analytical Balance, Accuracy (0.01%)

JD-4 Series Electronic Analytical Balance, Accuracy (0.01%)PRODUCT FEATURE:◆ Underneath-electromagnetic

JD-4 Series Electronic Analytical Balance, Accuracy (0.01%)


PRODUCT FEATURE:


◆   Underneath-electromagnetic       force transducer, big wind-resistant shell with 3 doors,   capacious   weighing   room,   easy operation.

◆Adopt the internationally-accepted highly sensitive,   highly   stable   electromagnetic force transducer technology to obtain the higher performance of the products.

◆ Φ 90mm   stainless   steel   pan,   bigger container, easy to use.

◆External standard stainless steel weight.

◆LCD backlighting display, clear readingswitch optionally the display method in the light and dark environment to protect the eyesight.

◆High  precision, quick  response,  accurate and  reliable, easy operation,  multiple functions satisfying the needs of the quality analysis of all kinds of the laboratories.


PRODUCT FUNCTIONS:

◆Ten thousandth (0.1mg), automatic external calibration

◆ Overloading/underloading  alarm,  the  temperature  compensation,  tare  of  full weighing range, accumulative/regressive features.

◆Multiple weighing units conversion and data output, g, ct, oz etc..

◆Measuring way: counting, percentage, etc. for the different weighing.

◆Standard RS232 output interface connected with the computer and printer etc..

◆Density measurement (Optional parts of the density devices).

◆Optional under hook device


MODEL

CAPACITY

READ ABILITY

REPE ATABILITY

LINEARITY

PAN SIZE

WEIGHT

EXT DIME SION

JD220-4

220g







0.0001g







±0.0001g







±0.0002g







Φ90mm







6.7kg





335×205×293mm

(175×175×185 mm)

JD210-4

210g

JD200-4

200g

JD110-4

110g
