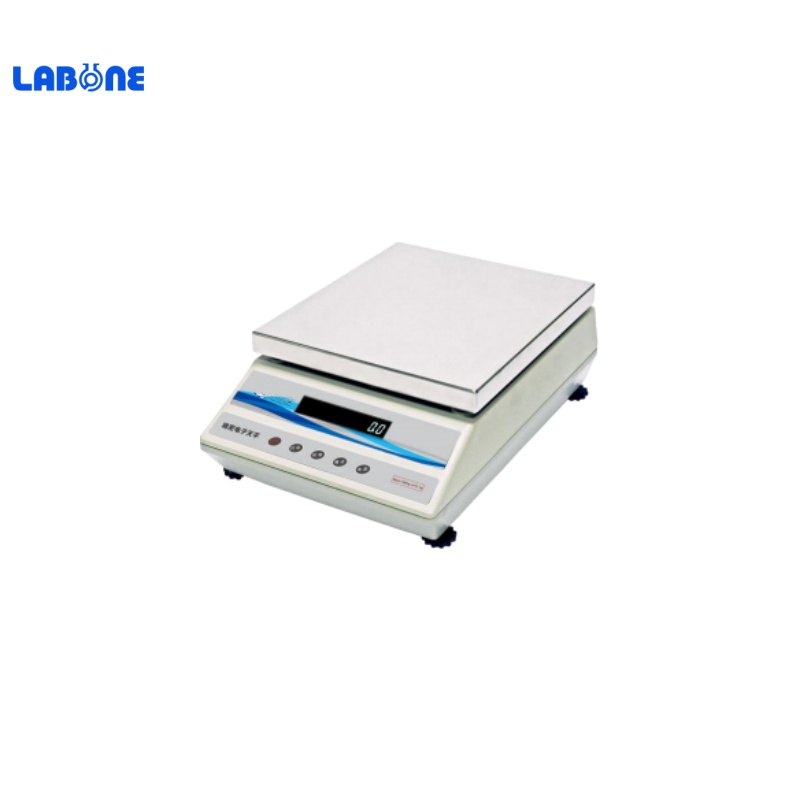

ESK series big capacity balance
ESK series big capacity balanceFeature:1.Electromagnetic force transducer, big capacity, high precision weighing2.Φ340x3
ESK series big capacity balance
Feature:
1.Electromagnetic force transducer, big capacity, high precision weighing
2.Φ340x300mm large stainless steel pan, weigh more objects.
3.LCD backlighting display, clear reading, switch optionally the display method in the light and dark environment to protect the eyesight.
4.High precision,quick response,accurate and reliable,easy operation, multiple functions
5.Widely used in industrial weighing, the verification of the special metal alloy, special parts,production ingredients and cast iron weights.
Funcyions:
1.Automatic external calibration
2.Overloading/underloading alarm, the temperature compensation, tare of full weighing range, accumulative/regressive features.
3.Multiple weighing units conversion and data output, g, ct, oz etc..
4.Measuring way: counting, percentage, etc. for the different weighing.
5.Optional under hook device
6.Standard RS232 output interface connected with the computer and printer etc..
7.Optional calibration weight
MODEL | CAPACITY | READ ABILITY | REPE ATABILITY | LINEARITY | PAN SIZE | WEIGHT | EXT DIME SION |
ES60K×1D | 60kg | 1g | ±1g | ±2g |
340×300 mm |
17kg |
460×315×160 mm |
ES50K-15D | 50kg | 0.5g | ±0.5g | ±1g | |||
ES50K×1D | 50kg | 1g | ±1g | ±2g | |||
ES30K-1D | 30kg | 0.1g | ±0.1g | ±0.2g | |||
ES30K-12D | 30kg | 0.2g | ±0.2g | ±0.4g | |||
ES30K-15D | 30kg | 0.5g | ±0.5g | ±1g | |||
ES30K×1D | 30kg | 1g | ±1g | ±2g | |||
ES20K-1D | 20kg | 0.1g | ±0.1g | ±0.2g | |||
ES20K-15D | 20kg | 0.5g | ±0.5g | ±1g | |||
ES20K×1D | 20kg | 1g | ±1g | ±2g | |||
ES10K-1D | 10kg | 0.1g | ±0.1g | ±0.2g | |||
ES20K-2D | 20kg | 0.01g | ±0.02g | ±0.04g | |||
ES15K-2D | 15kg | 0.01g | ±0.02g | ±0.04g | |||
ES10K-2D | 10kg | 0.01g | ±0.02g | ±0.04g |
