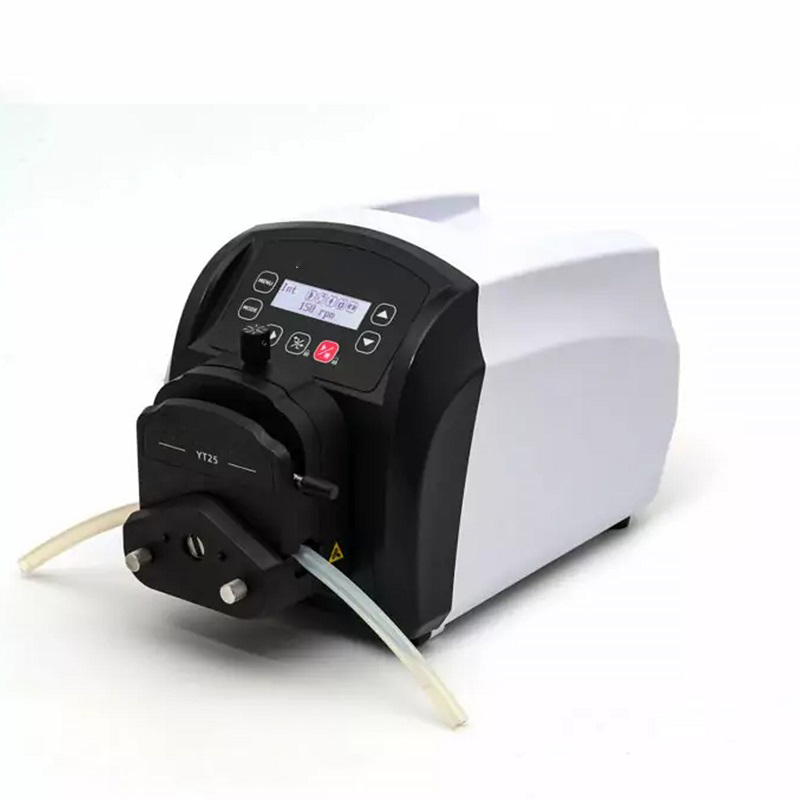

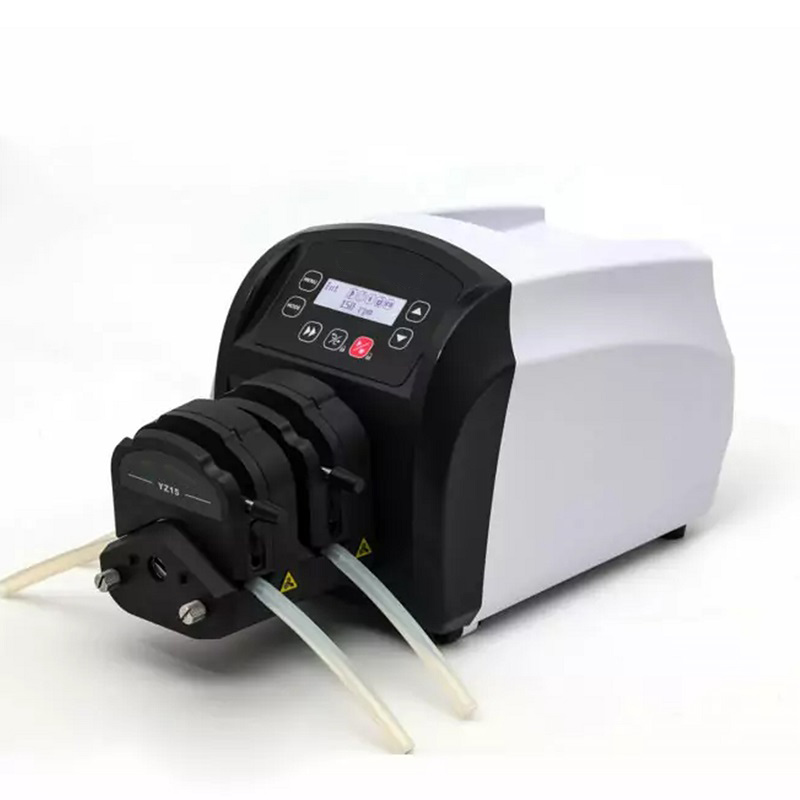

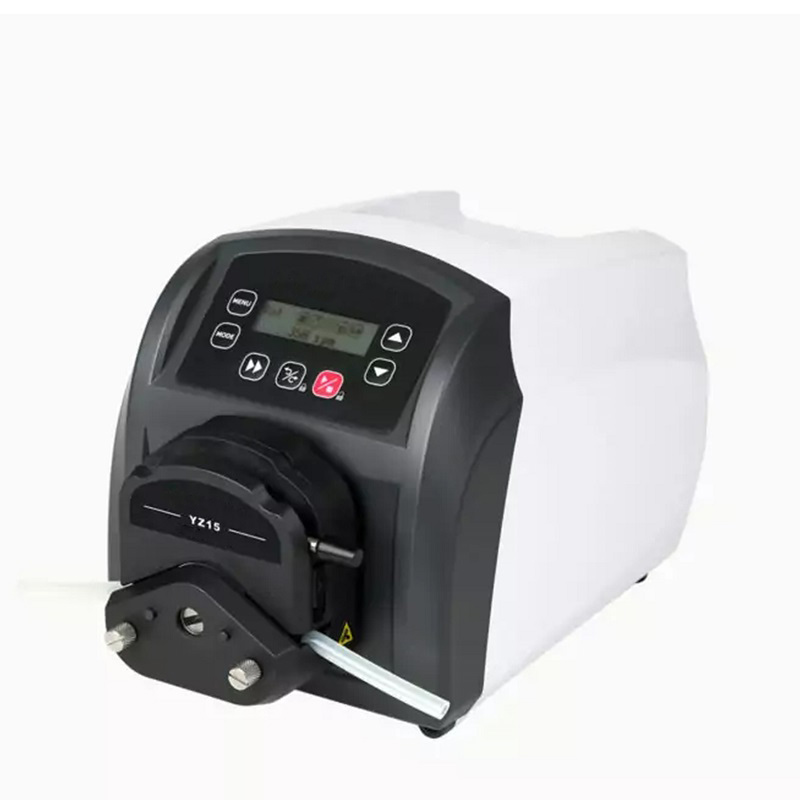

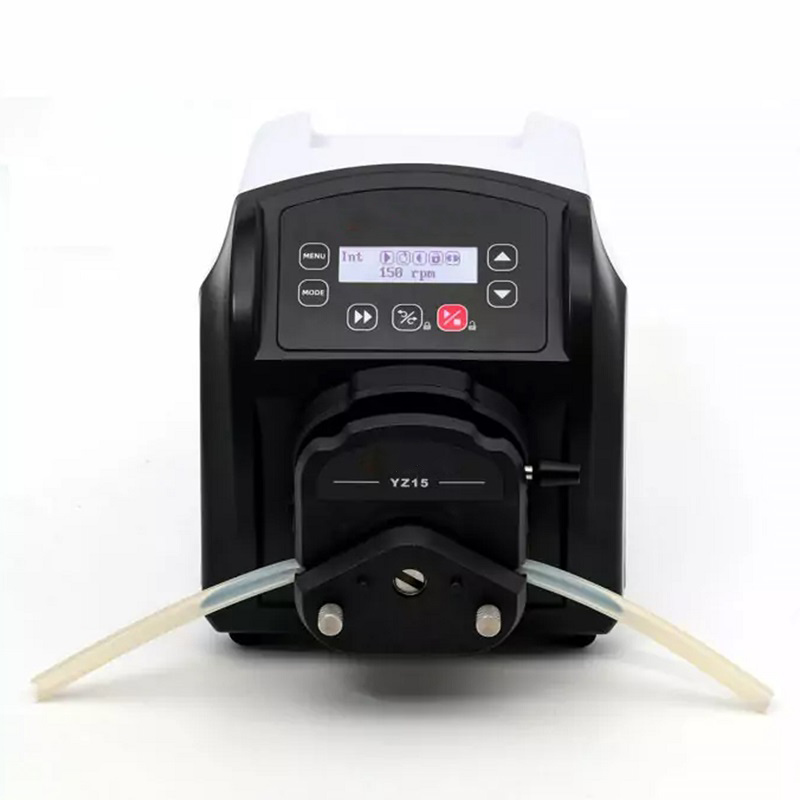

BT601S Speed-Variable Intelligent Peristaltic Pump

BT601S speed variable peristaltic pump, it can easily realize stepless speed regulation, specially designed for laboratory.Flow: 0.005~3000mL/minMax: 2 Channels

BT601S Speed-Variable Intelligent Peristaltic Pump



BT601S speed variable peristaltic pump, it can easily realize stepless speed regulation, specially designed for laboratory.



Flow: 0.0053000mL/min
Max: 2 Channels



Category: Basic Variable-Speed Pumps

Tags: peristaltic pump manufacturerSpeed-VariablePeristaltic Pump



Functions and Features

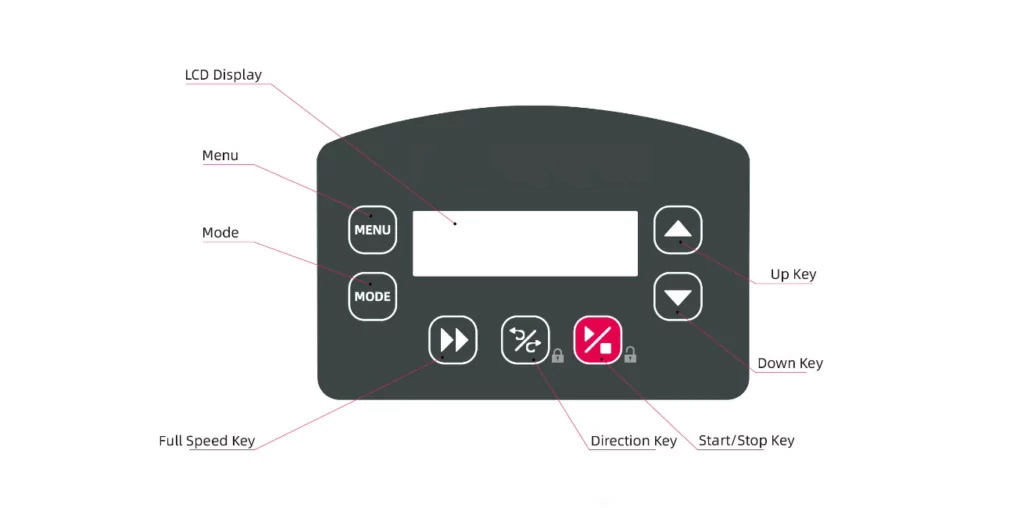

•128 * 32 LCD screen, Chinese and English switching, simple parameter setting, intuitive status display.
•It can realize start and stop, speed regulation, timing operation and other operations remotely through the LABONE APP software, and has monitoring functions such as shutdown alarm, pump tube replacement reminder and so on (optional)
•Delay start and delay stop function.
•Start/stop, reversible direction, full speed, adjust speed, state memory (power-down-memory).
•External analog speed regulation, external control signal control start and stop, positive and negative, physical isolation of external control signal.
•External control signal supports 5-24v wide voltage input.
•External speed control signal type (voltage or current) can be switched through the control panel.
•RS485 communication interface, MODBUS protocol is available, support communication parameter settingeasy to connect other equipments.
•Set multiple control parameters for ODM customization application.
•Circuit board with conformal coating makes it dust-proof and moisture-proof.
•Super anti-interference feature, wide input voltage range, acceptable for the complex power environment .
•ABS plastic housing, creative streamlined appearance, beautiful and simple.


Specifications

Flow range: 0.0053000mL/min

Speed range: 0.1600rpm

Speed resolution: 0.1rpm(speed≤100rpm),1rpm(speed100rpm

Speed accuracy: <0.5%

Working time: 0.1999 S/Min/H/D

Dispensing interval time: 0.1999 S/Min/H/D

Dispensing time: 1999,“0” Infinite loops

External control: External control input level 5V, 12V(Standard), 24V (Optional), External control analog 0-5V(Standard),0-10V,4-20mA (Optional)

Communication interface: RS485 communication interface, MODBUS protocol is available

Power supply: AC 100-240V 50/60Hz

Power consumption: <50W

Working environment: Temperature 0 40℃, relative humidity80%

IP grade: P31

Dimension (L×W×H): 284mm×180mm×197mm

Driver weight: 3.9kg



BT601S Applicable Pump Head and Tube, Flow Parameters

Drive type

Pump head

Ch

Flow rate per channel (mL/min)

BT601S

YZ15

1,2

0.0052562

YT25

1

0.0243000

Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.

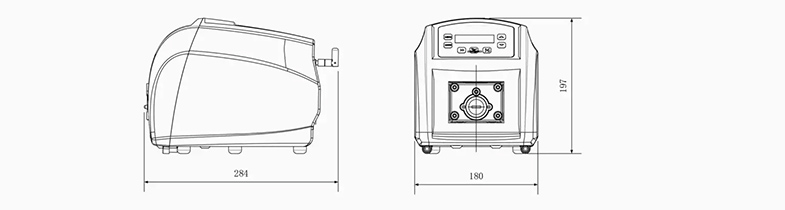

Dimensionmm

 未标题-1 副本.JPG

StatementThe final explanation right of above information belongs to LABONE.
