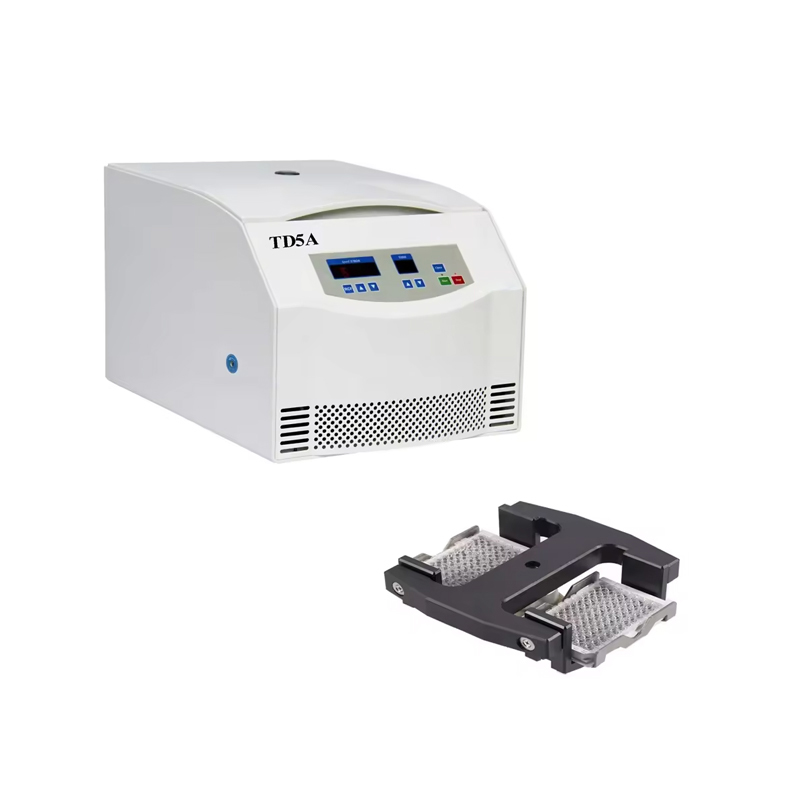

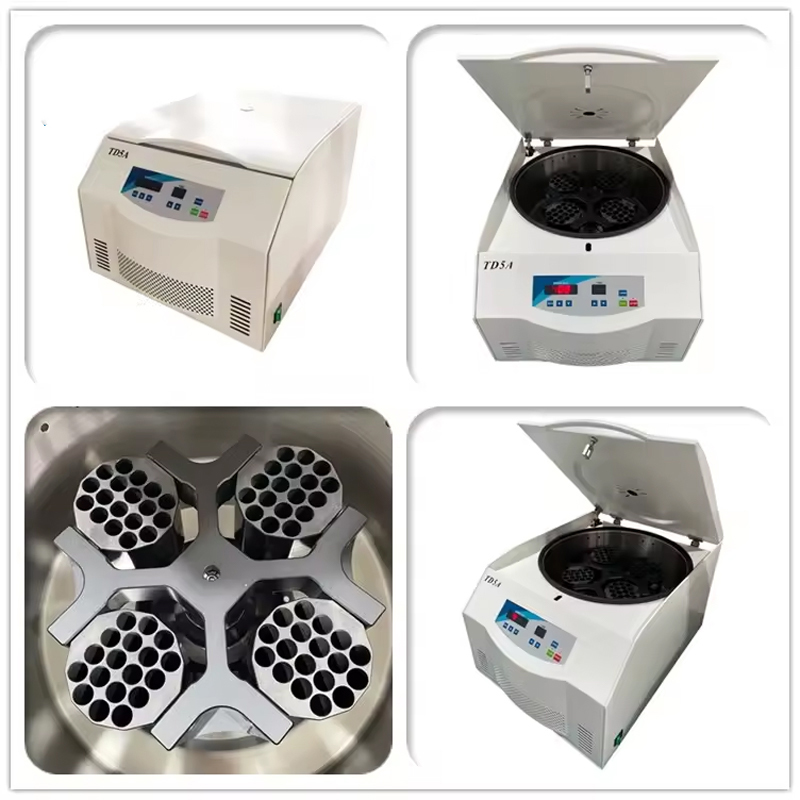

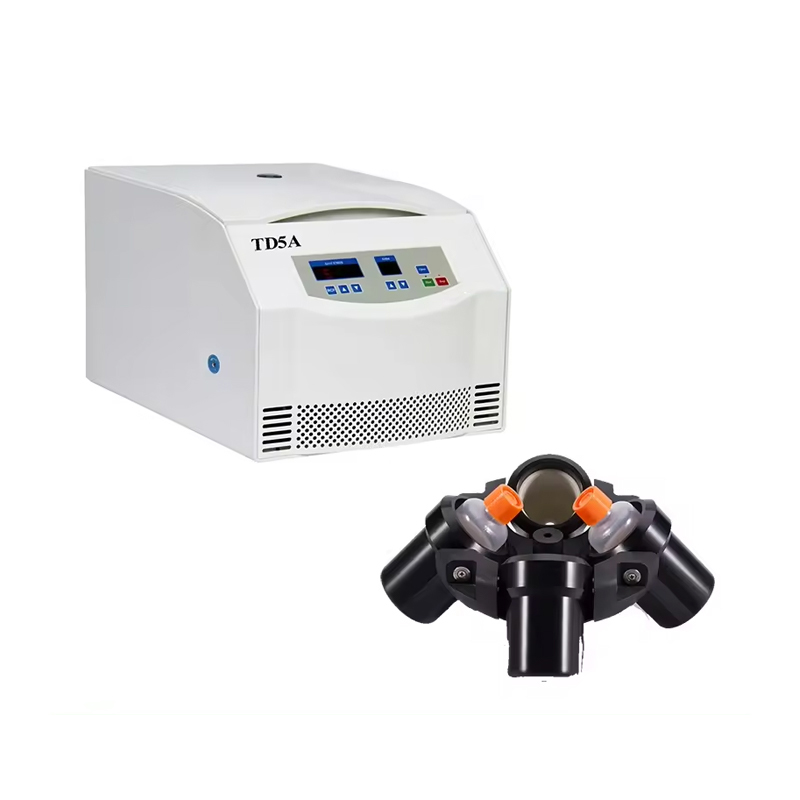

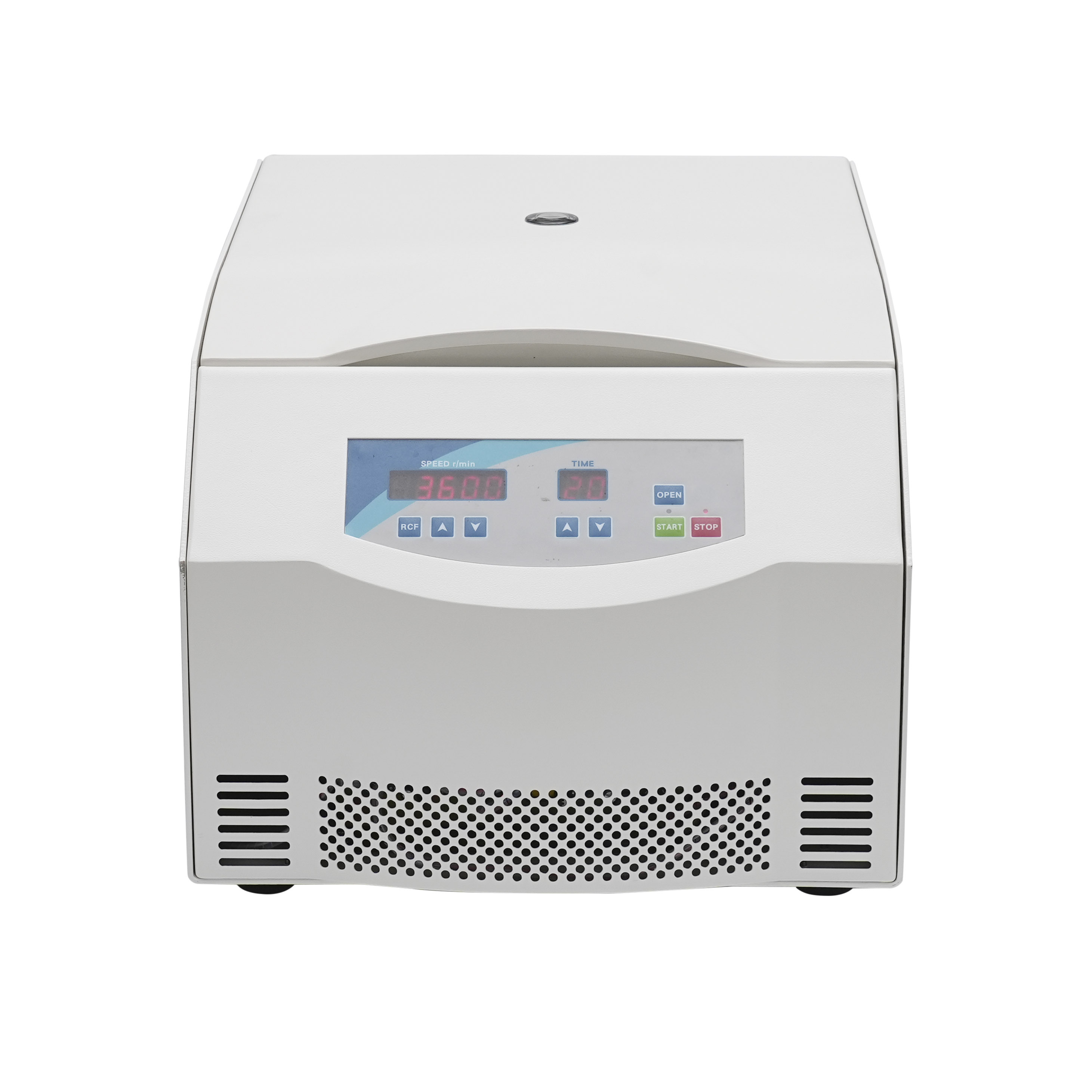

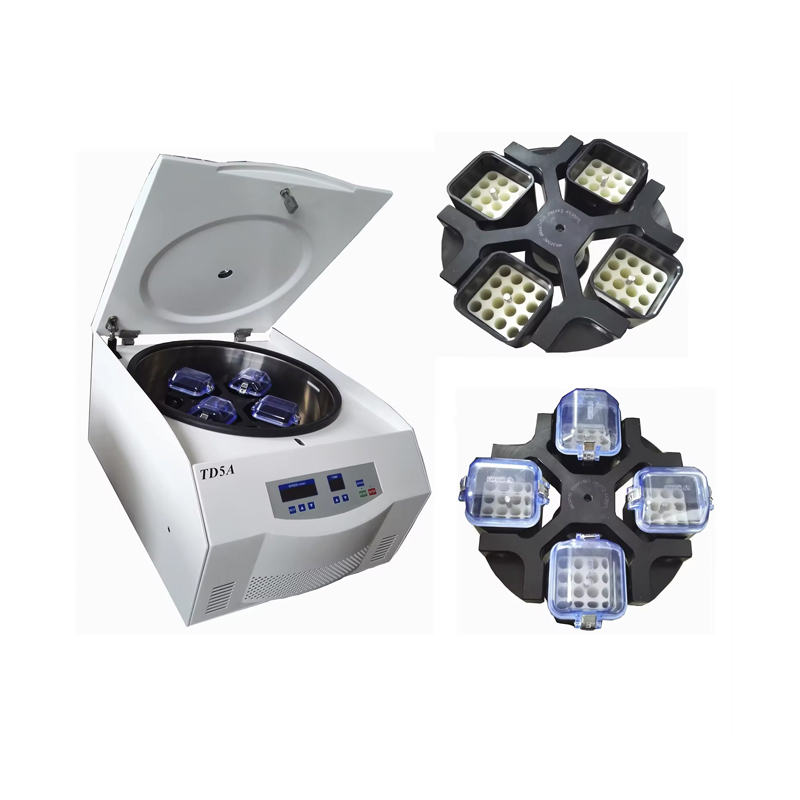

TD5A Table Top Low Speed Centrifuge
Features:
1. Microprocessor control, digital display, touch panel, parameters in running can be edited and change to display other running parameter and RCF.
2. Brushless frequency motor with simpler construction, more reliable performance, longer life and quietly running.
3. Automatic lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.
4. Adapters are available by experiment requirements.
5. 3 tiers protection steel cover, safe and reliable.
6. TUV CE EMC certificate.
TD5A Technical Parameter：
Max. Speed | 5000rpm |
Max. RCF | 4730×g |
Max. Capacity | 4×300ml |
Time Range | 0~99min |
RPM/RCF Convert | Yes |
Noise (dB) | ≤ 58 |
Temperature | Normal |
Acc/Dec | 10 Kinds |
Speed Accuracy | ±20r/min |
Temperature Accuracy | / |
Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
Size (W x D x Hmm) | 620×450×355mm |
Net Weight(Kg) | 52KG |
Certificates | CE,ISO & Calibration report are available |

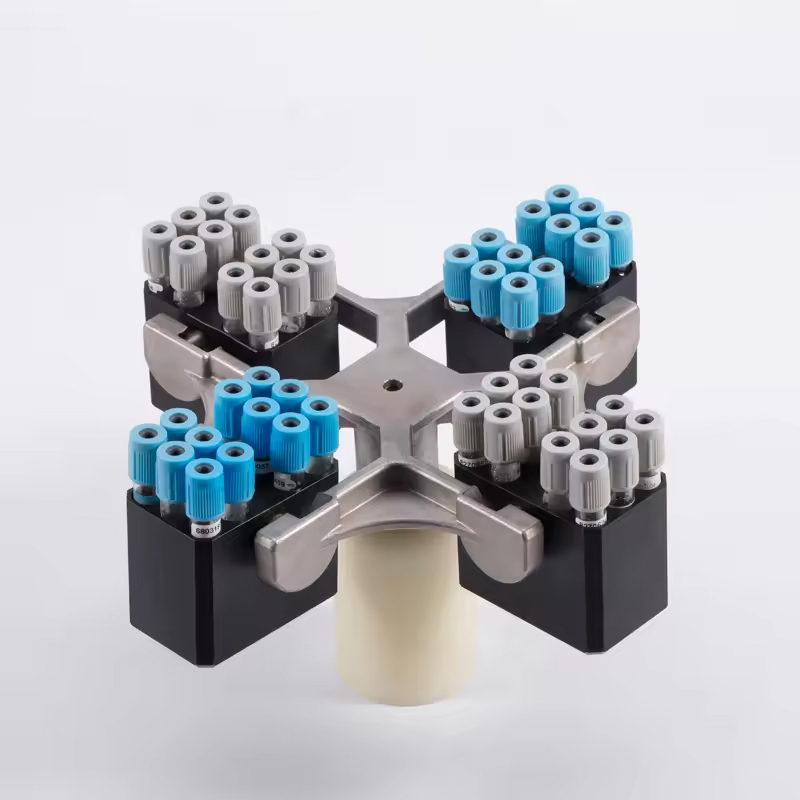

Matched Rotor for TD5A
Order NO. | Rotor Type | Max speed(r/min) | Volume (ml) | Max RCF(*g) |
5A-1 | Swing rotor (round cup) | 4000 | 4×300ml | 3180 |
5A-2 | Swing rotor (square cup) | 4000 | 4×300ml | 3150 |
5A-3
| Swing rotor | 4000 | 4×24×7ml | 3150 |
4000 | 4×24×5ml | 2750 | ||
4000 | 4×18×10ml | 3140 | ||

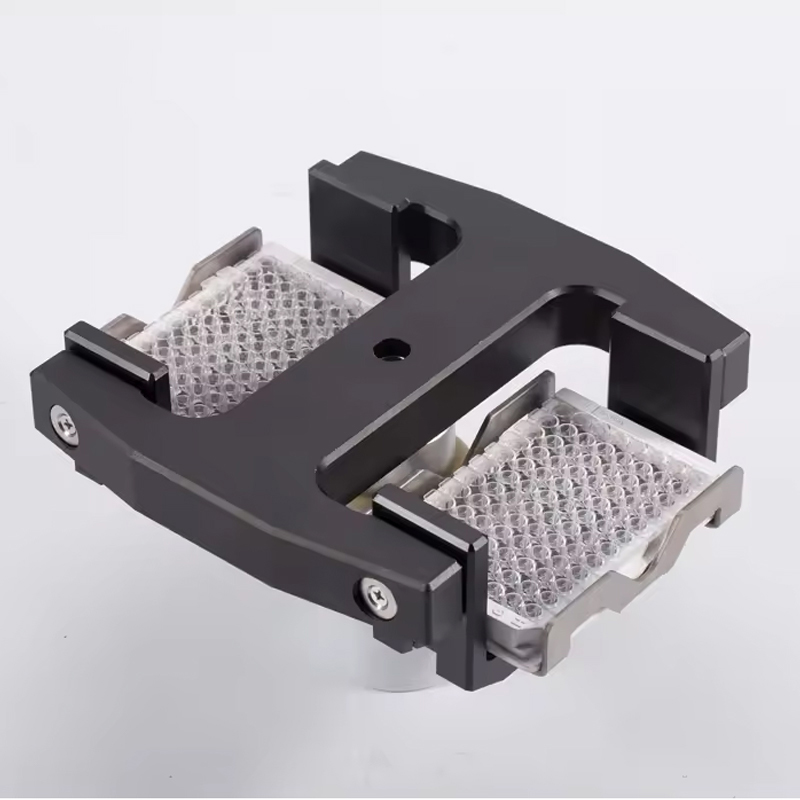

5A-4 | Microplate rotor | 4000 | 2×4×96 well | 2910 |
5A-5 | Microplate rotor | 4000 | 2×4×48 well | 2300 |
5A-6 | Swing rotor | 5000 | 4×1×50ml | 4730 |
5000 | 4×1×100ml | 4730 | ||
5A-7
| Swing rotor | 4000 | 4×2×50ml | 3200 |
4000 | 4×2×100ml | 3020 | ||
4000 | 4×4×15ml | 3200 | ||
4000 | 4×6×15ml | 3200 | ||
4000 | 4×8×15ml | 3200 | ||
4000 | 4×16×5ml vacuum tube | 2520 | ||
4000 | 4×16×7ml vacuum tube | 2880 | ||
4000 | 4×12×10ml vacuum tube | 2790 | ||
4000 | 4×8×10/7/5ml vacuum tube | 2790 | ||
4000 | 4×6×10/7/5ml vacuum tube | 2790 | ||
4000 | 4×4×10/7/5ml vacuum tube | 2790 | ||
5A-8 | Fixed Rotor | 5000 | 6×15ml | 2540 |
5A-9 | Fixed Rotor | 5000 | 12×15ml | 3080 |
5A-10 | Fixed Rotor | 5000 | 24×15ml | 3500 |
5A-11 | Fixed Rotor | 5000 | 30×15ml | 3830 |
5A-12 | Fixed Rotor | 5000 | 4×50ml | 2520 |
5A-13 | Fixed Rotor | 5000 | 6×50ml | 2850 |
5A-14 | Fixed Rotor | 5000 | 12×50ml | 3860 |
5A-15 | Fixed Rotor | 4000 | 24×50ml | 2970 |
5A-16 | Fixed Rotor | 5000 | 4×100ml | 2630 |
5A-17 | Fixed Rotor | 5000 | 6×100ml | 3130 |
5A-18 | Fixed Rotor | 4000 | 12×100ml | 2970 |
