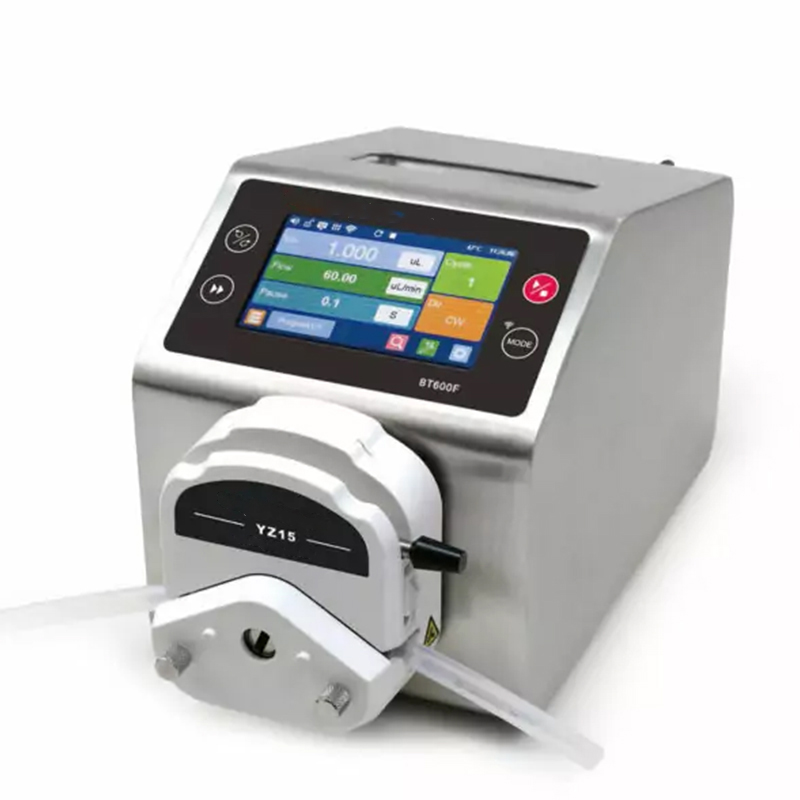

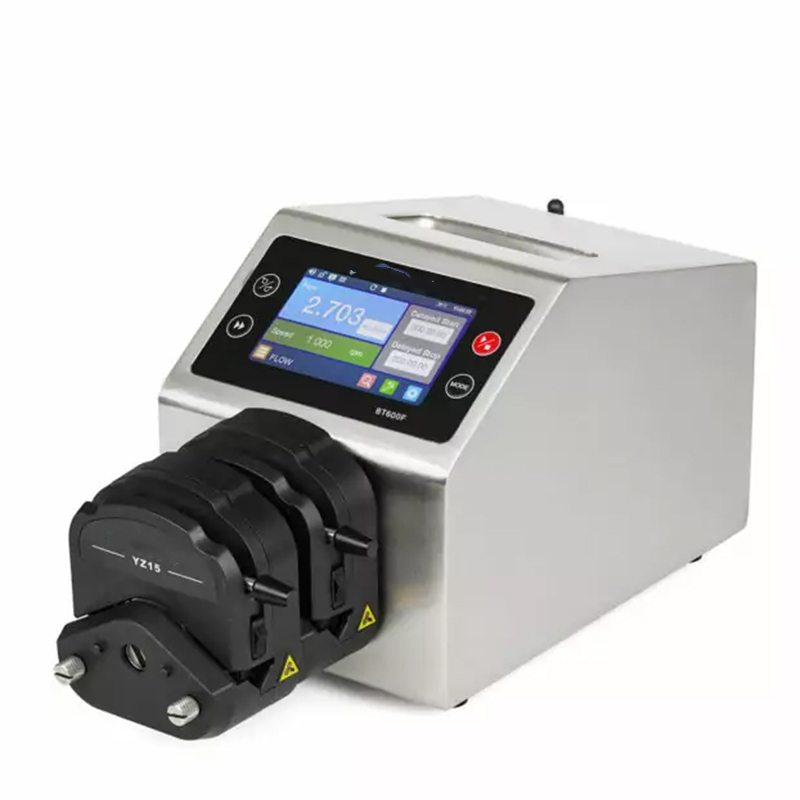

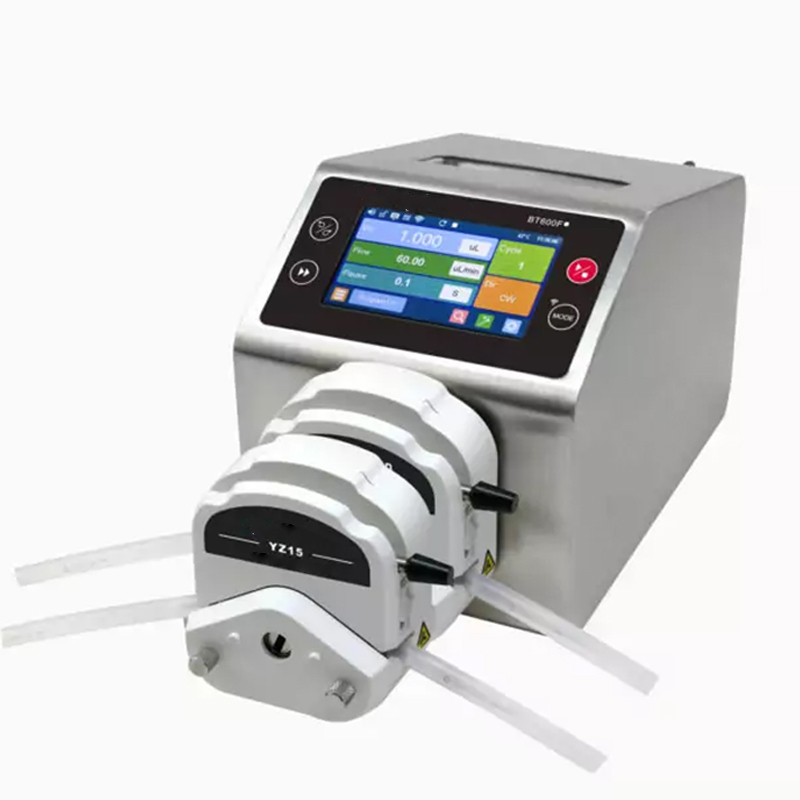

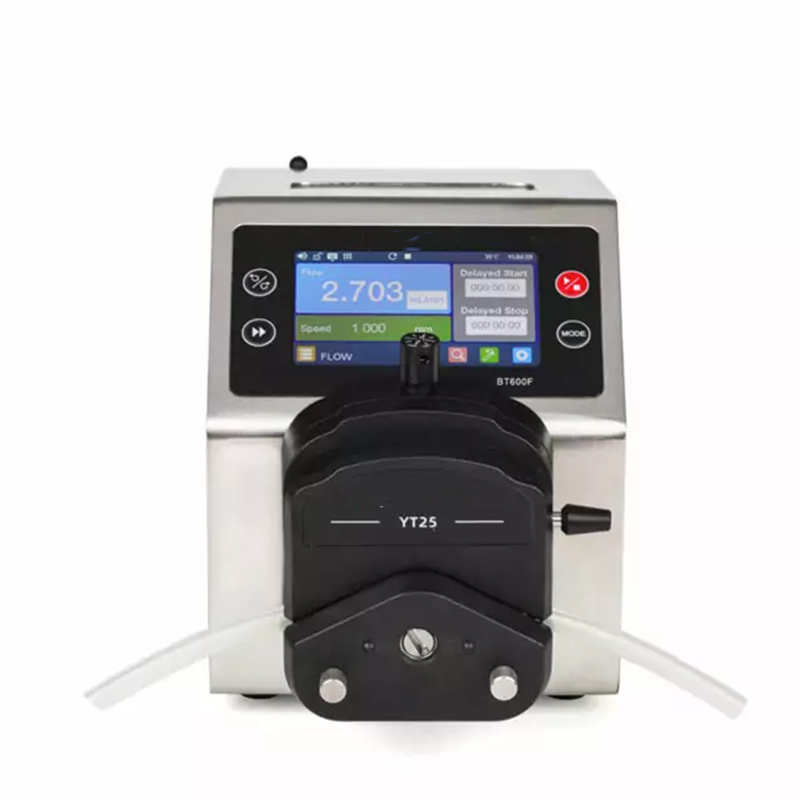

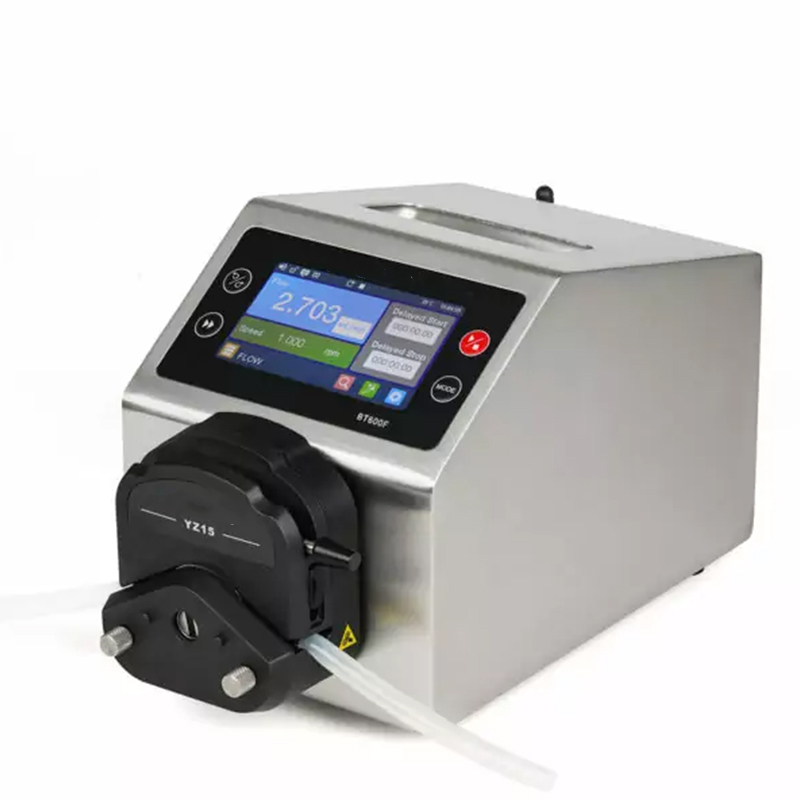

BT600F（NEW） Intelligent Dispensing Peristaltic Pump

BT600F（NEW） Intelligent Dispensing Peristaltic Pump

BT600F intelligent dispensing peristaltic pumps adopt stepper servo motors, 4.3 inch HD LCD touch screen display and operation, multiple dispensing modes are available, Through the LABONE APP software, the pump can be remotely controlled and the running status can be monitored in real time.

Flow: 0.005～3000mL/min
Max: 2 Channels

Category: Dispensing Pumps

Tags: dispensing peristaltic pump, industrial hose pumps, industrial peristaltic pump, LABONE Peristaltic Pump, Peristaltic Pump, peristaltic pump manufacturer

Functions and Features

• 4.3 inch color LCD display, intuitive image.
• Touch screen with key operation, convenient and fast.
• LF-Touch-OS software system, efficient and stable , with good human- computer interaction mode, convenient product customization and upgrade.
• Working modes: flow rate, time dispensing, v olume dispensing, programming dispensing (cycle).
• Five sets of dispensing parameters for volume and time dispensing pre-storage.
• Programming mode supports 30 diff erent quantitative parameter settings for complex control processes.
• Start/stop, reversible direction, full speed, suc tion function, timed start-stop.
• Accurate flow control and displa y, microstep algorithm to ensure the dispensing ac curacy of different settings.
• Wizard flow calibration function, easy to use.
• Unique back suction function to prevent liquid drips.
• Support for serial print p arameters and data.
• Intelligent temperature control function, automatically adjusting the heat according to the environment, so that the device is always in the be st state.
• WIFI control function, remote operation can be realized through the LABONE APP software, and has monit oring functions such as shut down alarm and r eminding to replace the pump tube .
• External analog adjust speed , e xternal control start-stop ,reversible direction, dispensing, e xternal signal ph ysical isolation.
• RS485 communication interface, MODBUS protocol is a vailable, can set up c ommunication parameters, convenient to connect various of control equipments.
• Open multiple c ontrol parameters , suitable f or OEM custom applications.
• The circuit board is sprayed with three anti paint technology to achieve the effect of dustproof and moisture-proof.
• Super anti-interference feature, wide input v oltage range, acceptable for the c omplex power environment.
• Innovative stainless steel housing, eas y to clean, effectively prevent the erosion of various organic solvents.

Specifications

Flow range: 0.005~3000 mL/min

Speed range: 0.1~600 rpm

Speed resolution: 0.1rpm

Speed accuracy: ＜±0.2%

Dispensing volume: 0.001μL～9999L (It is recommended to have a minimum fill of 50μL.)

Dispensing time: 1～999，“0”Infinite cycle

Dispensing interval time: 0.1～999.9 S/Min/H, time unit adjustable

External control signal input: (1) Start/Stop: passive contact, external control input level (5~24V) (2) Forward/Reverse: passive contact, external control input level (5~24V)                                                                (3) Speed Regulation: analog 0~5V, 0~10V, 4~20mA can be set

External control signal output: (1) Start/Stop: Level Signal (following input voltage) (2) Forward/Reverse: Level Signal (following input voltage) (3) Speed Status: Analogue 0~5V

Communication interface: RS485 communication interface, Modbus protocol is available

Power supply: AC100～240V，50Hz/60Hz

Power consumption: <40W

Working environment: Temperature 0 ～ 40℃, relative humidity＜80%

IP grade: IP31

Dimension（L×W×H）: 292×160×183mm

Weight: 4.5 kg

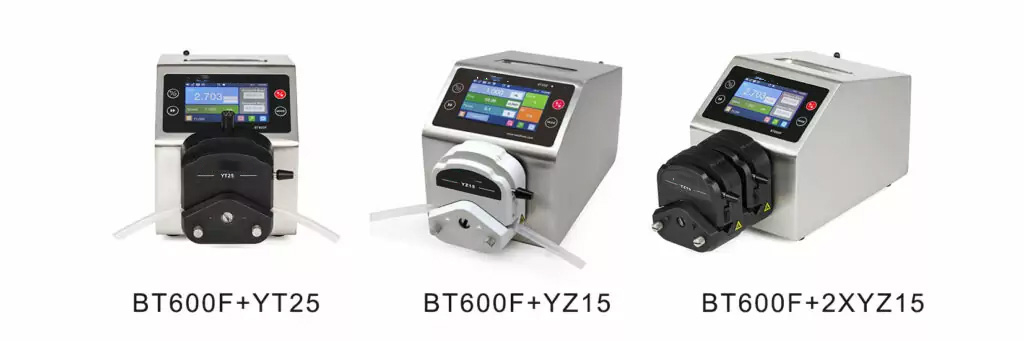

BT600F Suitable Pump Heads and Tubing, Flow parameters

Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.

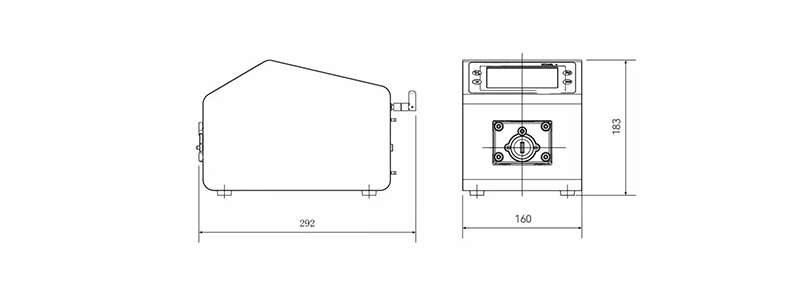

Dimension（mm）

Statement：The final explanation right of above information belongs to LABONE.
