SYD-4929A Dropping Point Tester

Summary The instrument is designed and made as per the national standard of People’s Republic of China GB/T 4929 Lubricating grease- Determination of Dropping Point and ASTM D566 Standard Test Method for Dropping Point of Lubricating Grease.

Send request

Ask for price

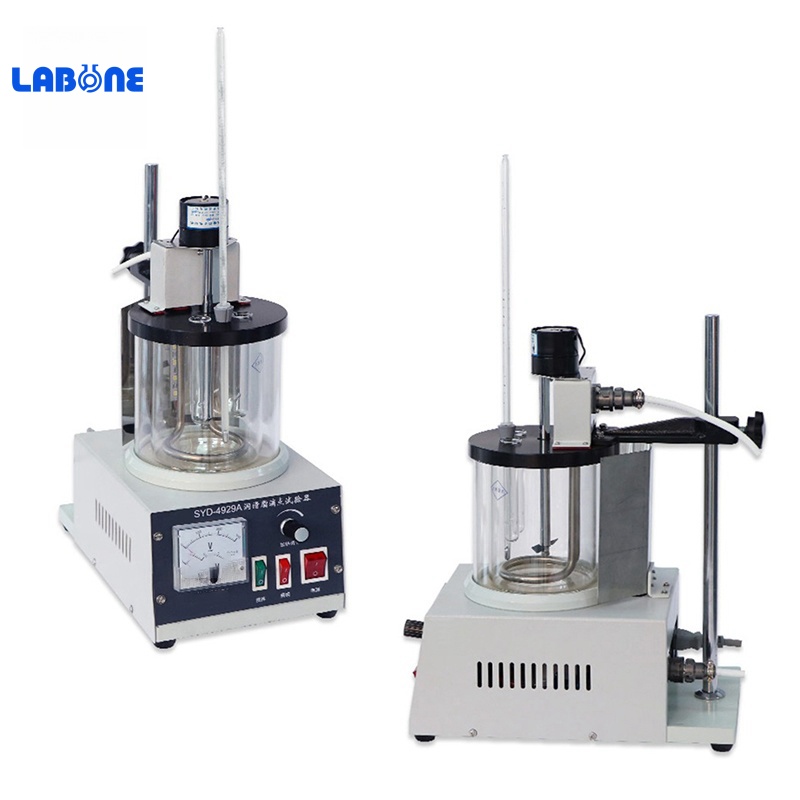

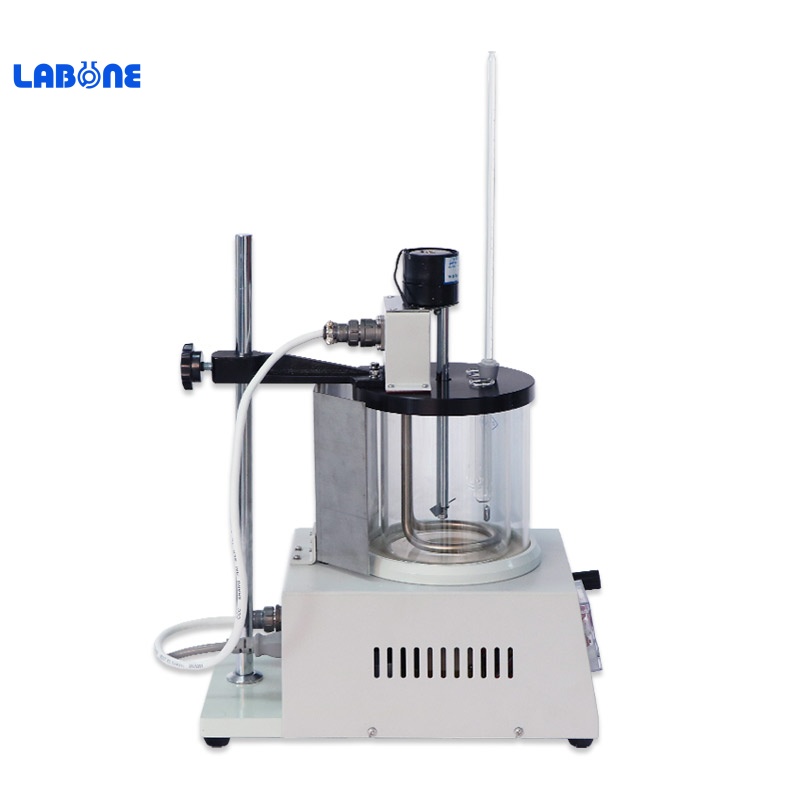

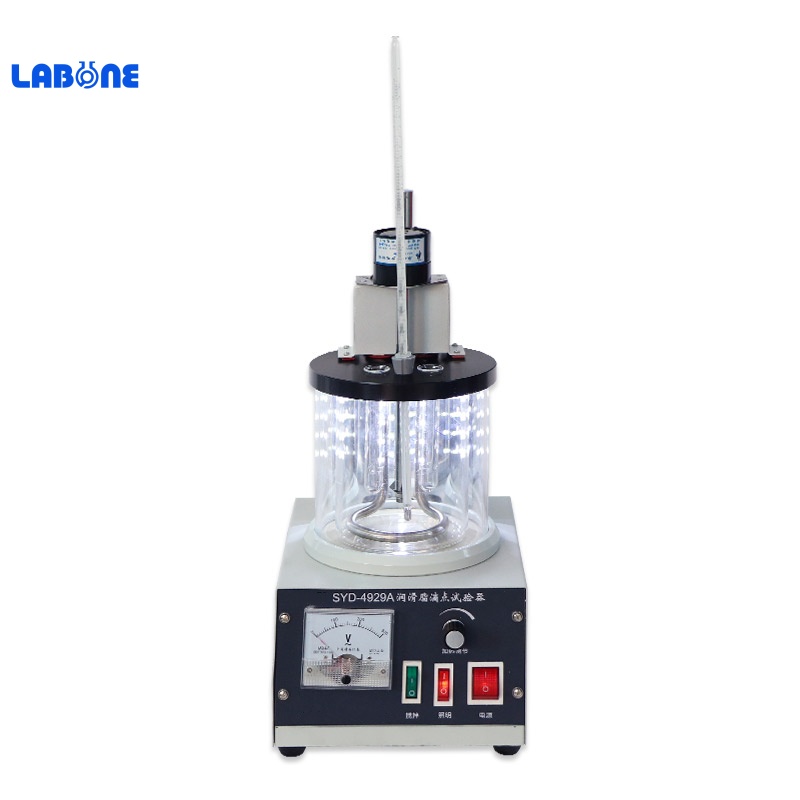

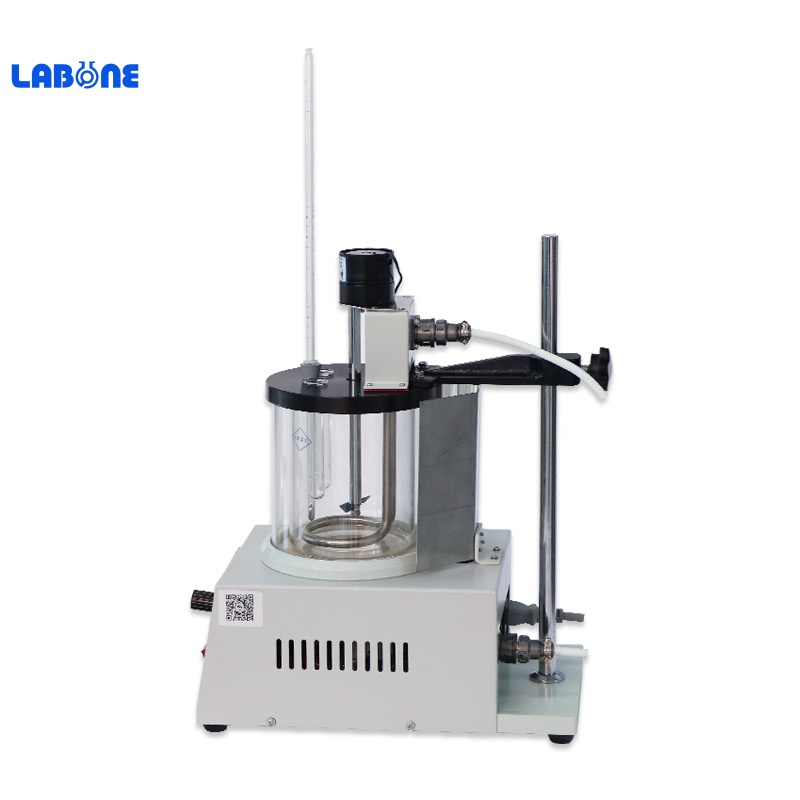

SYD-4929A Dropping Point Tester(Oil bath)

Summary
The instrument is designed and made as per the national standard of People’s Republic of China GB/T 4929 Lubricating grease- Determination of Dropping Point and ASTM D566 Standard Test Method for Dropping Point of Lubricating Grease.

I. Main technical features

1. The oil bath is composed of heat resistant beaker, heater and electric motor. The heating power can be adjusted continuously. The temperature in oil bath is uniform.。
2. Desktop structure. Easy to operate

II. Main technical specifications

Power Supply	AC(220±10%)V 50Hz
Total Consumption	≤900W
Oil Bath	600ml Beaker
Grease Cup	It is made of chrome plated brass, inner diameter: 9.92mm, oil dripping hole:2.8mm, cup height: 12mm
Test Tube	Heat resistant borosilicate glass tube with edge, inner diameter: 11.1 mm to 12.7 mm, and there are three grooves on the circumference 19 mm away from the bottom to support the grease cup
Thermometer	Temperature range: (- 5 ~ 300) ℃; division value: 1 ℃
Stirring motor	60 R / min
Working environment	Temperature：(15～35)℃; Relative humidity：≤85%
Dimension	350 mm×180 mm×410 mm
Net Weight	8 kg
