TP-2C2D Total Phosphorus Analyzer

TP-2C/2D Total Phosphorus Analyzer

【Product Overview】 TP-2C/2D Total Phosphorus Analyzer, featuring an imported high-performance, long-life, high-brightness light source; available in benchtop and portable versions, with a color touchscreen.

【Applications】 Widely applicable for the determination of organic and inorganic phosphorus in surface water, sewage, and industrial wastewater.

Total Phosphorus Analyzer TP-2C/2D

Matching DIS-16B (or optional DIS-20B/25B/36B) digester;

Features printer and USB data upload;

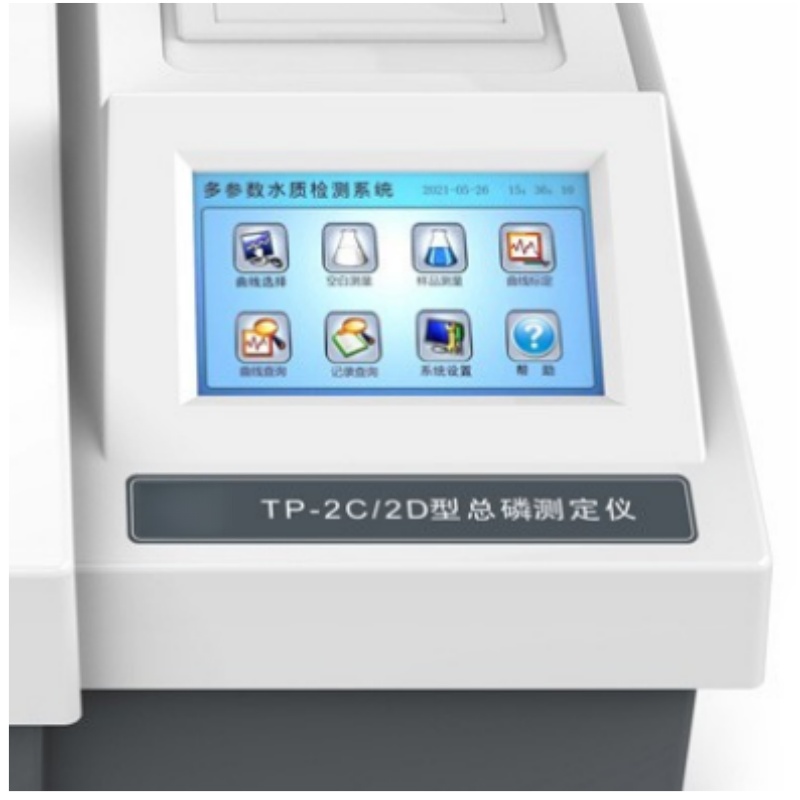

Equipped with a 5-inch large color touchscreen, displaying in both Chinese and English;

Features one-key recovery function;

Used for wastewater testing.

Instrument Features：

● The measuring instrument and digester are separate, ensuring the stability of the optical system.

● The measuring instrument uses a cold light source and a narrow-band interference optical system, providing excellent optical stability.

● Both the measuring instrument and digester feature color touchscreens with a user-friendly interface displaying both Chinese and English. Operation is simple and time-saving. Digestion and colorimetric analysis do not require tube replacement.

● The digester features multi-point error-free calibration, achieving zero-error measurement at set points and completely eliminating errors caused by nonlinear temperature sensors in common digesters on the market.

● The digester has a timer reminder and can be set to automatically shut off after digestion. The instrument has secondary protection functions; when the digester temperature exceeds 200 degrees Celsius, it will automatically cut off the power to ensure the safety of the digestion process.

● It can store 100 standard curves and 1000 measurement values, which are retained even after power failure. (Type D contains 3500 curves and 100,000 data points)

● Curve query capability: In addition to querying curve equations, it also allows querying the standard values and corresponding absorbance of each reference material used in calibration, as well as the calibration time and calibrator number, completely reproducing the calibration state.

● Printing function: Test records can be printed individually or page by page.

● USB interface for computer connection.

● One-key recovery function to prevent accidental loss of curves and data.

● Built-in calibration function: Self-calibration can be performed during operation, effectively eliminating drift errors caused by long-term use.

● Optimized and upgraded optical system (Type D): The system is more stable during measurement, with better accuracy and repeatability.

Configuration List：
