CHCM-101 CODMn Analyzer Applicable to the Measurement of Surface Water, Tap Water, Etc. 0-10mg/L with Water Bath

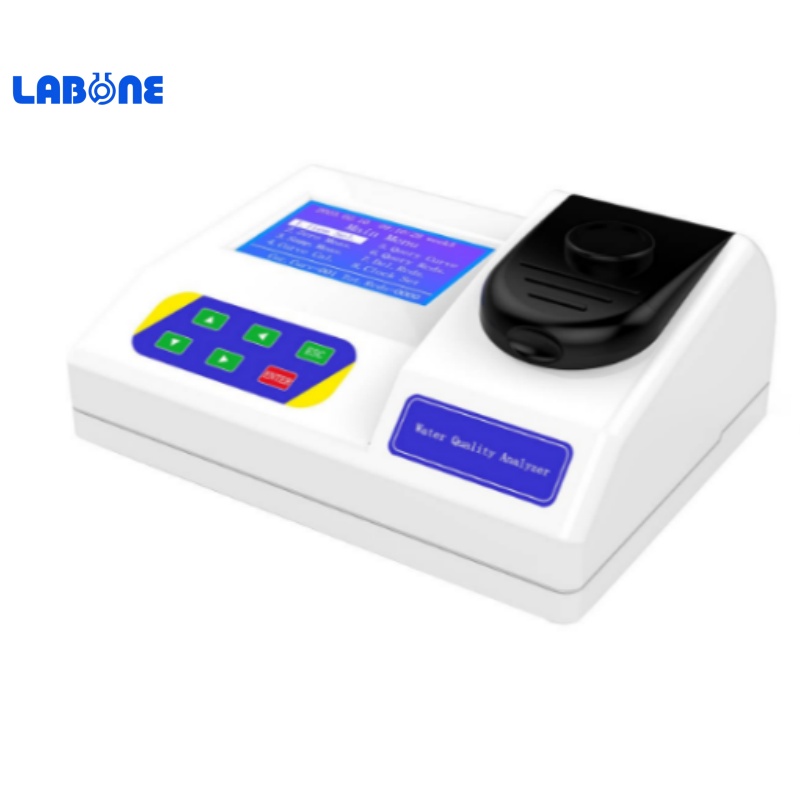

CHCM-101 CODMn AnalyzerProduct OverviewProduct Overview:CHCM-101 CODMn analyzer, developed and produced by Shenchanghong

CHCM-101 CODMn Analyzer


Product Overview

Product Overview:

CHCM-101 CODMn analyzer, developed and produced by Shenchanghong, is a rapid, realiable analyzer with high accurate.



Application Area:

Applicable to the measurement of surface water, tap water, etc.

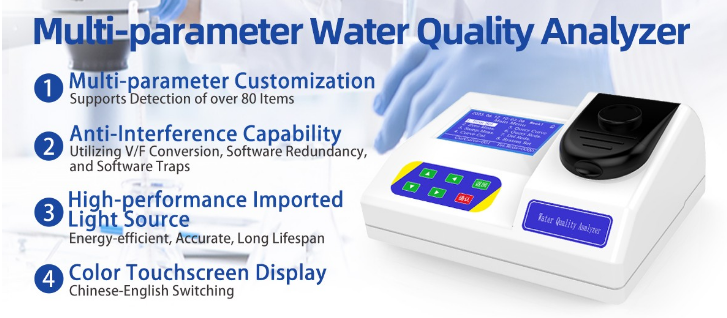

Functional Features:

1.Utilizes cold light and monochromatic light sources, ensuring exceptional optical stability without interference from various light sources.

2.Simple operation with high measurement accuracy, meeting the latest discharge standards.

3.Large LCD screen; all settings, calibration, and record operations are performed within the integrated environment.

4.Strong anti-interference capabilities using V/F conversion, software redundancy, and software traps.

5.Can store working curves and historical records; users can calibrate and store their own curves, with data retention even during power outages.

6.Can store 150 factory curves and 1000 records, with data retention even when powered off.

7.The main unit casing is made of post-mold ABS material, offering excellent corrosion resistance.


Technical Indicators

Measurement range

CODMn: 0.00~10.00mg/L

Measuring accuracy

0.01 mg/L

Indication error

≤±4%

Repeatability

≤±3%

Minimum Resolution

0.01 mg/L

Digestion Temperature

100℃±1.5℃

Digestion Time

30 min

Optical Stability

≤0.002 A/20 min

Dimension

266 mmx220 mmx130 mm

Weight

1 kg
