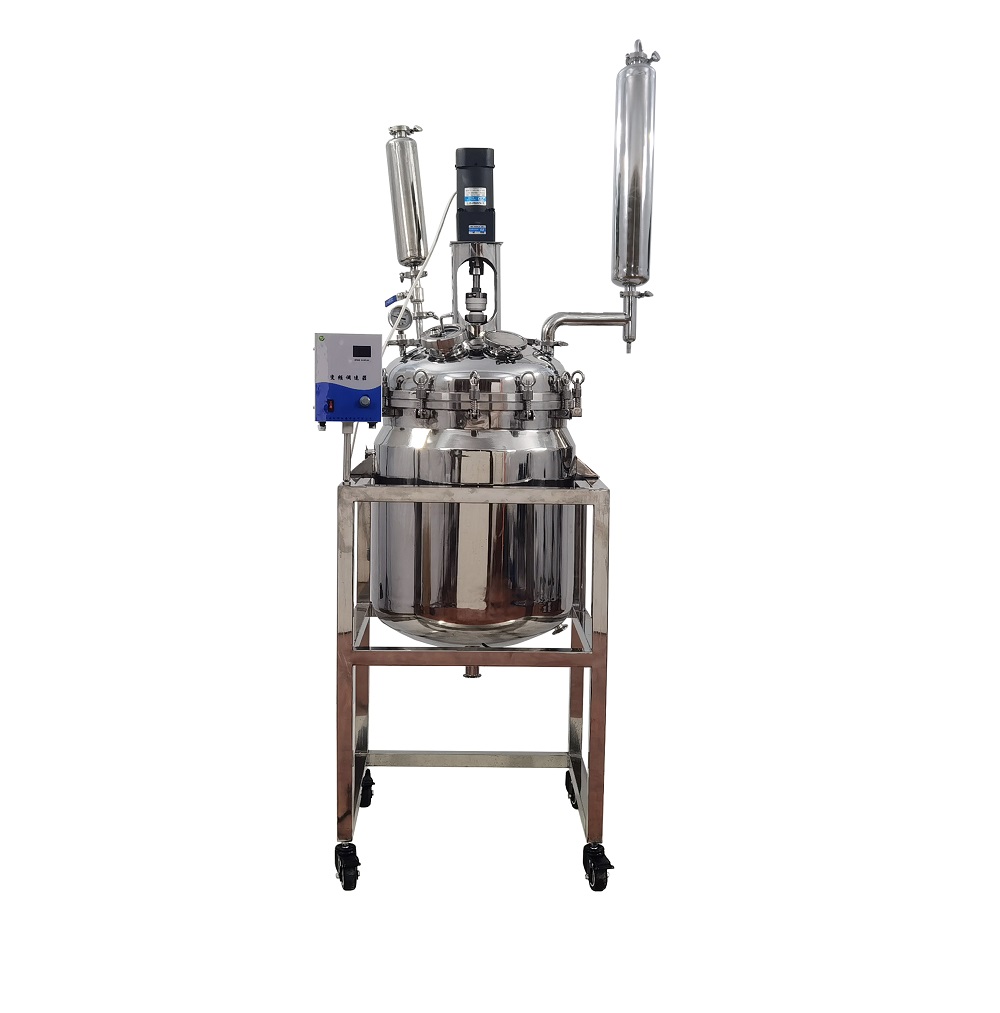

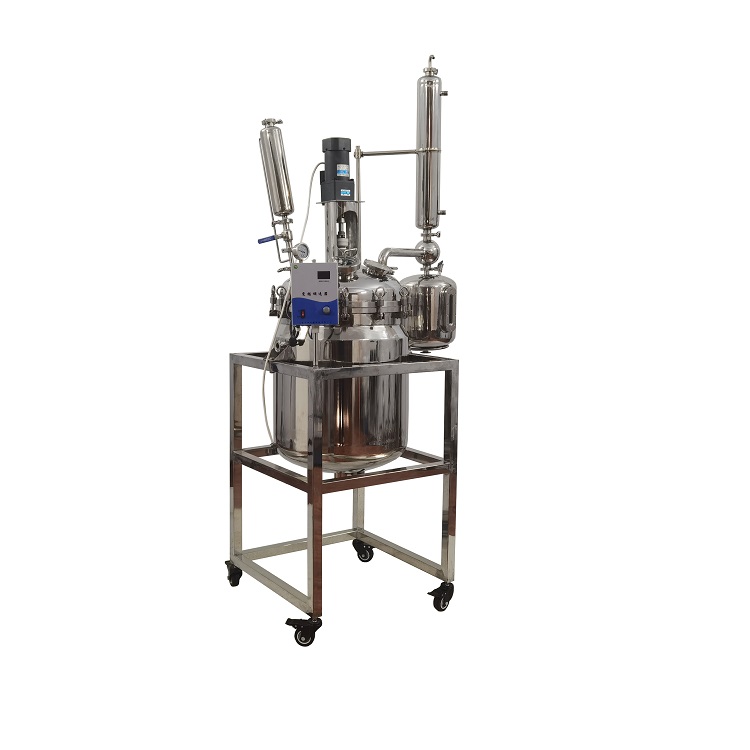

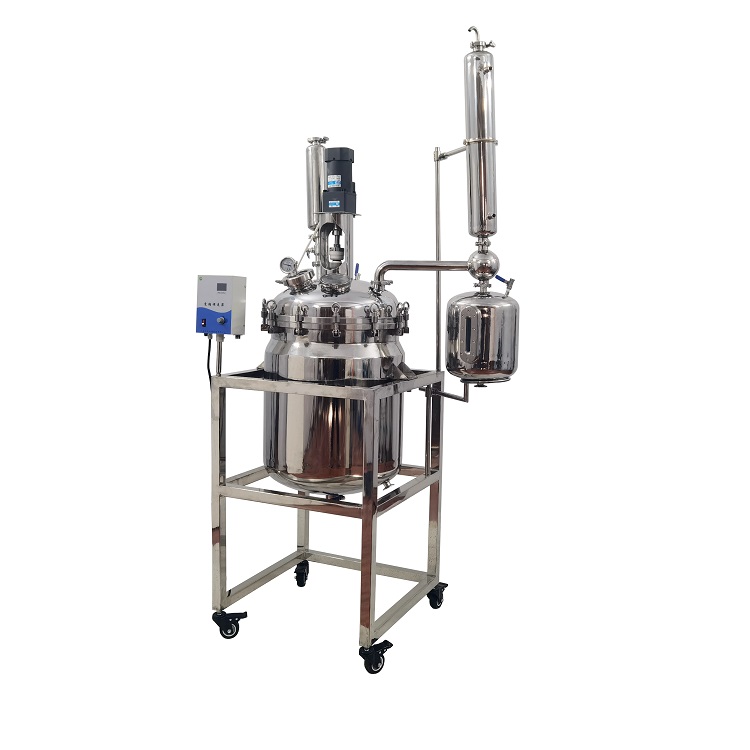

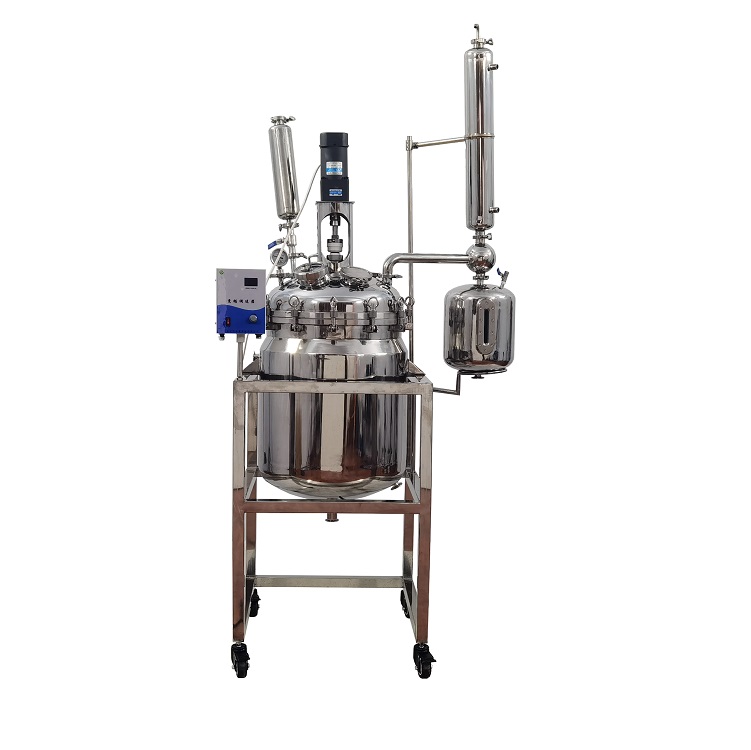

SF-100L 100L Double-layer Stainless Steel Reactor

SF-100L 100L Double-layer Stainless Steel Reactor

The double-layer stainless steel reactor is designed with double-layer stainless steel. The inner layer can be put into the reaction solvent for stirring reaction, and the inter-layer can be connected with different cold and heat sources (refrigerating liquid, hot water or hot oil) for cyclic heating or cooling reaction. Under the condition of set constant temperature, the stirring reaction can be carried out under normal pressure or negative pressure according to the use requirements in the closed stainless steel reactor, and the reflux and distillation of the reaction solution can be done. It is an ideal pilot test and production equipment for modern fine chemical plants, biopharmaceuticals and new material synthesis.

SF-100L 100L Double-layer Stainless Steel Reactor

Features:

1. Frequency conversion speed regulation, AC induction motor, constant speed, no brush, no spark, safe and stable, suitable for continuous working.

2. The whole set of instrument is made of SUS316L/SUS304 stainless steel, which has good chemical and physical properties.

3. The inter-layer interface can be connected with hot oil for heating reaction after circulation, and can be connected with refrigerated liquid for low-temperature reaction.

4. It can react at room temperature, and the reaction heat can be quickly taken away by running tap water.

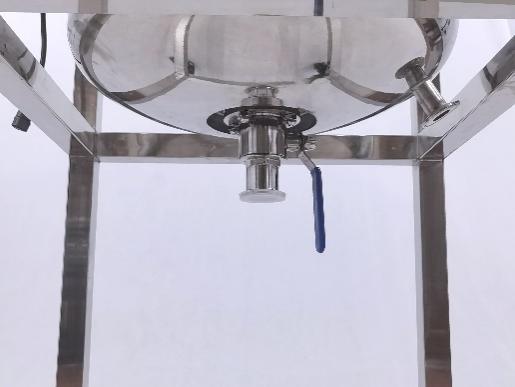

5. Stainless steel ball valve is used for the lower discharge port. There is no dead angle in the container, and it can be disassembled for easy discharge of solid materials.

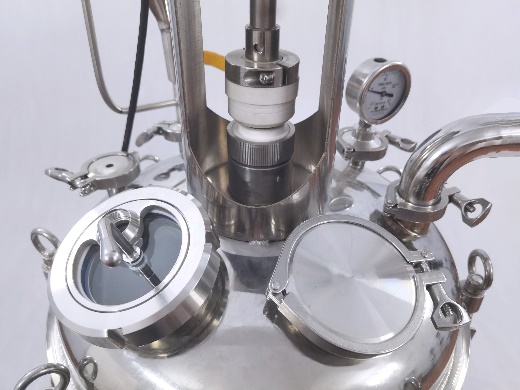

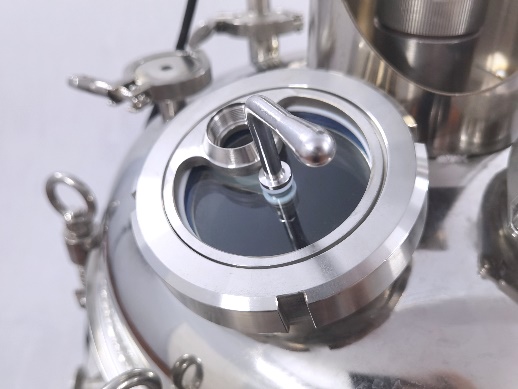

6. Eight-port reactor cover with extra-large port design is easy to clean, and the standard port socket can be optionally assembled with reflux and distillation synthesis devices.
