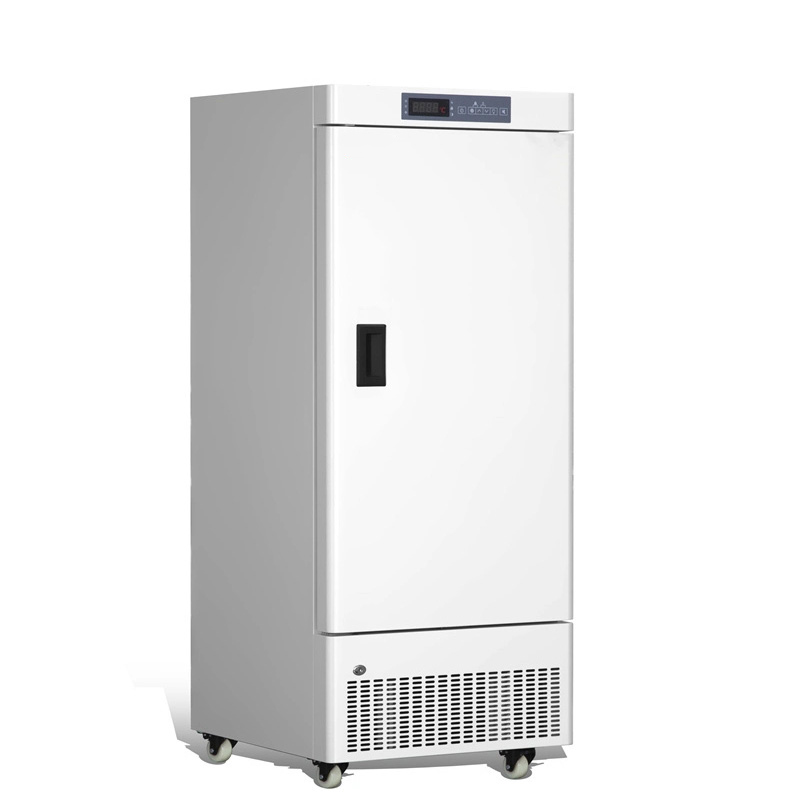

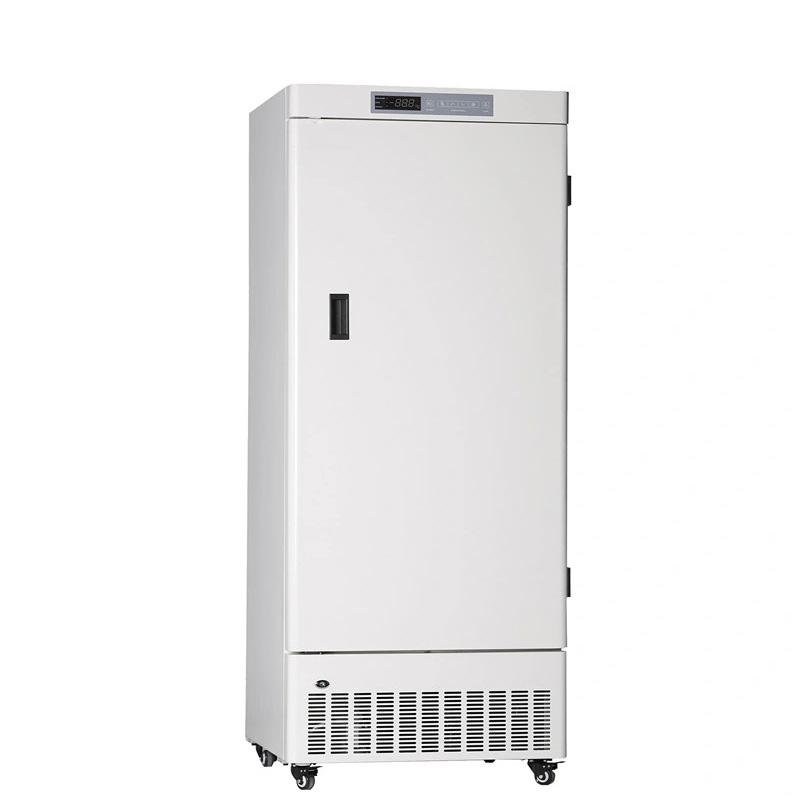

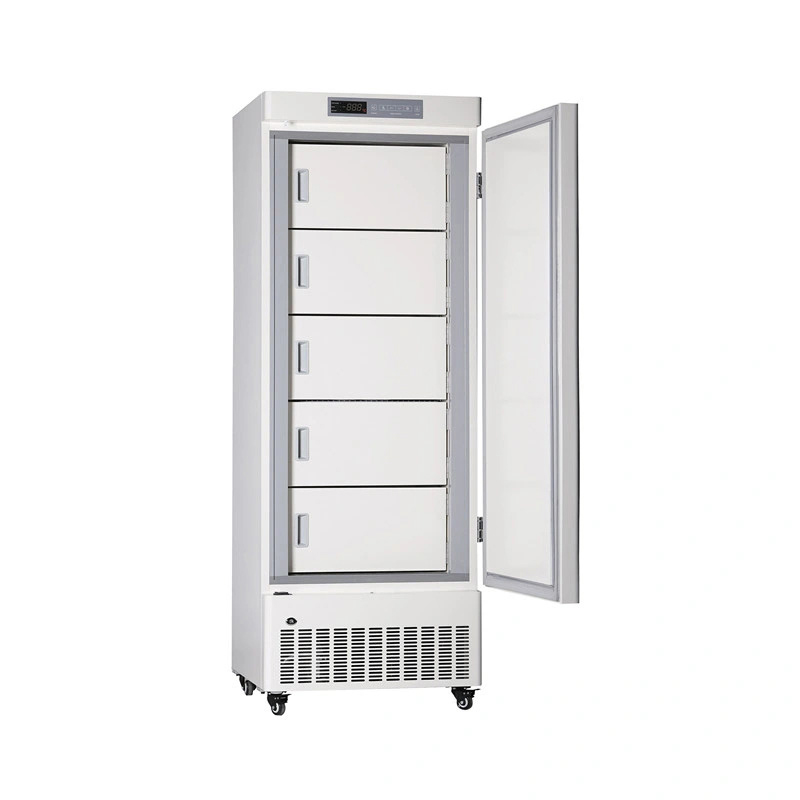

MDF-40V328E -40℃ BIOMEDICAL DEEP FREEZER
MDF-40V328E (328L Medical Deep Freezer) is widely used in hospitals and laboratories. Designed to store vaccines, blood plasma and many other biological materials. Installations can be found in research institutions and clinical sites in the life science
MDF-40V328E -40℃ BIOMEDICAL DEEP FREEZER
MDF-40V328E
MDF-40V328E (328L Medical Deep Freezer) is widely used in hospitals and laboratories. Designed to store vaccines, blood plasma and many other biological materials. Installations can be found in research institutions and clinical sites in the life science, pharma, biotech, medical and electronics sectors.

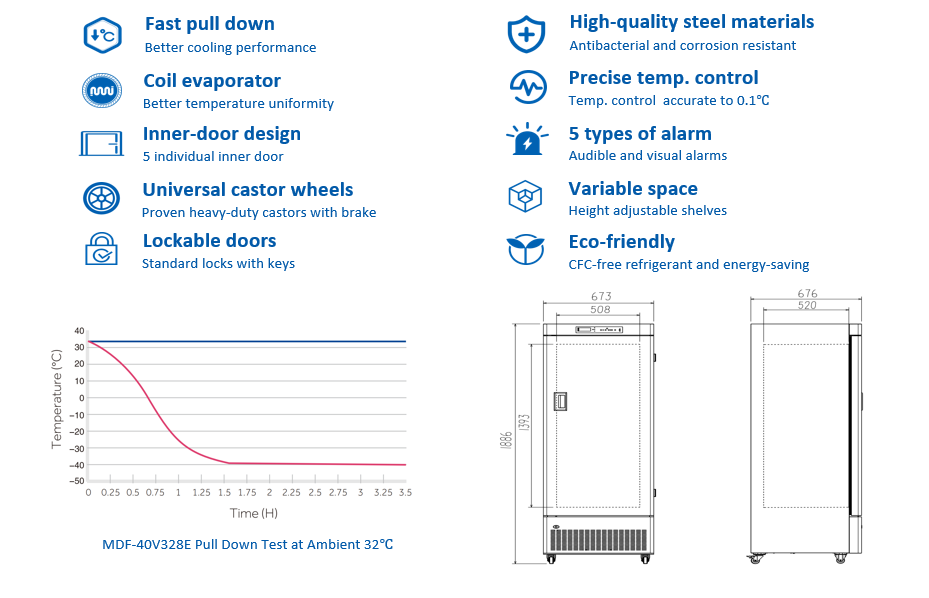

FEATURERS

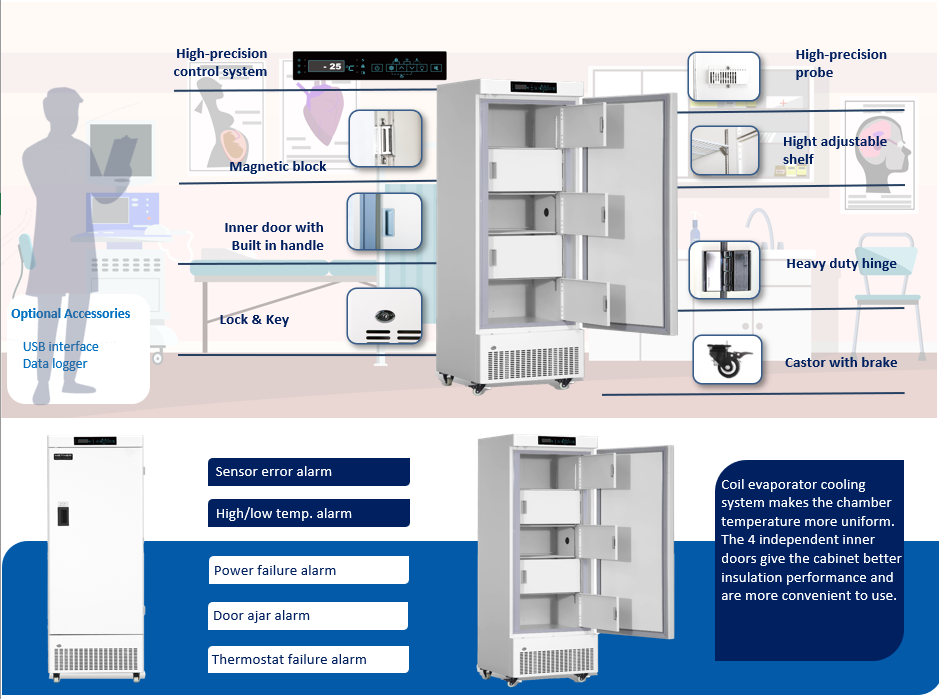

STRUCTURES
PARAMETERS
| Performance | Refrigeration System | Alarms | |||
| Cooling method | Direct Cooling | Refrigerant | R290 | High/low temperature | Y |
| Defrost | Manual | Temp. controller | Microprocessor | Power failure | Y |

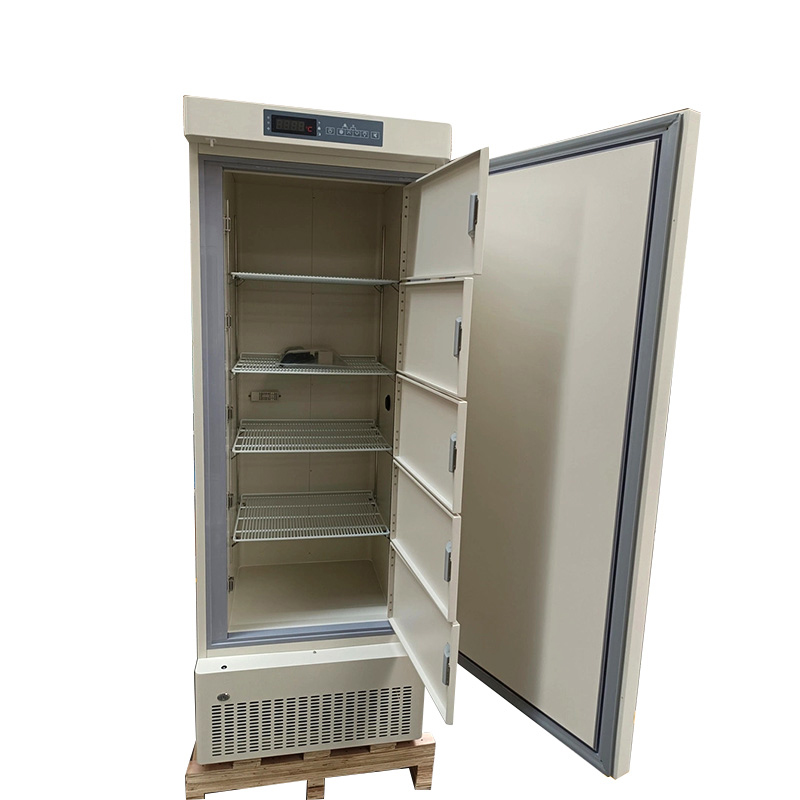

| Shelf/drawer | Shelves/5 | Sensor | NTC | Sensor error | Y |

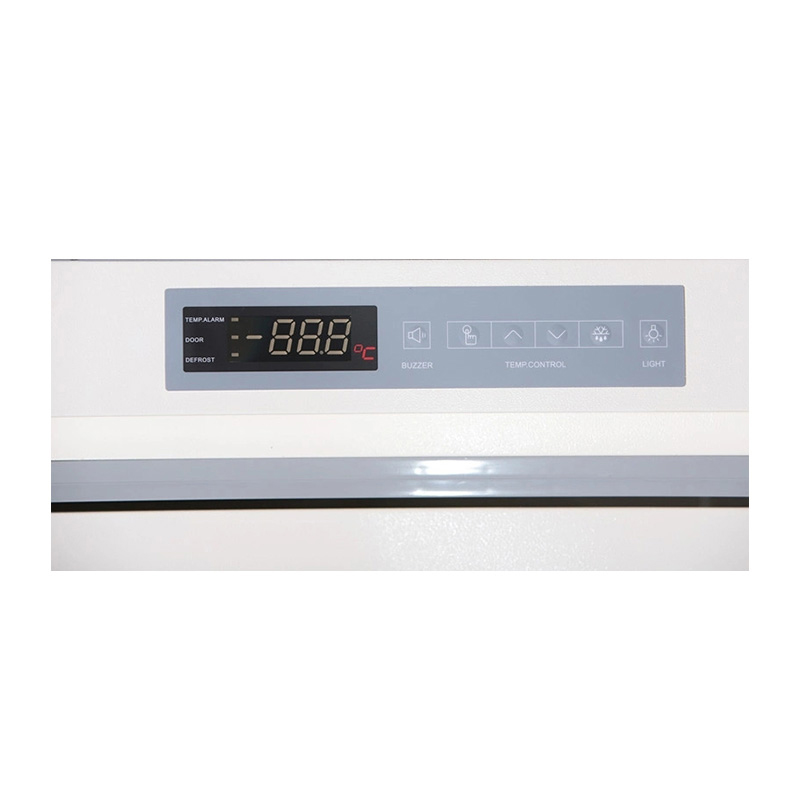

| Temperature range | -20℃～-40℃ | Display | Digital display | Controller failure | Y |
| Ambient temperature | 10~32℃ | External material | SPCC sprayed steel | Door ajar | Y |
| Noise（db) | 48 | Compressor QTY | 1 | Power failure backup | 8 hours |
| Electrical Data | Dimensions | Other | |||
| Voltage frequency( V/Hz) | 220V 50Hz/60Hz | Package size(W*D*H)(mm) | 770*770*2040 | Inner door Qty | 5 |
| Power（W) | 300W | Capacity（L/cu.ft) | 328/11.6 | USB/Remote alarm port | Optional |
| Current（A) | 1.6A | Exterior size(W*D*H)(mm) | 673*676*1886 | Access port QTY/Dia. | 1/25mm |
| Power consumption | 4kWh/24h | Interior size(W*D*H)(mm) | 508*455*1393 | Internal material | SPCC sprayed steel |
