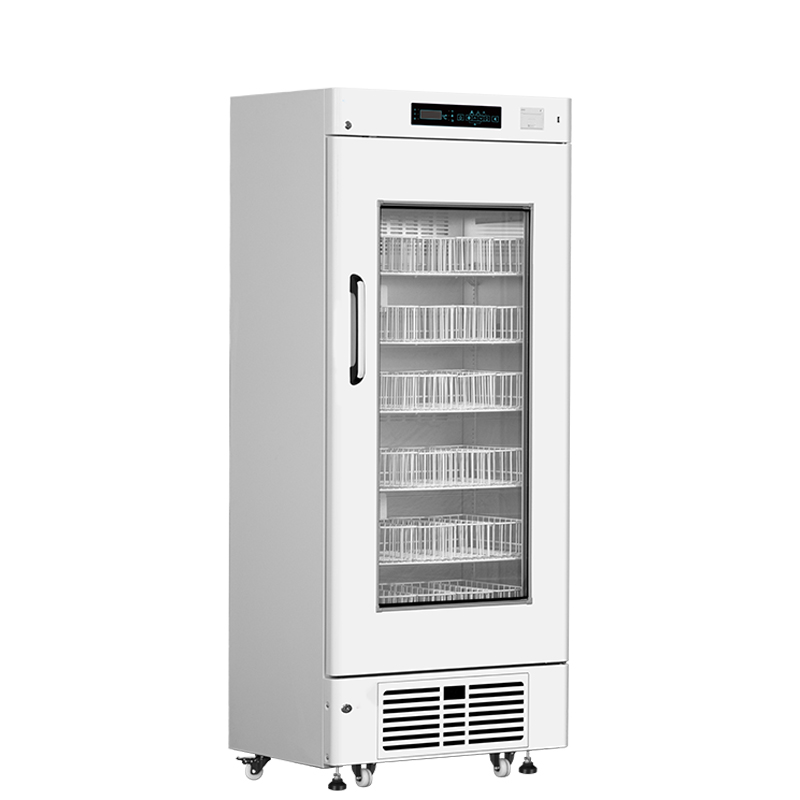

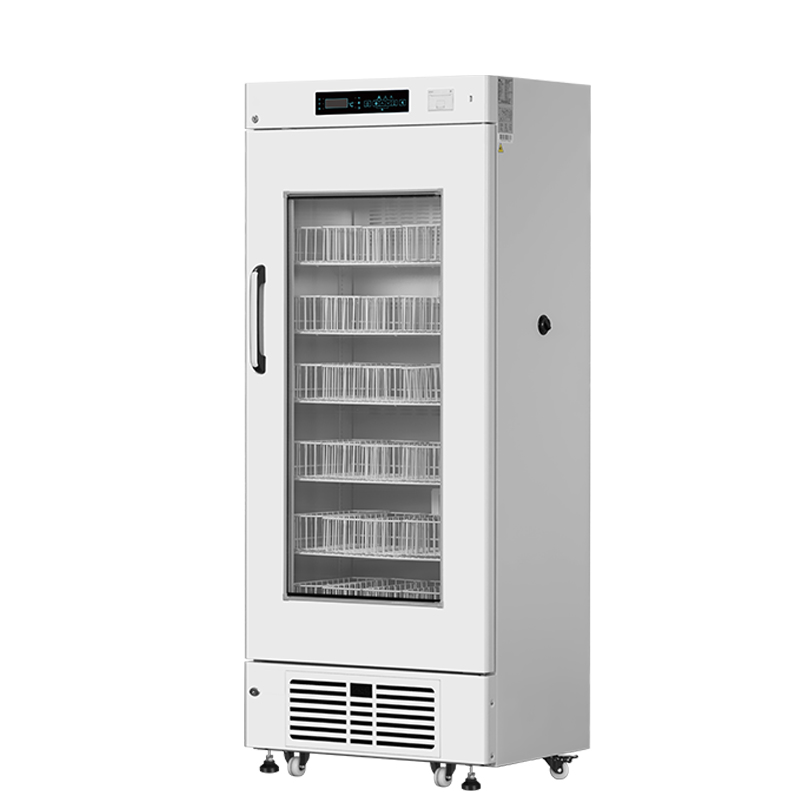

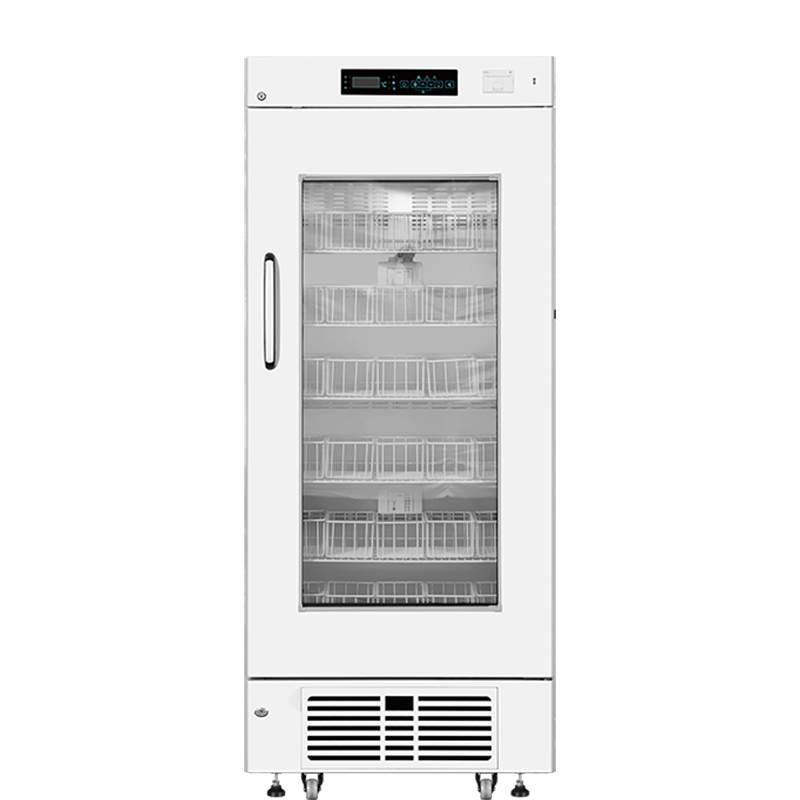

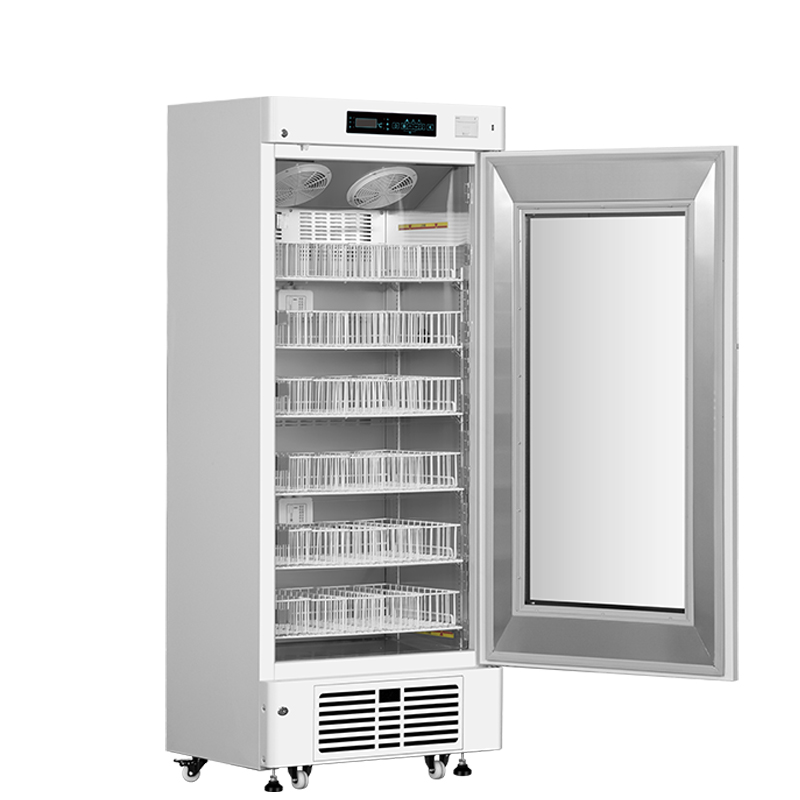

MBC-4V368 4℃ Blood Bank Refrigerator
MBC-4V368 Blood bank refrigerator (368 liter) is an essential piece of equipment in the immunohematology department and provides safe and convenient storage of whole blood, blood components (e.g.,blood cells, plasma), and reagents. It ensures freshness and integrity of blood and blood components. MBC-4V368 can store a total of 360 units of 450ml blood bags.

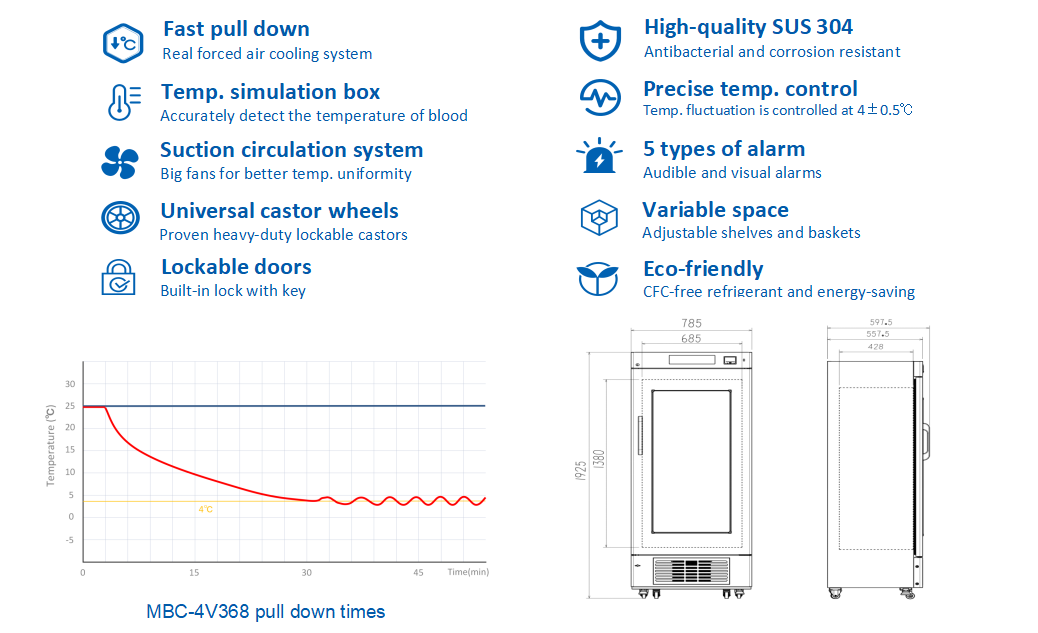

FEATURERS

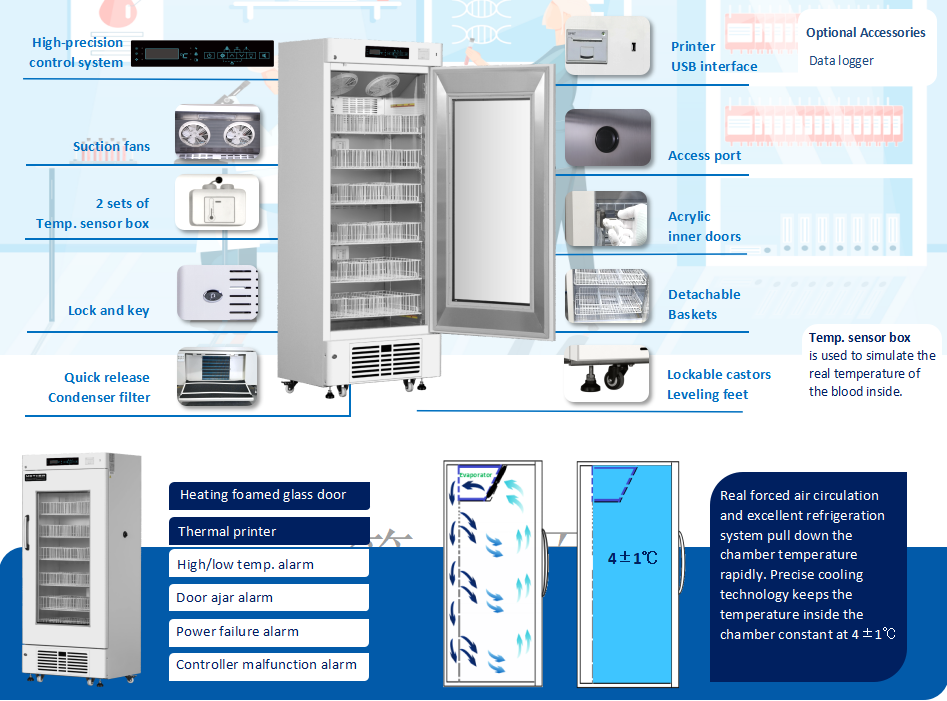

STRUCTURES
PARAMETERS
| Performance | Refrigeration System | Alarms | |||
| Cooling method | Forced Air Cooling | Refrigerant | R134a | High/low temperature | Y |
| Defrost | Auto | Temp. controller | Microprocessor | Power failure | Y |
| Shelf/Baskets | 6/30 | Sensor | NTC | Thermostat failure | Y |
| Temperature range | 4±1℃ | Display | Digital display | Controller malfunction | Y |
| Ambient temperature | 10~32℃ | External material | SPCC sprayed steel | Door ajar | Y |
| NT./GT.（kg) | 128/135 | Capacity (L/cu.ft) | 368/12.98 | Backup battery for alarms | 72 hrs |
| Electrical Data | Dimensions | Other | |||
| Voltage frequency (V/Hz) | 220V 50Hz/110V 60Hz | Package size(W*D*H)(mm) | 890*650*2100 | Door Type | Heating foamed glass door |
| Power (W) | 355 | Exterior size(W*D*H)(mm) | 785*565*1920 | Inside Door | 6 |
| Current (A) | 2.3 | Interior size(W*D*H)(mm) | 685*429*1380 | USB/Remote alarm port | Optional |
| Power consumption | 4.5 kWh/24h | Bloodbags(200ml) | 540 bags | Access port QTY/Dia. | 1/25mm |
| Compressor QTY | 1 EMBRACO | Bloodbags(450ml) | 360 bags | Internal material | SUS 304 |
