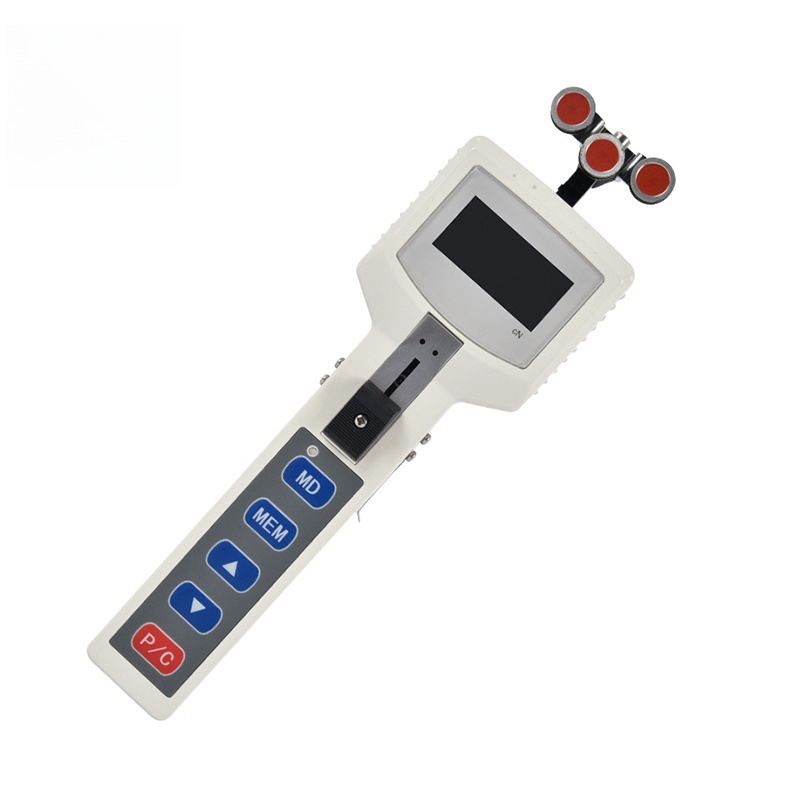

AZSH handheld tensiometer

Handheld digital tension meter is a portable electronic digital measuring instrument that can measure the tension of filamentous and linear materials. It is widely used in wire and cable, textile and chemical fiber, metal wire, carbon fiber and other indu

Send request

Ask for price

AZSH handheld tensiometer

Overview

Features

1.The three working modes of real-time, hold, and peak can be switched at will.

2. cN、Gf、OZ、Kgf、N、Lb Six units can be set.

3.Accuracy is Full scale2.5%。

4.Accuratemeasuring10The tension of different materials.

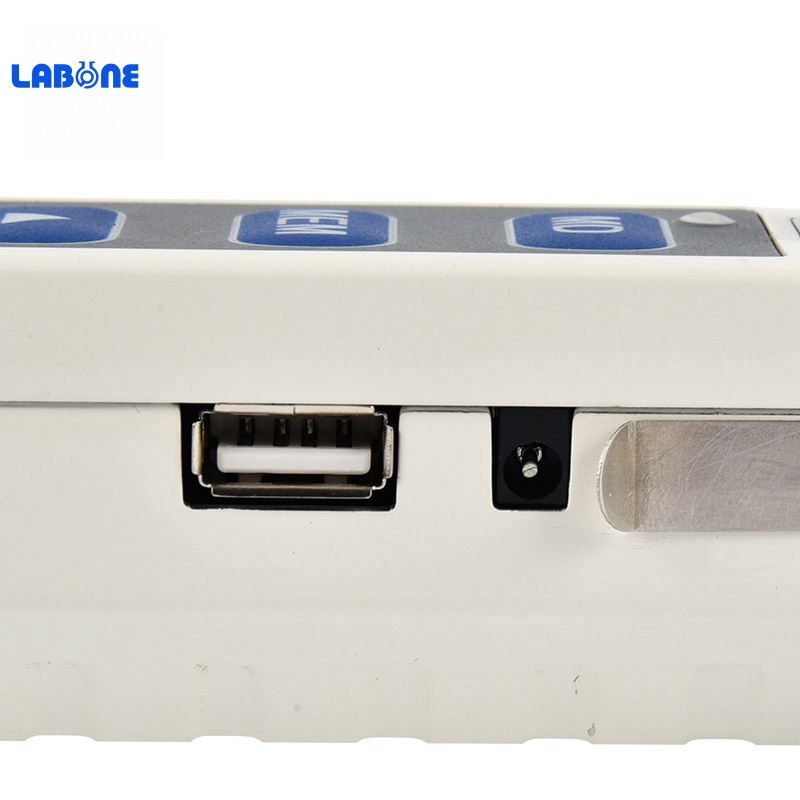

5.band USB Communication function。

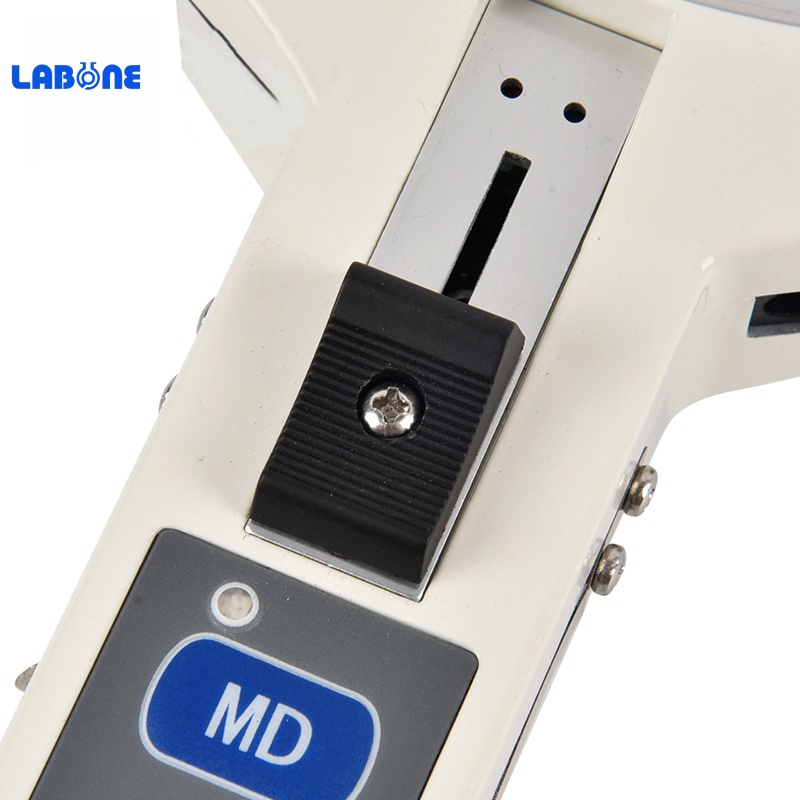

6.With thickness adjustment.

7.Easy to store,Storable41Group data.

Product model specifications

model	AZSH-200	AZSH-500	AZSH-1000	AZSH-2000	AZSH-2500	AZSH-5000	AZSH-10K
Tension range	4~200.0(cN)	10~500.0(cN)	20~1000(cN)	40~2000(cN)	50~2500(cN)	100~5000(cN)	2.00~10.00daN
Measuring head width (mm)	65	65	65	65	116	116	116
calibration materials Textile PA monofilament	Φ0.12mm	Φ0.12~0.20mm	Φ0.20~0.40mm	Φ0.40~0.70mm	Φ0.40~0.70mm	Φ0.60~1.20mm	Φ0.80~1.40mm
Size (mm)	27011855
net weight(g)	approximately640g
power supply	3.7Vlithium battery*2

Description:

*Depending on the model, the width of the lead frame and the distance between the outside of the two guide wheels are also different.

**: The company's calibration materials apply to95%Tension measurement.PA=Polyamide monofilament, if the diameter, hardness, shape, etc. of the material to be tested are significantly different from the calibration materials of the company, it is recommended that the customer provide5The metered material is calibrated.

International tension unit:

1CN=1.02g=0.01N；

1daN=1.02kg=10N。
