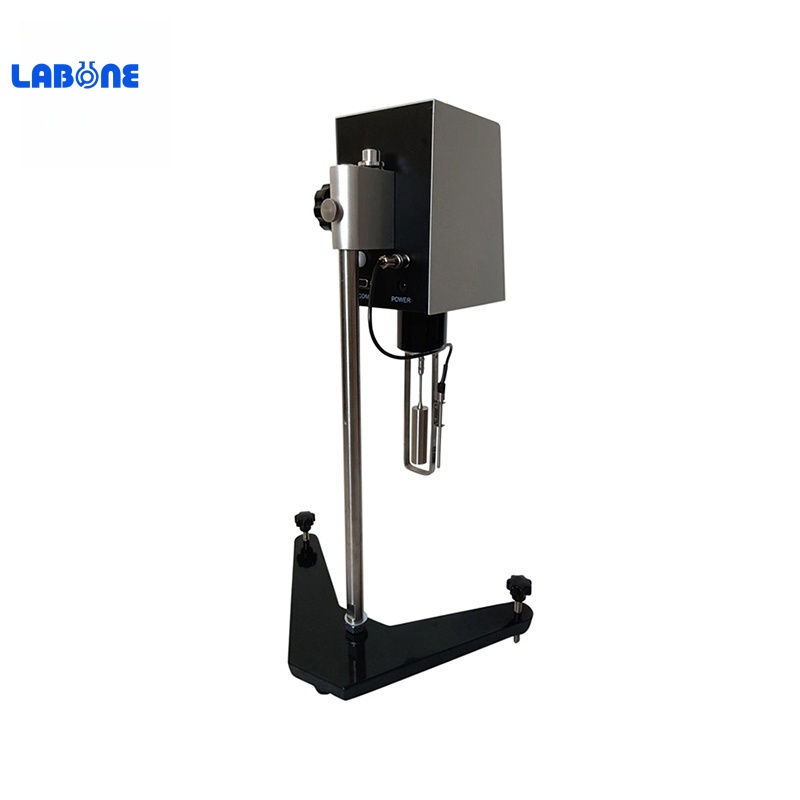

NDJ-79B Rotational Viscometer
Summary
This viscometer is the upgraded instrument of NDJ-79 rotational viscometer. It can be used to determine absolute viscosity of Newtonian liquids and apparent viscosity of Non-Newtonian liquids.

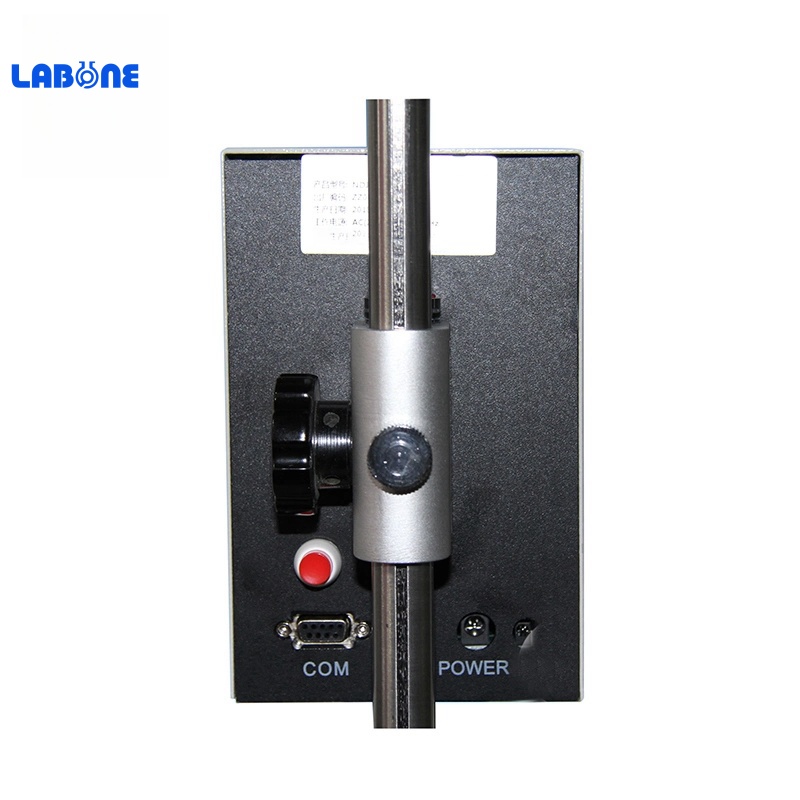

The instrument adopts advanced mechanical design technology and manufacturing process, using micro-computer technology to control speed,collect data and process data.Equipped with high-light LCD screen and micro-needle printer.The test data can show on the screen real time and also output by printer.In addition,the instrument can also connect with PC via RS232 communication port.
The instrument has the characteristics of high sensitivity, reliability, convenience and good looking.It can be widely used to determine the viscosity of liquids such as greases, oil paints, plastics, pharmaceutics, coatings, adhesives, detergents and other fluids.
I. Main technical specifications
Measurement range | 10mPa•s～1×106mPa•s |

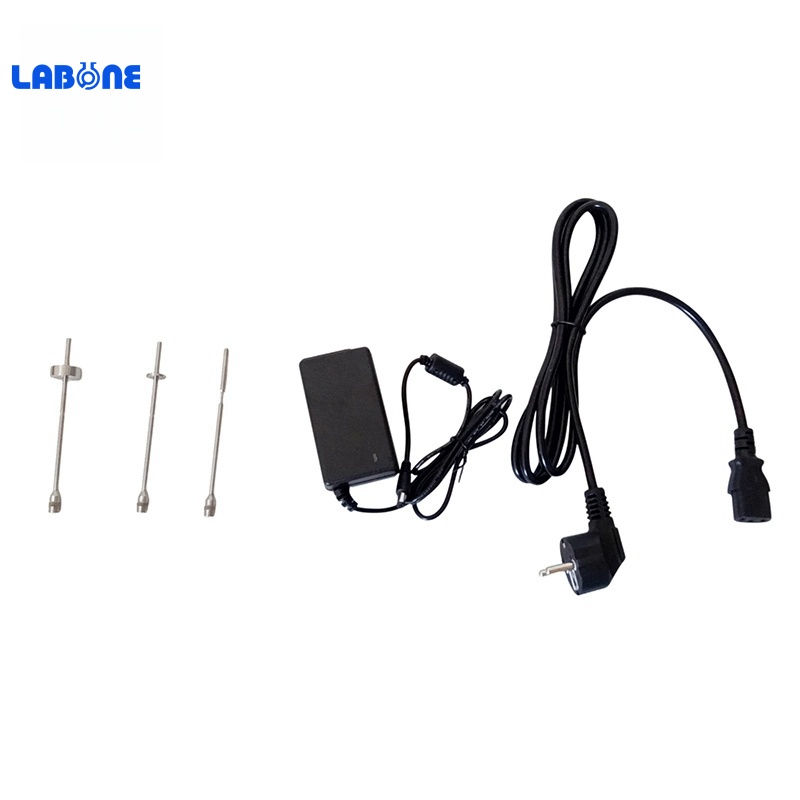

Spindle | Unit II 1# 10# 100# |
Spindle speed | 7.5--750r/min stepless speed regulating |
Measuring accuracy | ±2%(F•S) |
Temperature control range | 0℃～100℃ |
Power supply | AC 220V±10%，50Hz |
Working environment | Ambient temperature: 5～35℃ |
Relative humidity: ≤80% |
