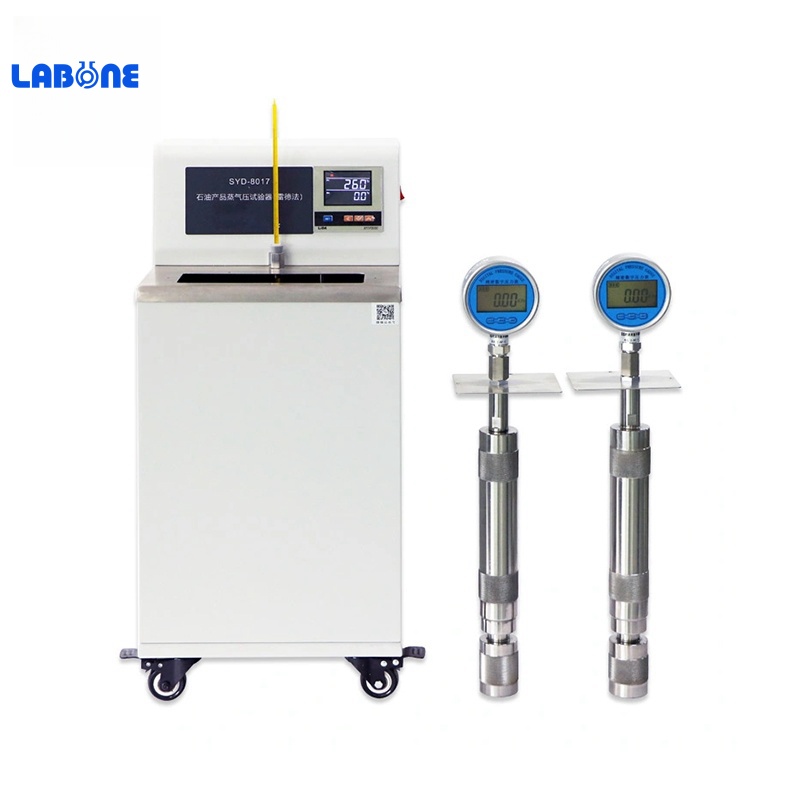

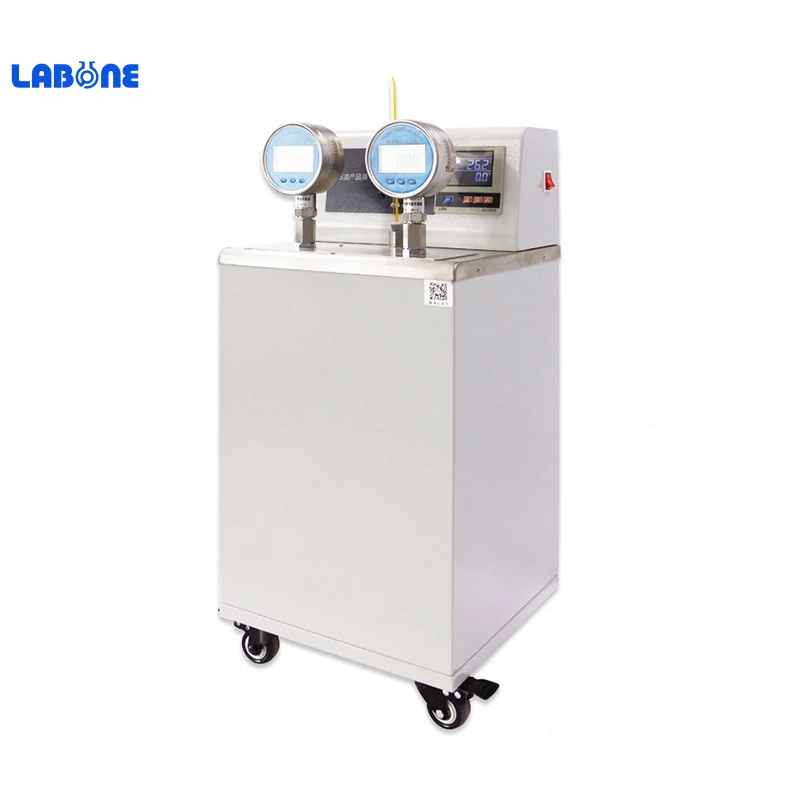

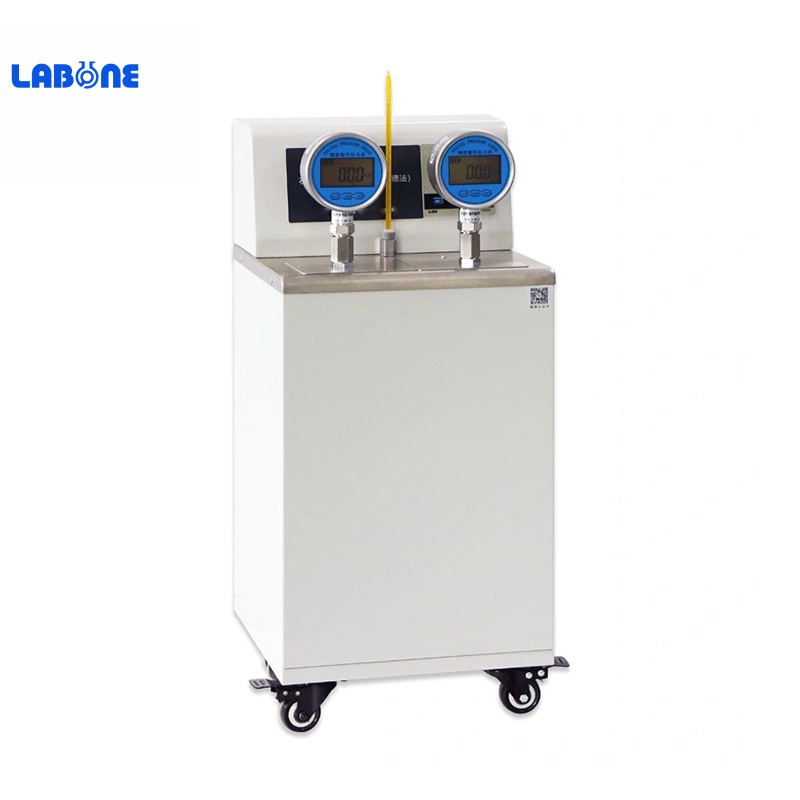

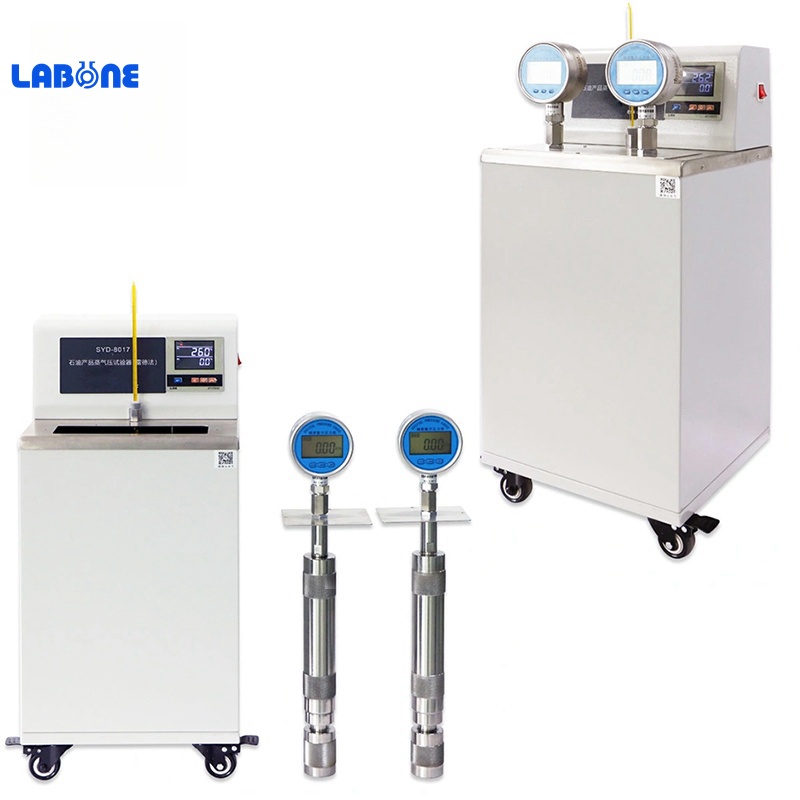

SYD-8017 Vapor Pressure Tester
(Reid Method)
Summary
This instrument is made and designed as per national standard of People’s Republic of China GB/T 8017 Petroleum Products- Determination of vapor pressure- Reid method. It is used to test make determination for vapor pressure of gasoline, volatile crude oil and other volatile petroleum products.
I. Main technical features
1. Digital temperature controller. The temperature in water bath is uniform. Temperature control accuracy is high. It can meet the requirements of test.
2. Two precise pressure meters to detect the gas pressure inside the bomb.
3. Two sets of vapor pressure bombs. It can do synchronous tests.
II. Main technical specifications
Power supply | AC(220±10%)V, 50Hz |
Total Power consumption | ≤ 1700W |
Temperature control range of bath | (Room temp.~90)℃ |
Temperature control accuracy of bath | ±0.1℃ |
Accuracy of pressure meter | 0.4％F·S |
Ambient temperature | (15~35)℃ |
Relative humidity | ≤85% |
Dimension | 350mm×340mm×750mm |
