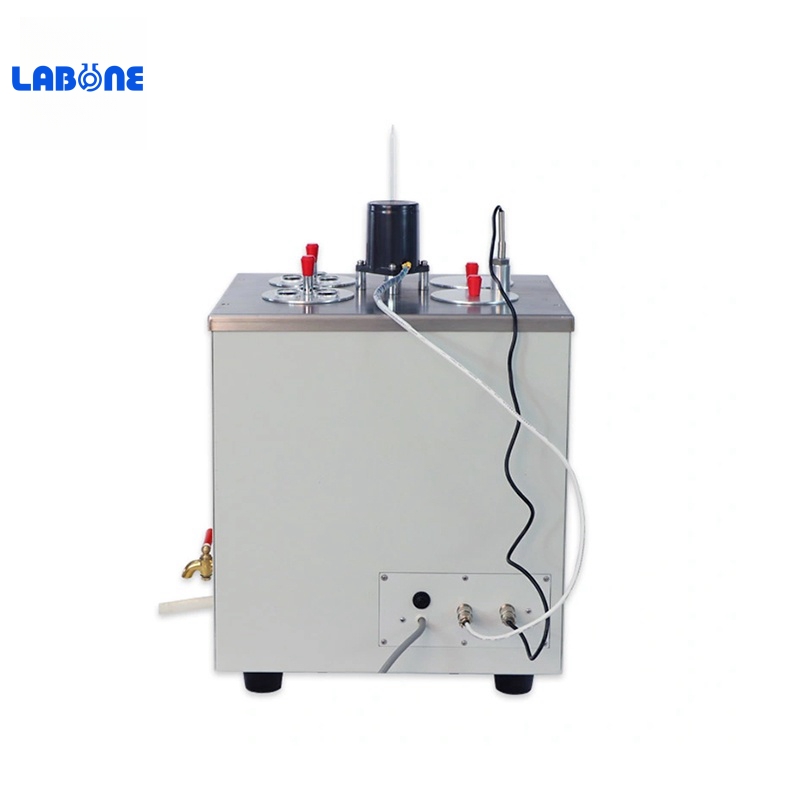

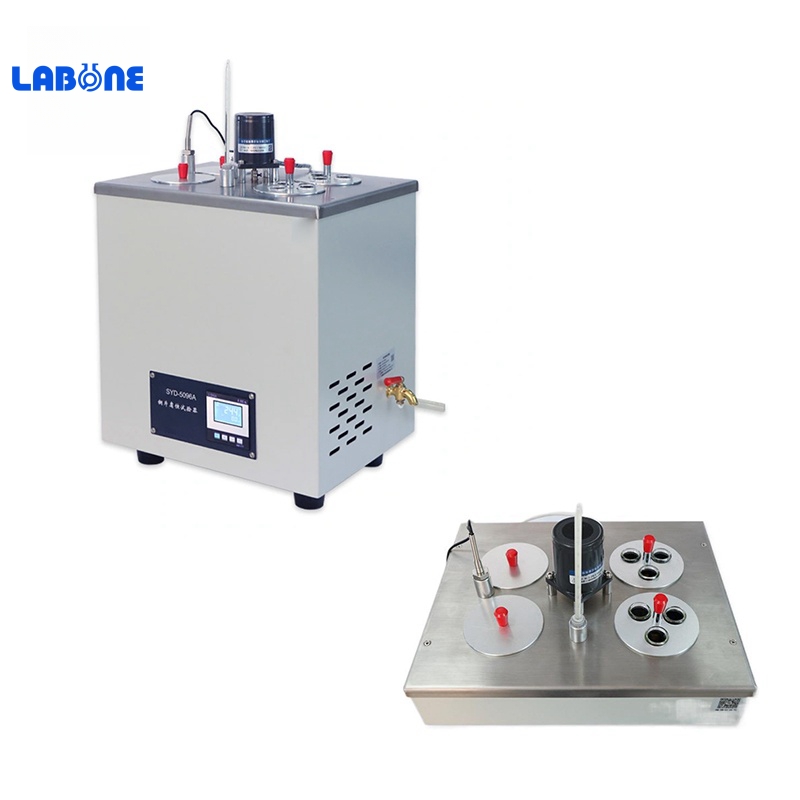

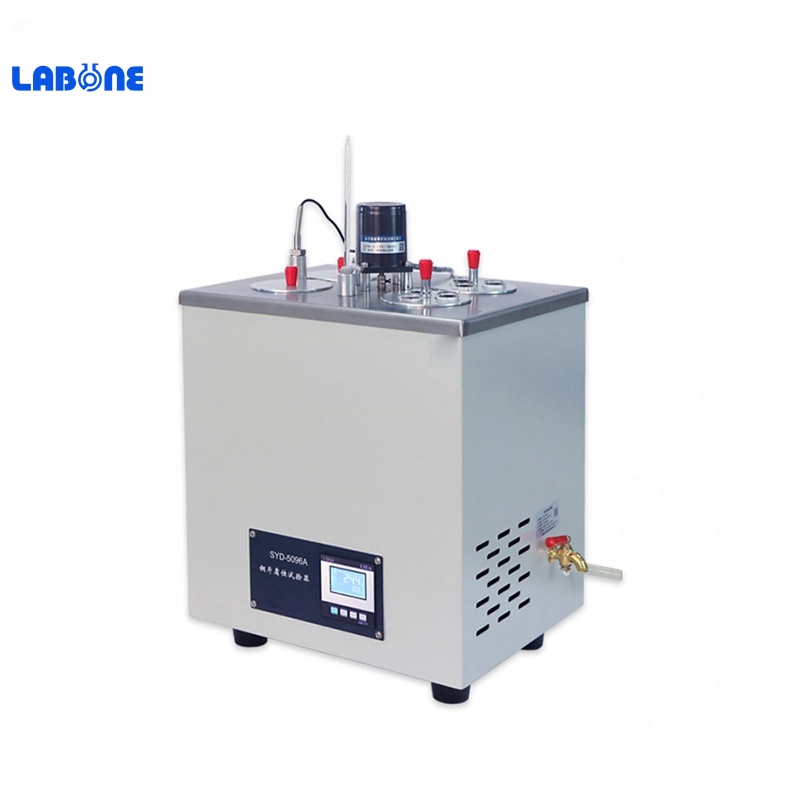

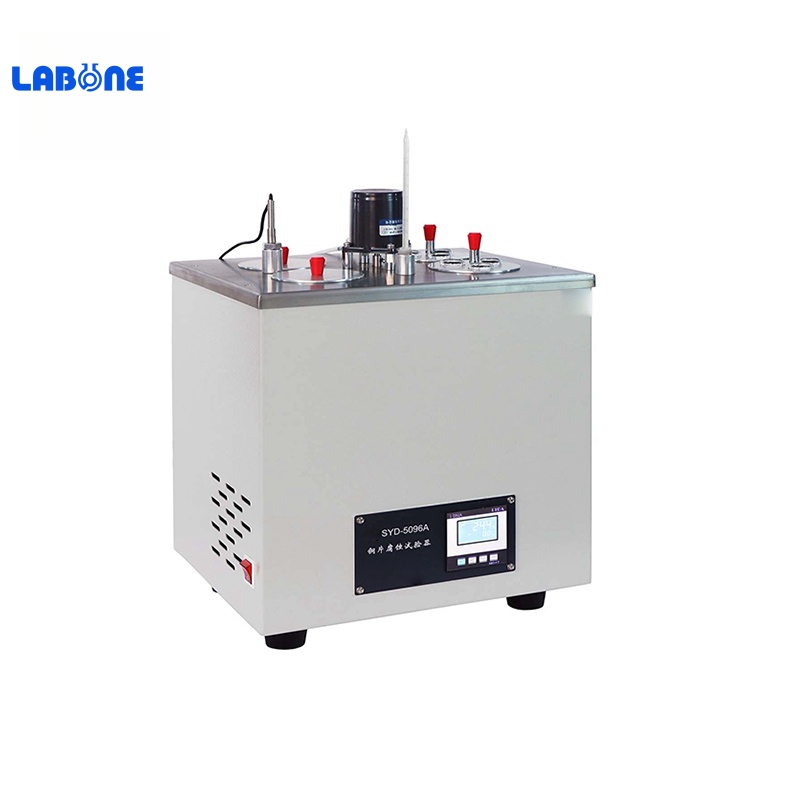

SYD-5096A Copper Strip Corrosion Tester

SYD-5096A Copper Strip Corrosion Tester

Summary:
 The instrument is designed and manufactured in accordance with the national standards of the People's Republic of China GB/T 5096 "Copper Strip Corrosion Test for Detection of Copper Corrosion in Petroleum Products" and ASTM D130 "Standard Test Method for Detection of Copper Corrosion in Petroleum Products". Passes copper strip tarnish test. It is suitable for determining the corrosion resistance of aviation gasoline, aviation turbine fuel, vehicle gasoline, tractor fuel, washing solvent, kerosene fraction, lubricating oil and other petroleum products to copper. The instrument has functions such as temperature control, automatic timing, and alarm.

Main technical features:
1. Use liquid crystal thermostat, heater and electric stirrer to form a constant temperature bath. The temperature in the bath is uniform. The temperature controller has a timing function that can control the test time and automatically time it. There will be an alert when completed.

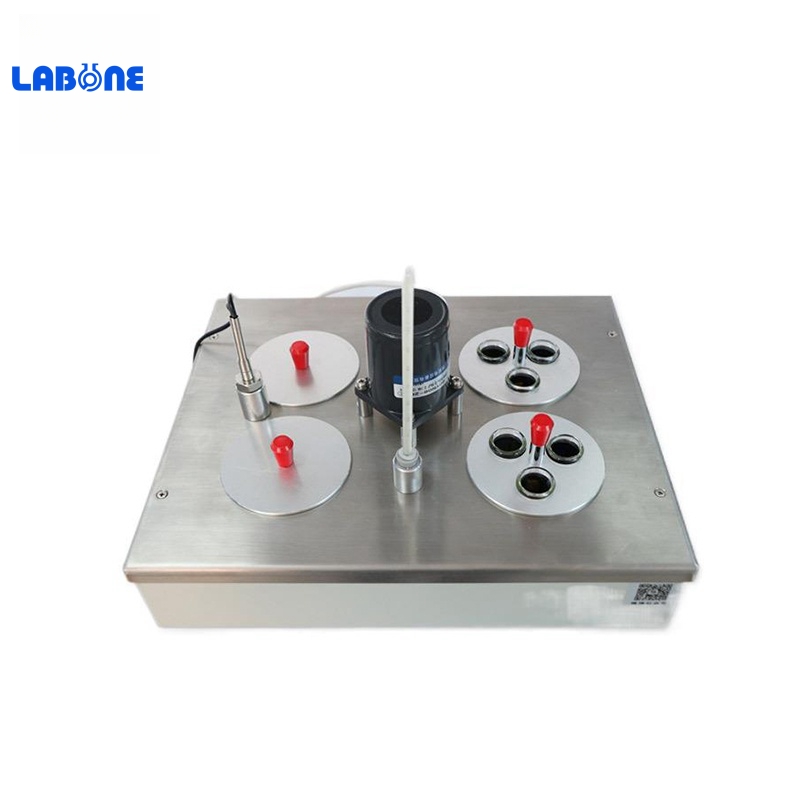

2. The instrument has four sample holes. One bomb or three tubes can be placed in each hole for measurement. High testing efficiency.

3. The instrument is equipped with standard color plates imported from the United States. Can meet the requirements of the test method.


Main technical specifications:
