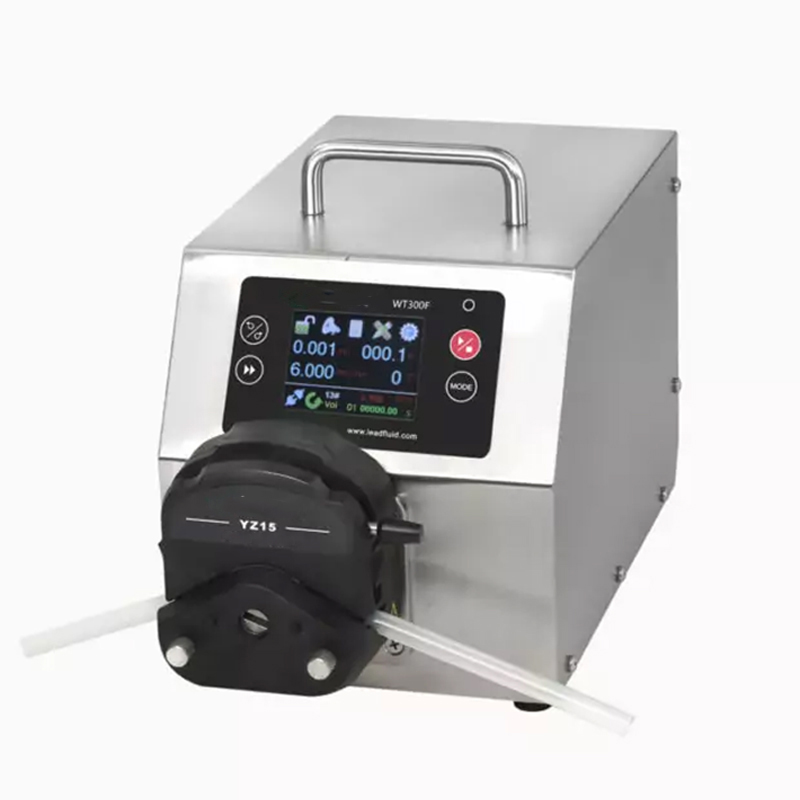

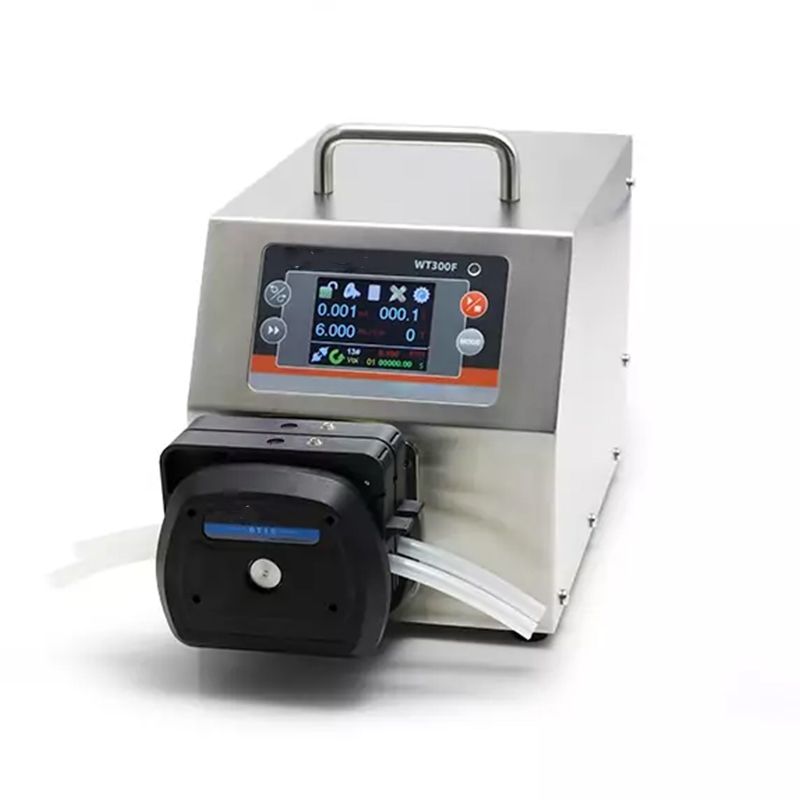

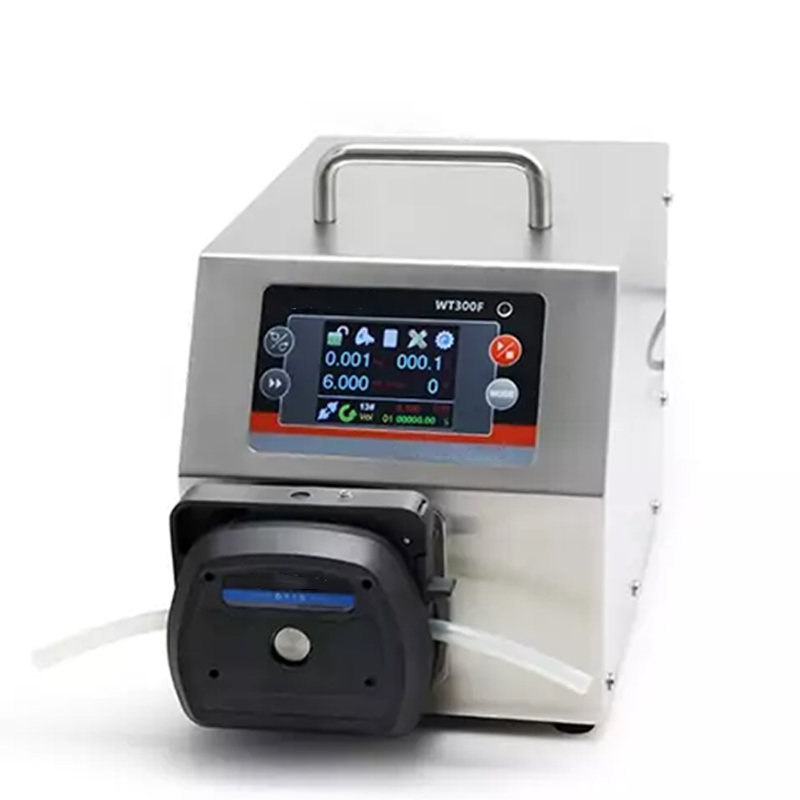

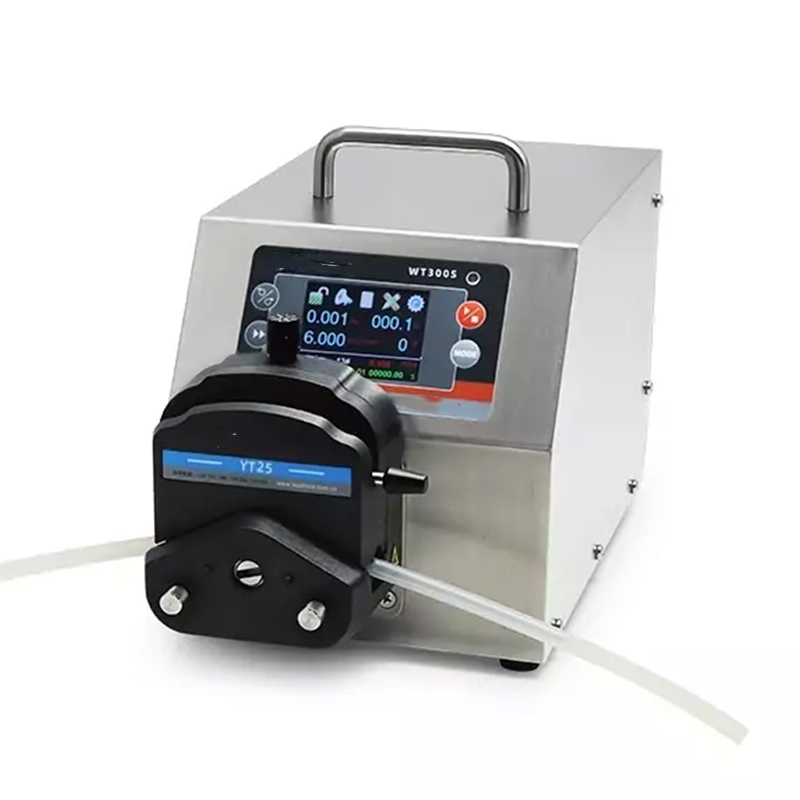

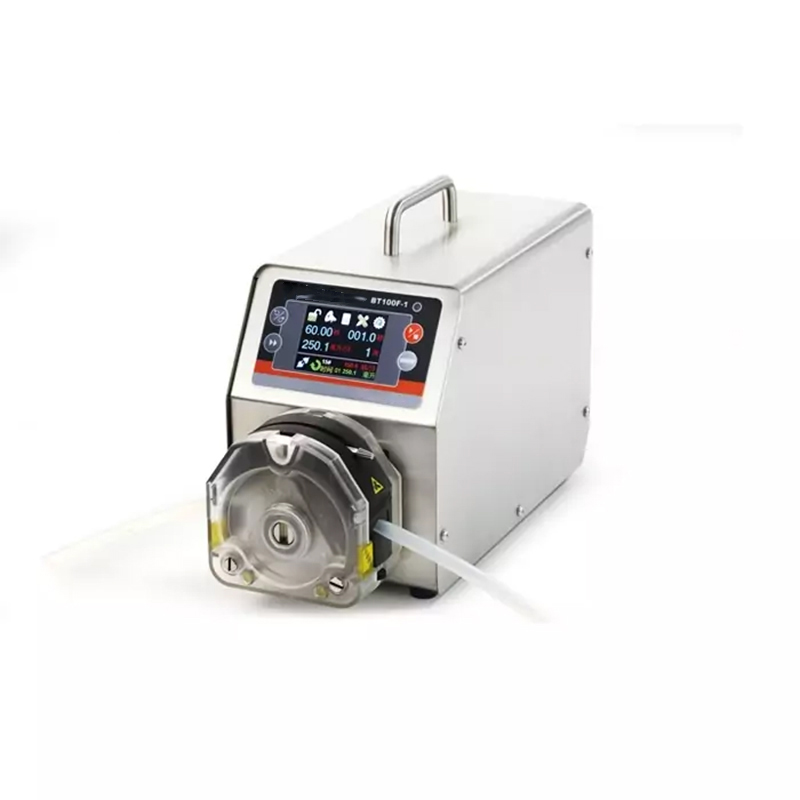

WT300F Intelligent Dispensing Peristaltic Pump

WT300F Intelligent Dispensing Peristaltic Pump

LABONE WT300F Peristaltic pump is mainly suitable for high-precision filling of 0.1~200ml liquid, and the filling accuracy range is ± 0.5~1%; Driven by a DC brushless motor, with a color high-definition LCD display and touch screen operation, it can directly input parameters such as filling liquid volume, running flow rate, and working frequency. It can be manually operated or used in conjunction with an automatic filling production line.

Flow: 0.005~4200mL/min

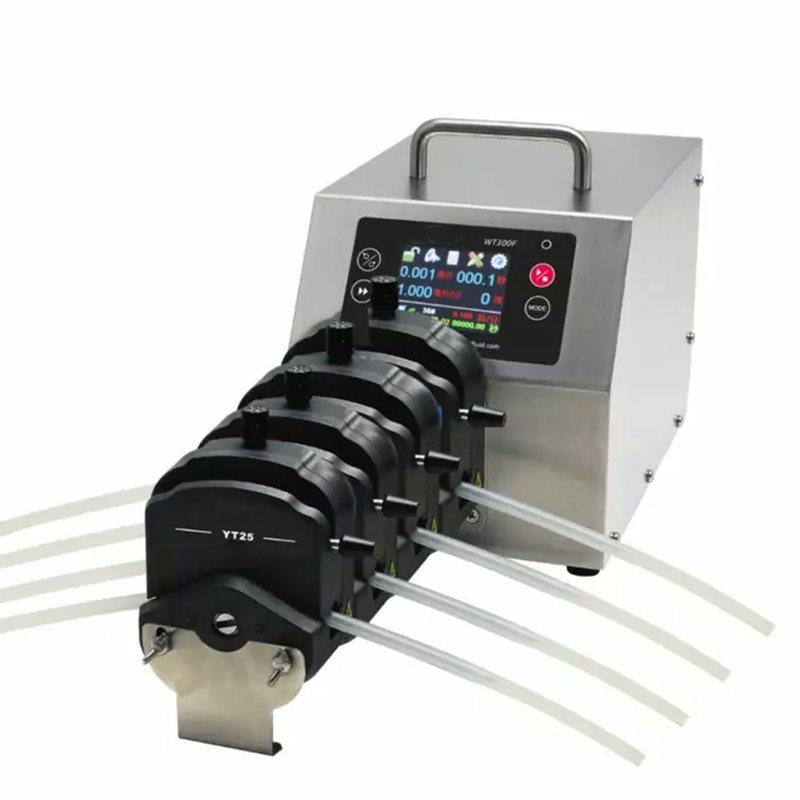

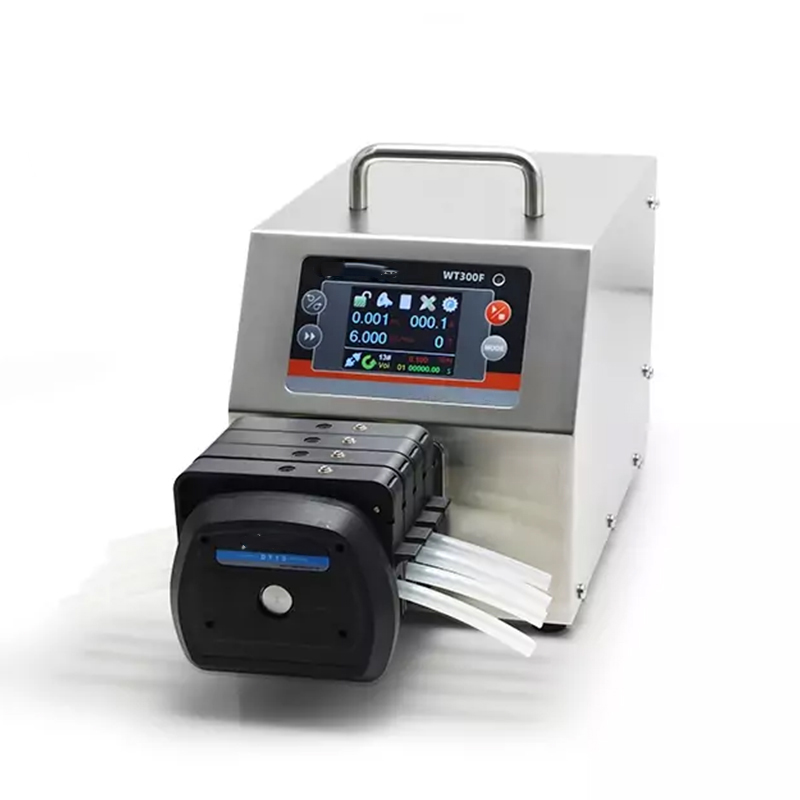

Max: 4 Channels

Category: Dispensing Pumps

Tags: dispensing peristaltic pump, industrial hose pumps, industrial peristaltic pump, large flow peristaltic pump, Peristaltic Pump, peristaltic pump manufacturer

Functions and Features

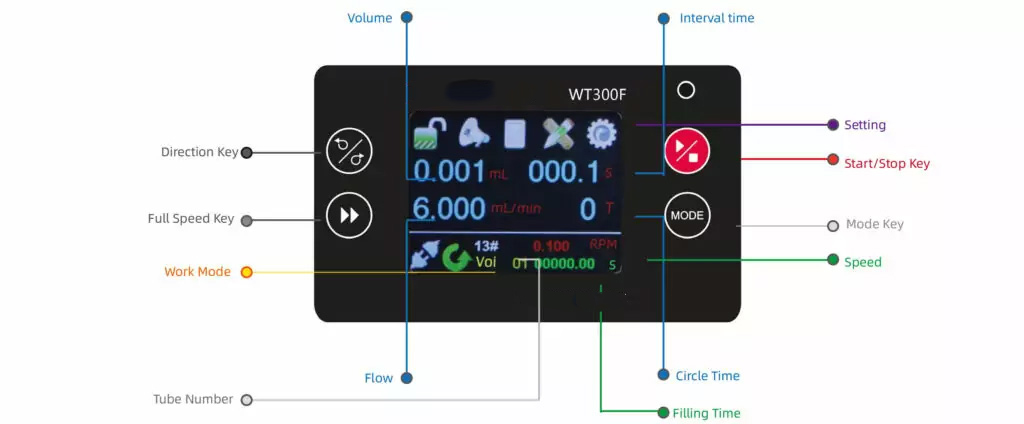

• Color LCD display, touch screen and button operation,easy to operate.
• Four working mode: flow rate mode, volume dispensing, time dispensing, copy dispensing, suitable for different working requirements.
• Each dispensing mode can store five groups of working parameters. Simply select when using.
• Start/stop, reversible direction, full speed, adjust speed, state memory (power-down memory).
• Display and control flow rate, accumulate dispensing volume automatically functions.
• High precision DC brushless servo drive, large torque, high efficiency, and maintenance free.
• The deceleration curve, suction angle, and speed can be set to reduce the impact force at the outlet and prevent splashing and dripping.
• With intelligent flow calibrating function, adjust flow errors at any time.
• Wizard style operation prompt, simple and fast operation.
• Intelligent temperature-control cooling fun reduces working noise.
• Can accept various external control signals to control start/stop, working direction, and speed adjustment, optically coupled isolator.
• The working status of start/stop, working direction, current speed, etc. can be output.
• RS485 communication, new MODBUS protocol, available in three modes: RTU, ASCII, and TCP, making it easy to connect with various control devices.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• 304 stainless steel shell, seamless welding process,easy to clean, corrosion resistant.
• Suitable for various specifications and materials of tubes, meeting the requirements of FDA, USP, and GMP certification.

Specifications

Flow Range: 0.005~4200mL/min

Speed Range: 0.1~350rpm

Speed resolution: 0.1rpm

Dispensing volume: 0.001μL～9999L(It is recommended to have a minimum fill of 100μL.)

Dispensing time: 1～999,“0”Infinite cycle

Dispensing interval time: 0.1～999.9 S/Min/H, time unit adjustable

Speed accuracy: ＜±0.2%

Power supply: AC100～240V，50Hz/60Hz

Power consumption: ＜150W

External control: External control input level 5V,12V(Standard),24V (Optional). External control analog 0-5V(Standard),0-10V,4-20mA (Optional)

Communication interface: RS485 communication interface, Modbus protocol is available, DB15 external control interface

Working environment: Temperature 0 ～ 40℃, relative humidity＜80%

IP grade: IP31

Dimension（L×W×H）: 286mm×180mm×230mm

Weight: 5.8kg

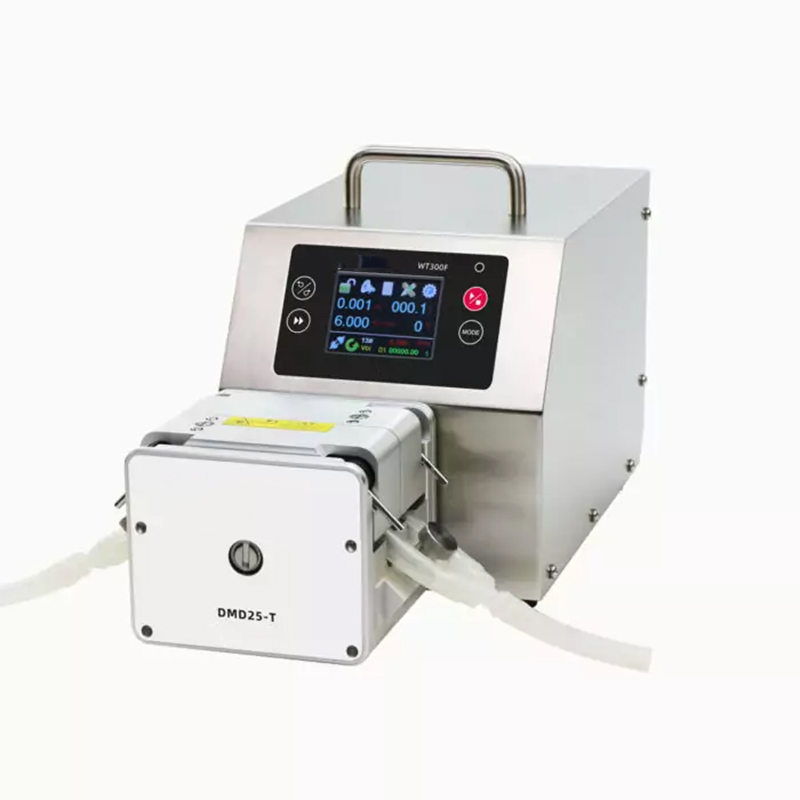

WT300F Applicable Pump Heads and Tubings, Flow Parameters

Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
