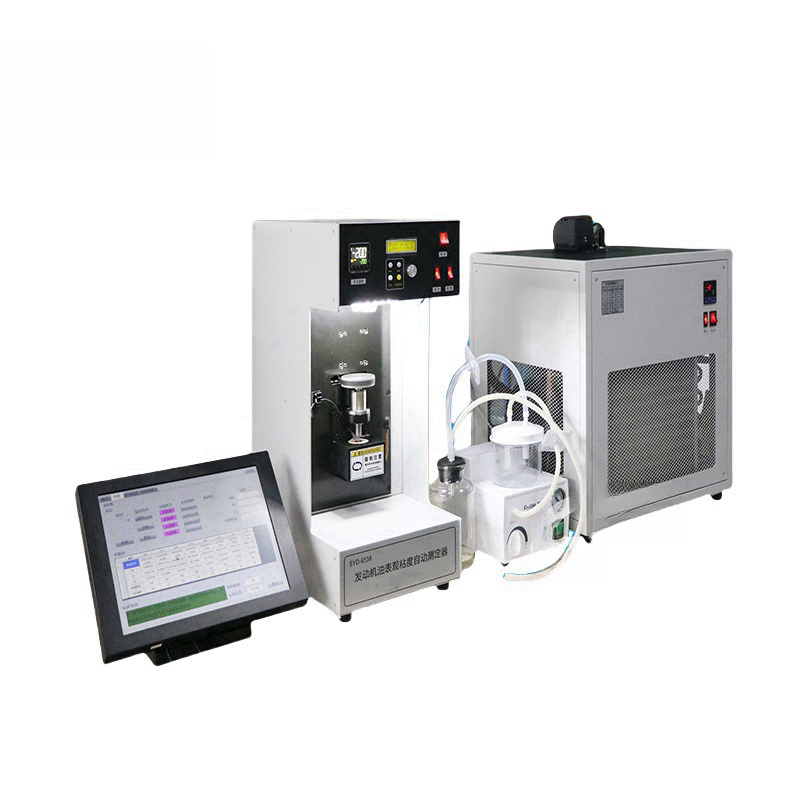

SYD-6538 Automatic Engine Oils Apparent Viscosity Tester
Summary The instrument is designed and manufactured according to the standards China GB/T 6538 Determination of apparent viscosity of engine oils using the cold-cranking simulator (CCS method) and American ASTM D5293.At the temperature range: -35℃∼-5℃,t
SYD-6538 Automatic Engine Oils Apparent Viscosity Tester
Summary
The instrument is designed and manufactured according to the standards China GB/T 6538 Determination of apparent viscosity of engine oils using the cold-cranking simulator (CCS method) and American ASTM D5293.At the temperature range: -35℃∼-5℃,the interval 5℃ temperature condition , and the viscosity range:1200mPa•s∼27000mPa•s to detect the apparent viscosity of the apparent oils.
I.Main technical characteristics
1.This instrument has the features of compact structure, attractive appearance and convenient operation.
2. It adopts the principle of fuzzy temperature control, and has the advantages of high temperature control accuracy and fast response speed.
3. It adopts personal computer as the main control system, which is convenient to use.
4. The built-in printer can print the experimental results at any time for filing.
5. The apparent viscosity of engine oil is calculated automatically by curve fitting method.
II.Main technical parameters
Temperature measurement range | （-50~100）℃ |
Temperature measurement accuracy | ±0.5℃ |
Refrigeration range | -50℃~Ambient |
Temperature control accuracy | ±0.05℃ |
Viscosity measurement range | 1200mPa•s ~27000mPa•s |
Power supply | AC(220±10%)V,50Hz |
Heating Power | 800W |
Environment temperature | -40℃~30℃ |
Relative humidity | ≤80% |
Maximum power consumption | 2000W |
Dimension: Host: | 420 mm×300 mm×620 mm(L*W*H) |
Cold bath | 500 mm×530 mm×615 mm(L*W*H) |
