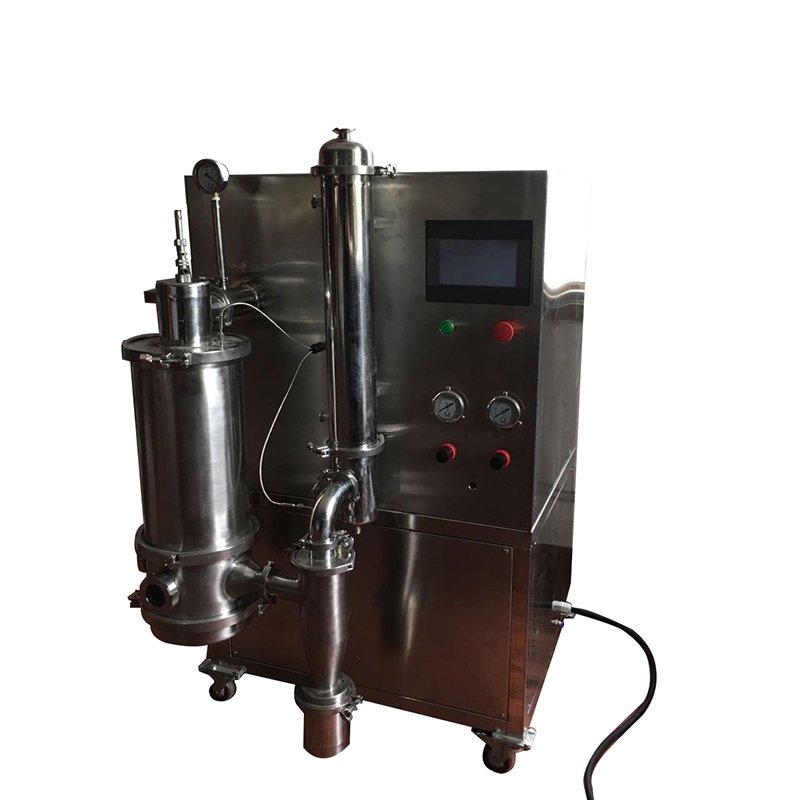

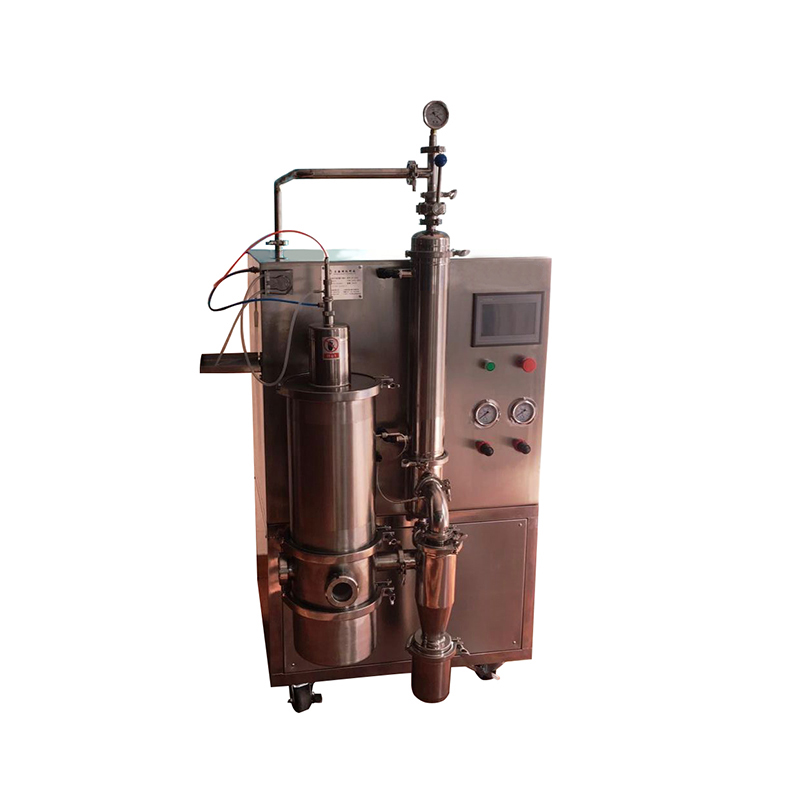

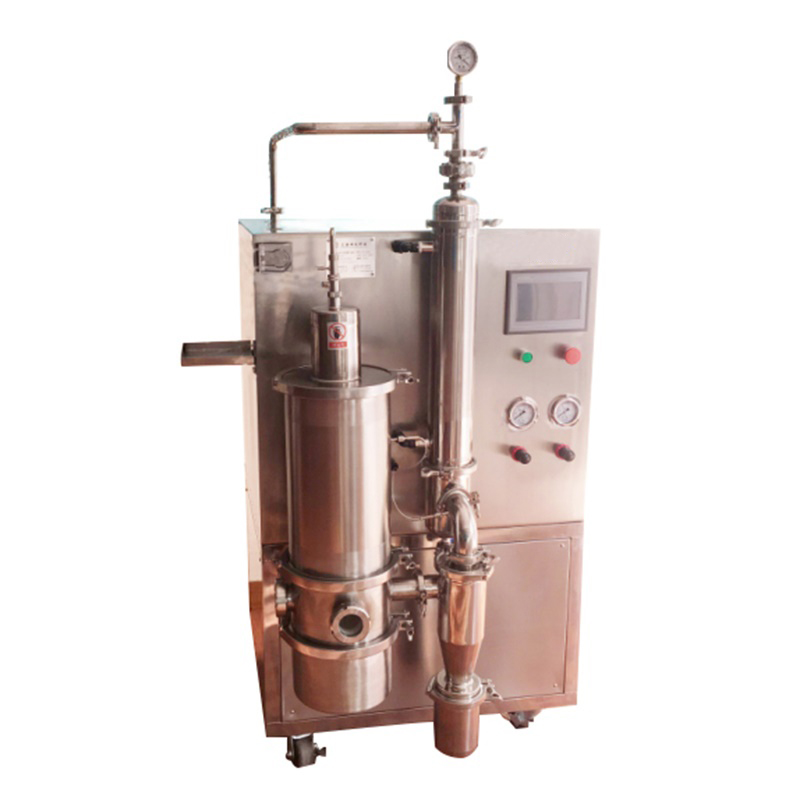

SP-2000 Lab low temperature spray dryer

SP-2000 Lab low temperature spray dryer

SP-2000 lab low temperature spray dryer is deliberately designed for thermo-sensitive materials by  company. Fast drying of thermo-sensitive material has always baffled scientific research personnel. General vacuum drying and Spray drying bring great damage to material biological activity or structure. Freeze drying is time-consuming and inefficient, and dried materials are in bulks which require a second grinding. Based on long-term contact with research personnel,  company has realized that low-temperature spray dryer can effectively help research personnel solve thermo-sensitive material drying difficulty and deliberately developed SP-2000 laboratory low-temperature dryer.

The entire machine is compact and complete with no need of any other facility to operate. One-touch boot, large color LCD touch screen, either automatic or manual control, convenient for monitoring of operation and experiment. In particular, it achieves rapid material drying at low temperature (50℃) and provides very convenient and safe drying method for thermo-sensitive materials, such as biological product, high carbohydrate traditional Chinese medicine natural product extract, thermolabile polymer material, heat gasification material and so on.

Features:

1) Spray dry at low temperature (50℃) using for thermosensitive material.

2）7" high-resolution LCD, human-oriented interface, Chinese and English menu, Optimize operation procedure, efficiency, flexibility, easy-going and easy learning.

3）Patrticle size with normal distribution.

4）Two fluid atomizing structure, made of SUS 316 Stainless steel. Easy operating.

5）To assure accurate temperature control and easy parameter adjusting.

6）The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber to avoid secondary pollution, capacity: 300～1500ml/h.

TECH DATA:
