Mini-TB4 Transfer Printing Module
Product use: transfer the strips in protein gel electrophoresis to nitrocellulose and other films
Product features:
Imported high-strength PC material injection molding, high transparency, sturdy and durable;
Transfer two 75mm × 100mm gel within one hour, or low intensity overnight transfer;
The platinum electrode wires are spaced 40mm apart to generate a strong electric field to ensure the protein transfer effect;
Color marked transfer sandwich clip and electrode to ensure correct orientation of gel during transfer;

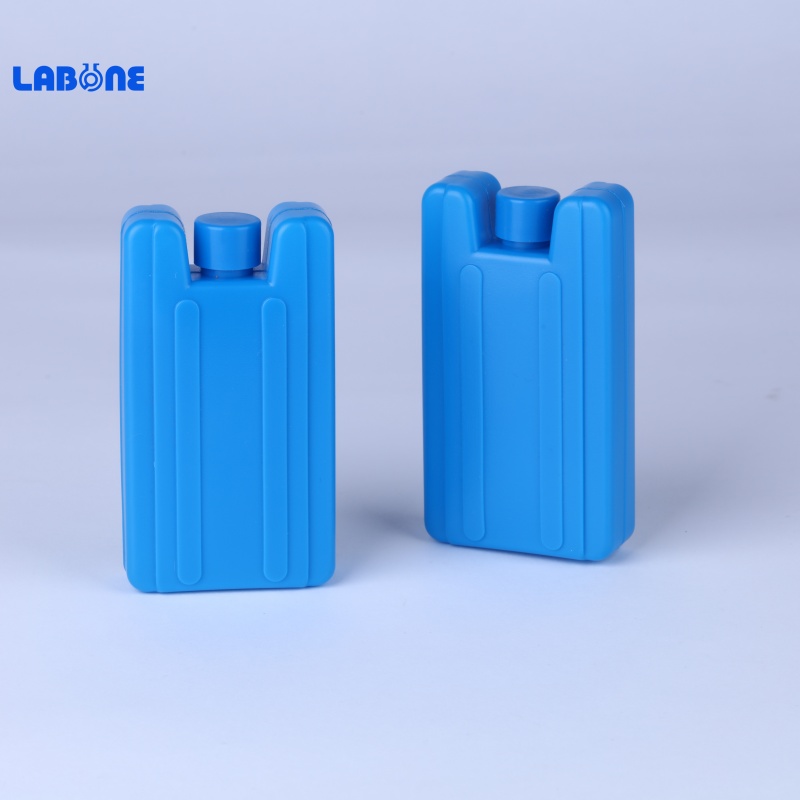

Built in blue ice box, which can quickly absorb the heat generated during the transfer electrophoresis process;
Can be used independently or as a module compatible with the buffer tank and top cover of LF-MI4 electrophoresis tank
Technical parameters:
Platinum wire diameter of positive and negative electrodes in electrophoresis tank | 0.3mm， Purity of 99.95% |
Transfer printing method | wet transfer |
Transfer area | 75 × 100mm |
Transfer gel quantity | 2 |
Buffer volume | 450ml |
Platinum electrode wire spacing | 40mm |
transfer printing time | 60 minutes |
Instrument weight | 1.0 Kg |
Dimensions | 120 x 160 x 180 mm |
Cooling method | Blue Ice Box |
