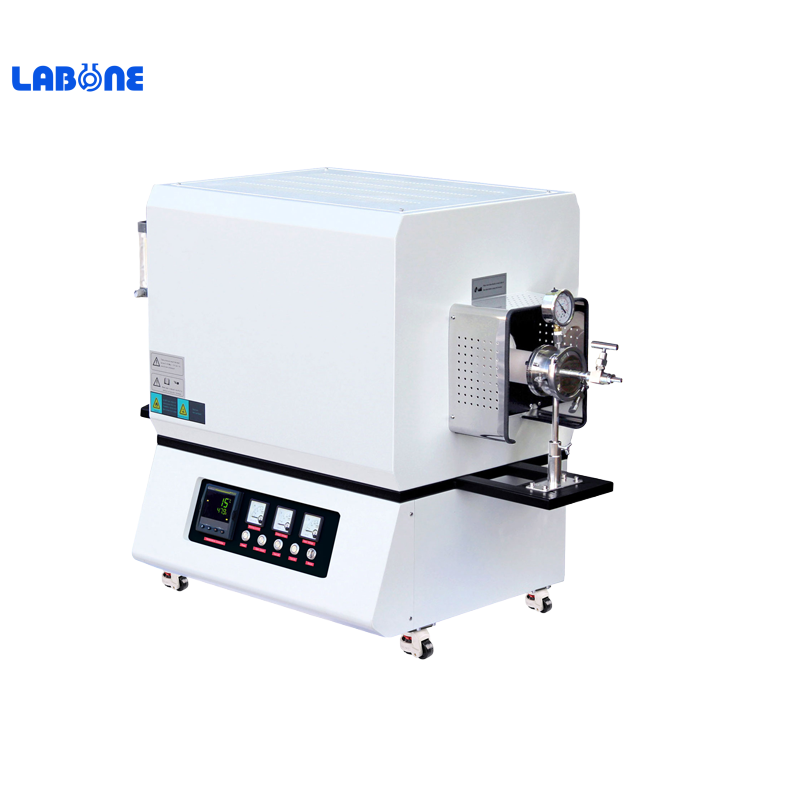

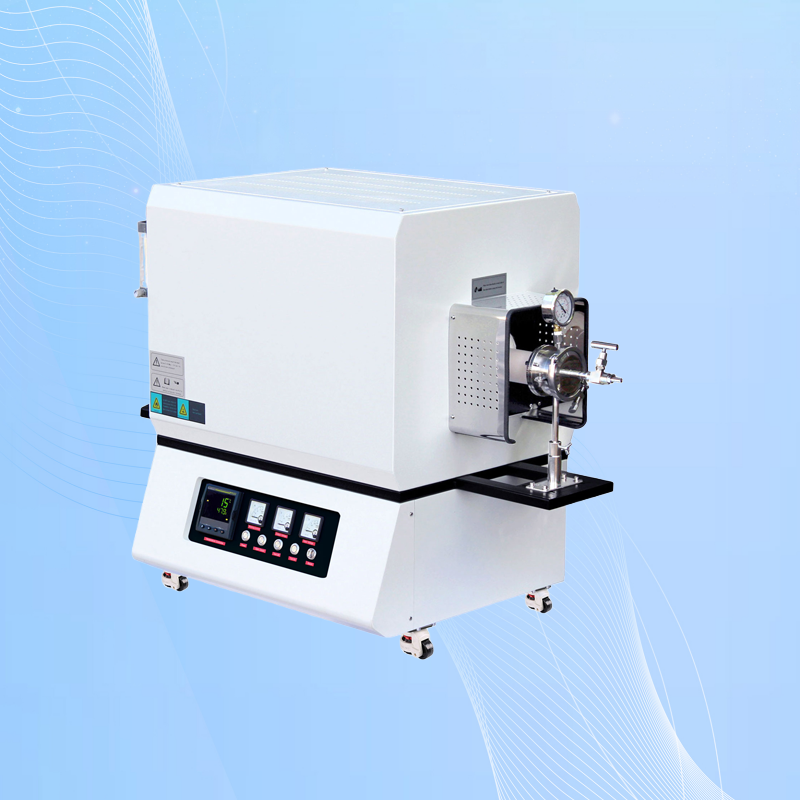

SK2-6-18DZ High Temperature Vacuum Atmosphere Tube Furnace Hot Sale Laboratory Heating Equipment
Product Applications:The SK2-6-18DZ series tube furnace, also known as a vacuum atmosphere tubular furnace or atmosphere tubular furnace, is ideal for high-temperature atmosphere sintering, atmosphere reduction, CVD experiments, and vacuum annealing in
Product Features:
Structure: The SK2-6-18DZ tube furnace features a double-shell design with a hollow air cooling system.
Shell Material: Cold-rolled steel plate with a high-temperature paint finish for aesthetics and durability.
Tube Material: The SK2-6-18DZ utilizes 99% pure corundum tubes with an outer diameter of 80mm.
Sealing System: Stainless steel compression fittings with quick-connect flanges, double-layer sealing rings, a stainless steel protective cover, and an adjustable stainless steel flange bracket.
Gas Inlet and Outlet System: Equipped with a high-vacuum needle valve, air nozzle, and pressure gauge.
Furnace Chamber Components: The tube furnace utilizes a 1900 imported polycrystalline alumina fiber chamber, offering lightweight and high thermal efficiency. Heating Elements: The tubular vacuum atmosphere furnace utilizes imported 1900 silicon-molybdenum rods for high surface thermal efficiency and long service life.
Insulation: The tubular furnace utilizes ceramic fiberboard and ceramic fiber wool for superior thermal insulation.
Temperature Control Instrument: The tubular vacuum atmosphere furnace utilizes an imported programmable controller with 500 program steps and 8 PID control groups. Optional computer control is available for centralized equipment control.
Control System: The tubular furnace utilizes a modular control system and mobile-triggered thyristor control for low noise and durability.
Control Panel: Independent power button, heating button, and power off switch are available. The instrument also features hot start and stop functions. Voltage and current indicators provide a clear view of operating status.
Safety Measures: Door-opening power-off function is available. Multiple safety measures, including overtemperature, overcurrent, overvoltage, overheating, and thermal burnout, ensure safe operation.
Mobile Design: The tubular furnace is equipped with a high-load-bearing Fumar wheel for free movement and securement.
Technical Parameters:
Furnace Tube Dimensions: φ60*1000mm
Furnace Tube Material: 99% pure corundum tube, OD 60mm
Heating Zone Length: 300mm
Constant Temperature Zone Length: 200mm
Design Temperature: 1800°C
Rated Temperature: 1750°C
Heating Rate: ≤20°C/min
Temperature Control Instrument: Imported 3504 Programmable Controller, 500 Programmable Sections, 8 PID Control Sets
Temperature Control Accuracy: ±1°C
Thermocouple: Imported PtRh40-PtRh20 Thermocouples
Power Supply: AC220V, 50Hz, 5.5kW
