Portable Haze Meter DH-10
Part 1. Product Advantages
1). The portable haze meter is with smaller size which is more convenient to be carried for testing haze and transmittance.
Technical Data
Model | DH-10 | DH-12 | DH-13 |
Light Source | CIE-A,CIE-C,CIE-D65 | CIE-A,CIE-C,CIE-D65 | CIE-A,CIE-C,CIE-D65 |
Standards | ASTM D1003/D1044,ISO 13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08 | ASTM D1003/D1044,ISO 13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08 | ASTM D1003/D1044,ISO 13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08 |
Parameter | ASTM-haze/transmittance | ASTM & ISO -haze/transmittance | ASTM & ISO -haze/transmittance |
Spectral Response | CIE The spectrum function Y/V(λ) | CIE The spectrum function Y/V(λ) | CIE The spectrum function Y/V(λ) |
Geometry | 0/d | 0/d | 0/d |
Test Aperture | 21mm | 21mm, 15mm | 21mm, 15mm, 12mm |
Test Range | 0-100% | 0-100% | 0-100% |
Resolution | 0.1% | 0.01% | 0.01% |
Repeatability | 0.1 | 0.05 | 0.02 |
Sample Size | Thickness ≤40mm | Thickness ≤40mm | Thickness ≤40mm |
Display | 2.8 inches touch screen | 2.8 inches touch screen | 2.8 inches touch screen |
Data Storage | Mass Storage | Mass Storage | Mass Storage |
Interface | USB | USB | USB |
Power | DC 5V/2A | Rechargeable Lithium Battery | Rechargeable Lithium Battery |
Working Temperature | 5~40℃, Relative humidity 80% or below (at 35 ° C), no condensation | 5~40℃, Relative humidity 80% or below (at 35 ° C), no condensation | 5~40℃, Relative humidity 80% or below (at 35 ° C), no condensation |
Storage Temperature | -20 ℃ ~ 45 ℃, relative humidity 80% or below (at 35 ℃), no condensation | -20 ℃ ~ 45 ℃, relative humidity 80% or below (at 35 ℃), no condensation | -20 ℃ ~ 45 ℃, relative humidity 80% or below (at 35 ℃), no condensation |
Size | 133mm x 99mm x 224mm (length X width X height) | 133mm x 99mm x 224mm (length X width X height) | 133mm x 99mm x 224mm (length X width X height) |
Weight | 1.13 kg | 1.25 kg | 1.25 kg |
Optional | Test Aperture with custom made size | Test Aperture with custom made size | Test Aperture with custom made size |
Model | DH-10 | DH-12★ | DH-13 |
ASTM-haze/transmittance | ✔ | ✔ | ✔ |
ISO- haze/transmittance | ✘ | ✔ | ✔ |
Test Apertures | 21mm | 21mm, 15mm | 21mm, 15mm, 12mm |
Resolution | 0.1% | 0.01% | 0.01% |
Repeatability | 0.1 | 0.05 | 0.02 |
Lithium Battery | ✘ | ✔ | ✔ |
Weight | 1.13kg | 1.25kg | 1.25kg |
Packing List
Model | DH-10 | DH-12 | DH-13 |
Packing List | Instrument | Instrument | Instrument |
- | Charging Head | Charging Head | |
USB Cable / Recharging Cable | USB Cable / Recharging Cable | USB Cable / Recharging Cable | |
U Disk ( QC software, manual) | U Disk ( QC software, manual) | U Disk ( QC software, manual) | |
1 test aperture | 2 test apertures | 3 test apertures | |
Qualified Certificate | Qualified Certificate | Qualified Certificate | |
Warranty Card | Warranty Card | Warranty Card | |
Packing List | Packing List | Packing List | |
Calibration Certificate | Calibration Certificate | Calibration Certificate | |
- | - | Black Carrying Case |

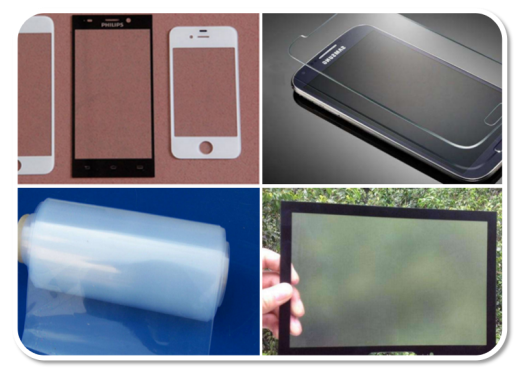

Application
Haze Meter Application
