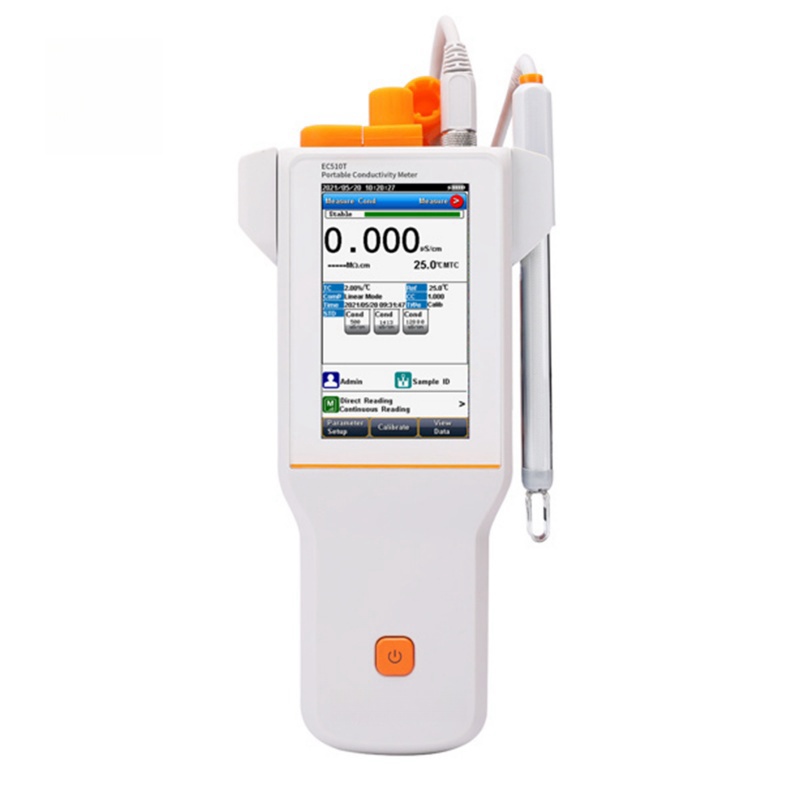

EC510T Conductivity Meter / Portable EC Meter
GENERAL FEATURESColor High contrast LCD touchscreen, 4.3 inches.Intelligent operation system provides features including user management, calibration management, electrode management, method management, data management, Log Management and etc.Multi-
EC510T Conductivity Meter / Portable EC Meter
GENERAL FEATURES
Color High contrast LCD touchscreen, 4.3 inches.
Intelligent operation system provides features including user management, calibration management, electrode management, method management, data management, Log Management and etc.
Multi-reading feature allows auto-read, timed-read and continuous-read.
Automatic/Manual temperature compensation ensures accurate results.
Auto-hold feature senses and locks the measurement endpoint.
Data Storage 1000 sets for each parameter (GLP-compliant).
Data analysis feature helps user review, compare and recalculate results.
Support for USB communication.
Auto-power off feature effectively extends the battery service life.
Reset feature automatically resumes all settings back to factory default options.
IP65 waterproof. The portable meter is suitable for fields measurements and out door measurements.
1-5 points calibration automatically recognizes the standard solutions.
Settable parameters, including cell constant, reference temperature (5/10/15/18/20/25°C), temperature compensation coefficient and TDS factor.
Temperature compensation type (none, linear, pure water).

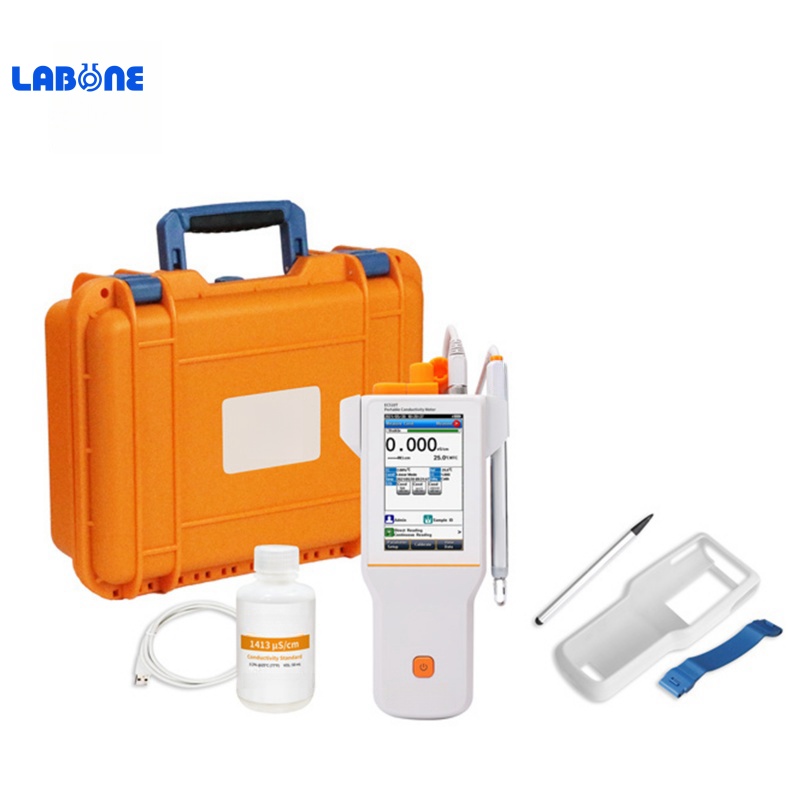

Includes
DJS-1VTC EC electrode
1413μS/cm EC standard solution, 50ml, 1 vial
Electrode holder
Silicone rubber case
Wristbands
Touch pen
Carrying case
Specifications
Model | EC510T | |
Parameters | EC/Resistivity/TDS /Sal./Temp. | |
Conductivity | Range | 0.000 μS/cm to 3000 mS/cm |
Resolution | 0.001 μS/cm minimum, various with range selection | |
Accuracy | ±0.5% FS | |
Reference Temperature | 5, 10, 15, 18, 20, 25 ºC | |
Calibration Points | Up to 5 | |
Calibration Reminder | Yes | |
Standard Recognition | 10μS/cm, 84μS/cm, 500μS/cm, 1413μS/cm, 12.88mS/cm; 146.5μS/cm, 1408μS/cm, 12.85mS/cm, 111.3mS/cm | |
Resistivity | Range | 5.00 Ω·cm~100.0 MΩ·cm |
Resolution | 0.01 Ω·cm minimum | |
Accuracy | ±0.5% FS | |
TDS | Range | 0.000ppm~1000ppt |
Resolution | 0.001mg/L minimum, changed with range | |
Accuracy | ±0.5% FS | |
Salinity | Range | 0.0～80.0 ppt |
Resolution | 0.1ppt | |
Accuracy | ±1ppt | |
Temperature | Range | -10 to 135 ºC, 14 to 275 ºF |
Unit | ºC, ºF | |
Resolution | 0.1 | |
Accuracy | ±0.1ºC | |
Measurement | Reading Mode | Auto Read (Fast, Medium, Slow), Timed, Continuous |
Reading Prompts | Reading, Stable, Locked | |
Temp. Compensation | ATC, MTC | |
Data management | Data Storage | 1000 Groups |
GLP Features | Yes | |
Inputs | Conductivity with Temp. Probe | 5-pin aviation connector |
Outputs | USB | USB 2.0 flash memory device, PC, scanner |
Display options | Backlight | Yes |
Auto Shutdown | 300, 600, 1200, 1800, 3600 sec., off | |
IP Rating | IP65 | |
Date and Time | Yes | |
General | Power | Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output |
Dimensions | 90×255×40 mm | |
Weight | 500g (1.1 lb) | |
Dimensions (Carton) | 410×330×165 mm | |
Weight (Gross) | 5.5 kg | |
