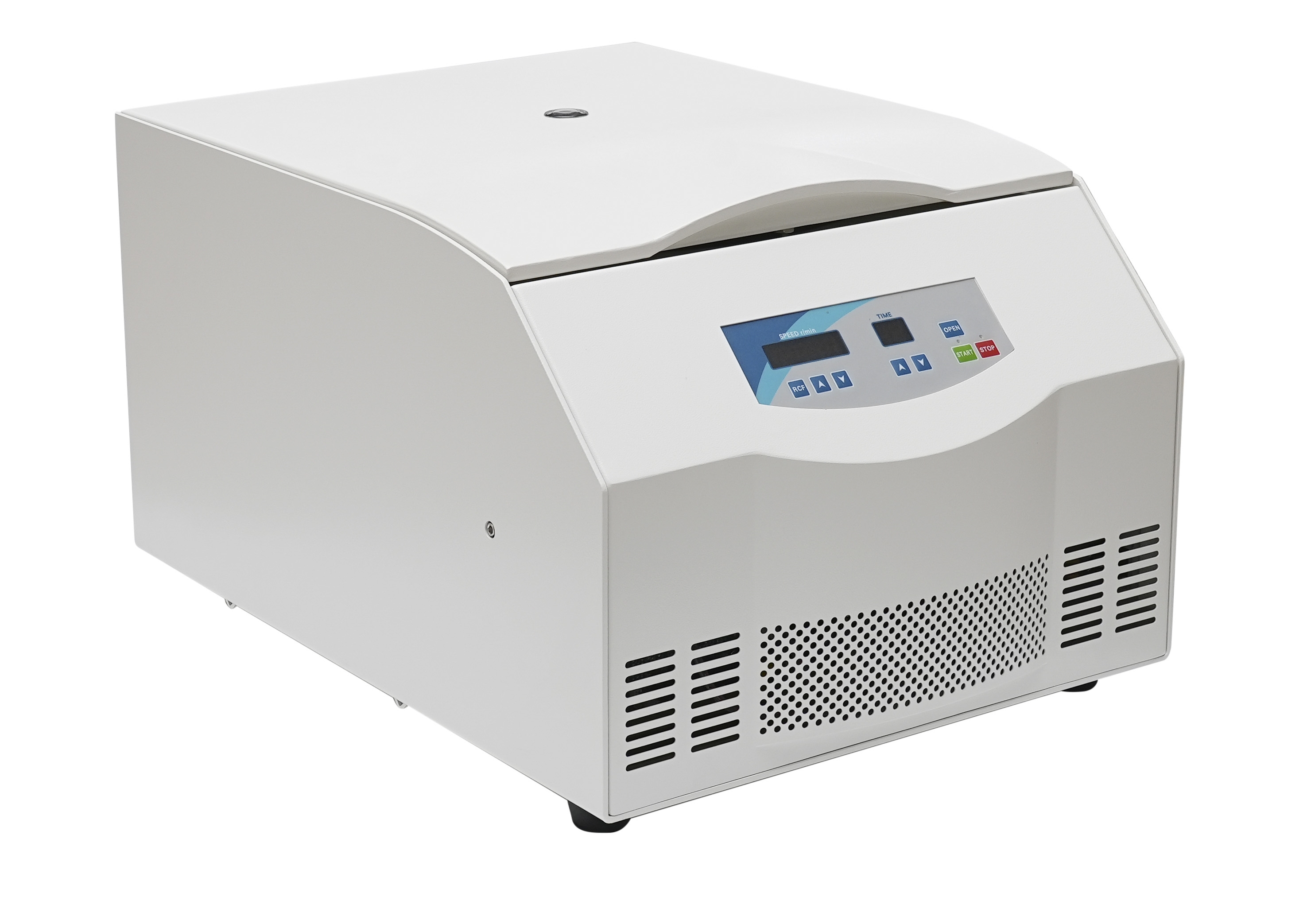

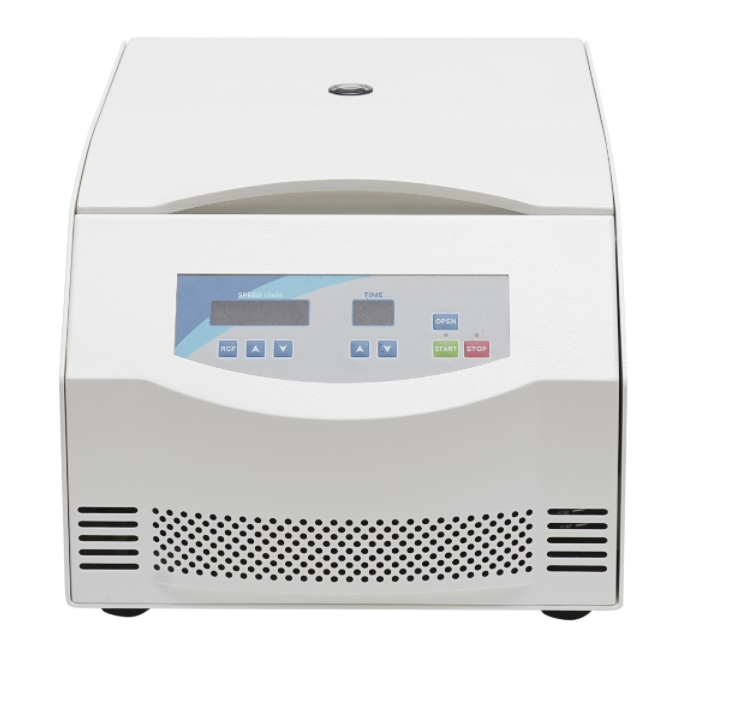

TG18E High Speed Centrifuge
Features:
Brushless frequency motor with simpler construction, more reliable performance, longer life and quietly running
2. Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.
3. Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction, safe and reliable.
4. Microprocessor control.
5. Digital display in time, speed and RCF.
6. 10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice.
7. 3 tiers protection steel cover, stainless steel chamber, safe and reliable.
TG18E Technical Parameter：
Max. Speed | 18500rpm |
Max. RCF | 23990×g |
Max. Capacity | 4×800ml |
Time Range | 0~99min |
RPM/RCF Convert | Yes |
Noise (dB) | ≤65dBA |
Temperature | Normal |
Acc/Dec | 10 Kinds |
Speed Accuracy | ±20r/min |
Temperature Accuracy | / |
Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
Size (L x W x Hmm) | 685×500×385mm |
Net Weight(Kg) | 67KG |
Certificates | CE,ISO & Calibration report are available |

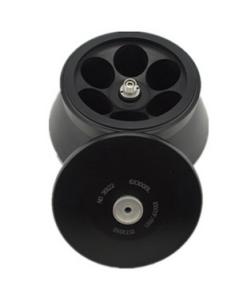

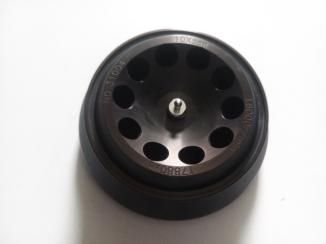

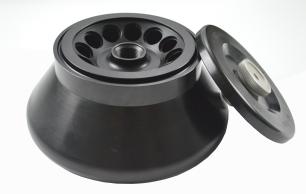

Matched Rotors for TG18E | ||||
Order No | Rotor | Rotor Max Speed(r/min) | Volume(ml) | RCF(×g) |
G18-1 | Swing Rotor | 4000 | 4×800ml | 3450 |
G18-2 | Microplate rotor
| 4000 | 4×4×96 well | 2940 |
G18-3 | Microplate rotor
| 4000 | 2×4×96 well | 3210 |
G18-4 | Microplate rotor | 4000 | 2×3×48 well | 2300 |
G18-5 | Swing rotor | 4000 | 4×40×7ml vacuum tube | 3270 |
G18-6 | 4000 | 4×40×5ml vacuum tube | 2890 | |
G18-7 | 4000 | 4×28×10ml vacuum tube | 3130 | |
G18-8 | Swing Rotor | 4000 | Fat bottle | 3830 |
G18-9 | Fixed Rotor | 16000 | 4×8PCR | 15760 |
G18-10 | Fixed Rotor | 15000 | 6×8PCR | 21420 |
G18-11 | Fixed Rotor | 16000 | 8×8PCR | 17480 |
G18-12 | Fixed Rotor | 15000 | 12×8PCR | 22930 |
G18-13 | Fixed Rotor | 15000 | 40×0.5ml | 22920 |
G18-14 | Fixed Rotor | 18500 | 12×1.5ml | 23990 |
G18-15 | Fixed Rotor | 16000 | 24×1.5ml | 23440 |
G18-16 | Fixed Rotor | 14000 | 30×1.5ml | 20800 |
G18-17 | Fixed Rotor | 13000 | 48×1.5ml | 17930 |
G18-18 | Fixed Rotor | 16000 | 16×5ml | 22020 |
G18-19 | Fixed Rotor | 16000 | 6×10ml | 21500 |
G18-20 | Fixed Rotor | 15000 | 12×10ml | 22680 |
G18-21 | Fixed Rotor | 13000 | 16×10ml | 19490 |
G18-22 | Fixed Rotor | 13000 | 8×15ml | 17790 |
G18-23 | Fixed Rotor | 11000 | 12×15ml | 14330 |
G18-24 | Fixed Rotor | 5000 | 24×15ml | 3500 |
G18-25 | Fixed Rotor | 5000 | 30×15ml | 3830 |
G18-26 | Fixed Rotor | 14000 | 6×30ml | 19060 |
G18-27 | Fixed Rotor | 13000 | 6×50ml(conical) | 18840 |
G18-28 | Fixed Rotor | 13000 | 6×50ml(round) | 18730 |
G18-29 | Fixed Rotor | 5000 | 12×50ml | 3860 |
G18-30 | Fixed Rotor | 4000 | 24×50ml | 2970 |
G18-31 | Fixed Rotor | 13000 | 4×85ml | 18940 |
G18-32 | Fixed Rotor | 12000 | 4×100ml | 14850 |
G18-33 | Fixed Rotor | 10000 | 6×100ml | 11380 |
G18-34 | Fixed Rotor | 4000 | 12×100ml | 2970 |
G18-35 | Fixed Rotor | 12000 | 24 capillaries | 15800 |
G18-36 | Swing Rotor | 15000 | 4×5ml | 19920 |
G18-37 | Vertical rotor | 16000 | 16×5ml | 16450 |
G18-38 | Vertical rotor | 14000 | 8×30ml | 19750 |
