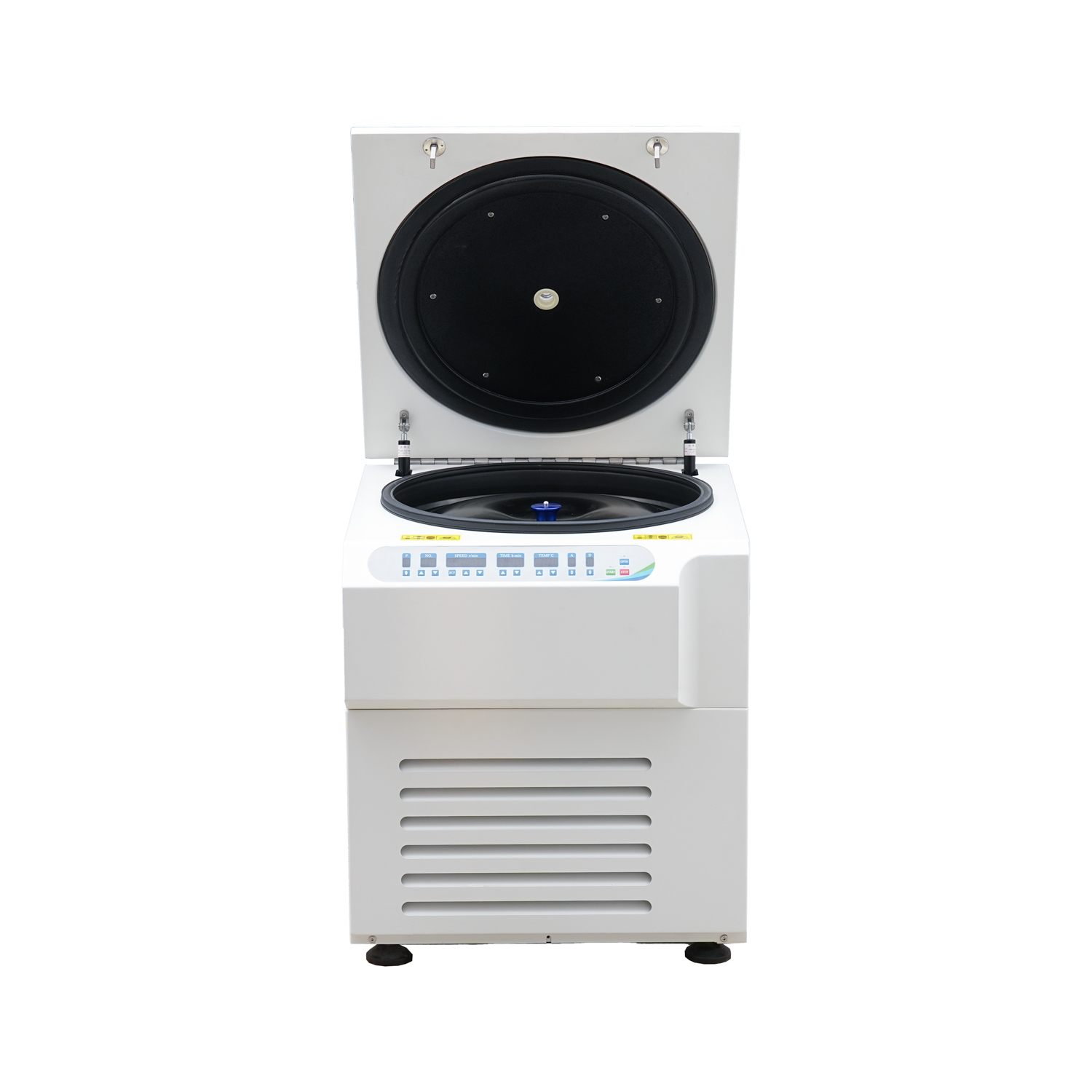

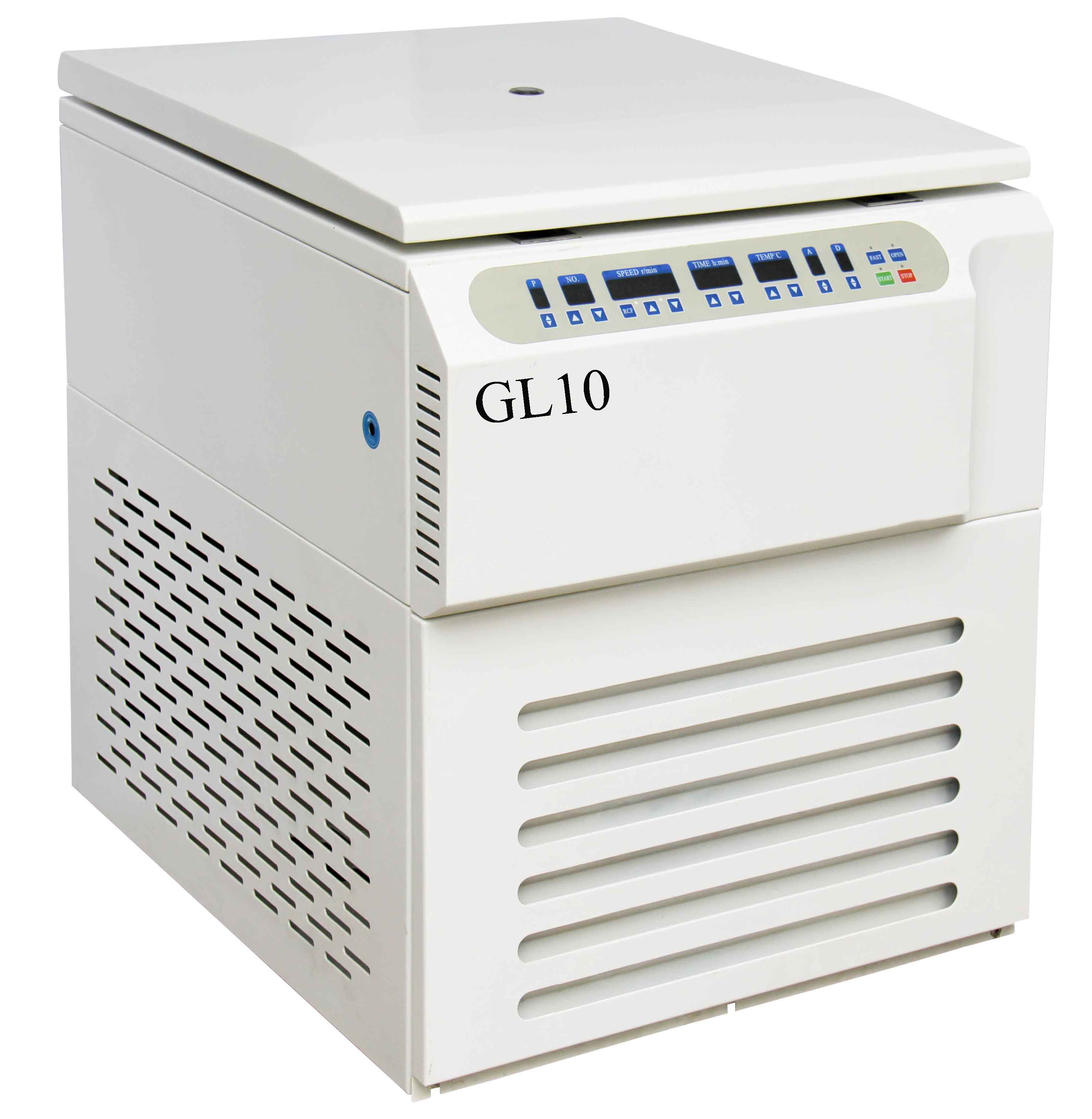

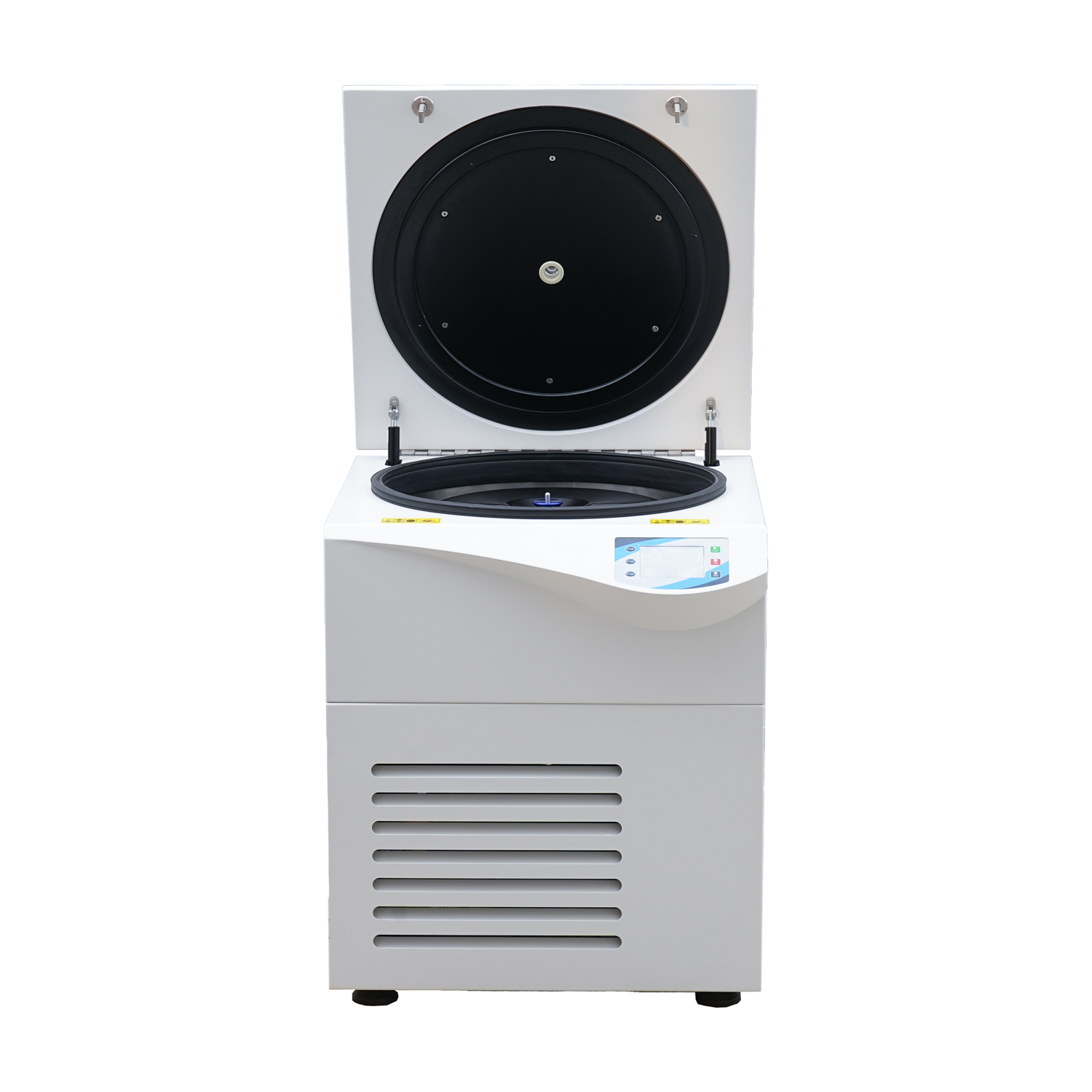

GL10 High Speed Refrigerated Centrifuge
Widely used in the field of pharmaceutical factory and laboratory
GL10 High Speed Refrigerated Centrifuge
Features
1. Widely used in the field of pharmaceutical factory and laboratory.
2. Brushless frequency motor, in great torque, free maintenance, no powder pollution, quick in speed up and down.
3. Digital display which indicates the program, speed, time,RCF, temperature.
4. Micro computer control, there are 10 kinds of program and 10 kinds of acceleration and deceleration for your choice.
5. Kinds of rotors for your choice.
6. Electric lid lock, compact design, super speed and imbalance protection.
7. The centrifuge body is made of high-quality steel, safe and reliable.
GL10 Technical Parameter：
Max. Speed | 10000rpm |
Max. RCF | 15730×g |
Max. Capacity | 6×1000ml |
Time Range | 1~9h59min |
RPM/RCF Convert | Yes |
Noise (dB) | ≤ 65 |
Temperature | -20~40℃ |
Acc/Dec | 10 Kinds |
Speed Accuracy | ±20r/min |
Temperature Accuracy | ±1℃ |
Voltage(V/Hz) | AC 380V/220V 50HZ/60HZ |
Size (W x D x Hmm) | 940×735×1260mm |
Net Weight(Kg) | 380KG |
Certificates | CE,ISO & Calibration report are available |

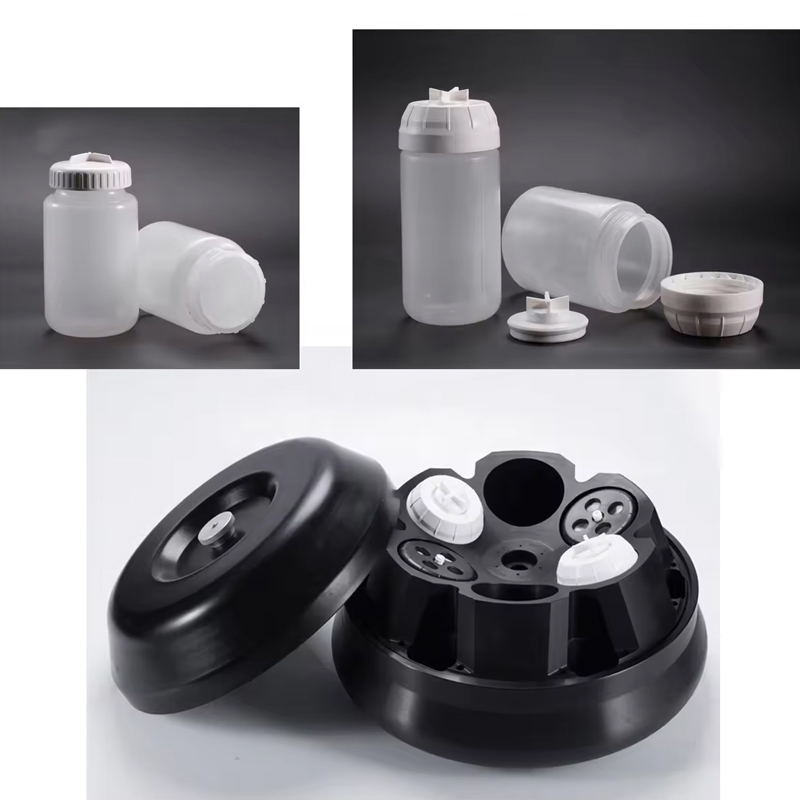

Matched Rotors for GL10
No. | Rotor No. | Max Speed (rpm) | Max Volume (ml) | Max.RCF(×g) |
G10-1 | Angle Rotor | 7200 | 6×1000ml | 12326 |
G10-2 | Angle Rotor | 9000 | 6×500ml | 14860 |
G10-3 | Angle Rotor | 10000 | 6×300ml | 15730 |
G10-4 | Swing Rotor | 4200 | 6×1000ml | 5100 |
