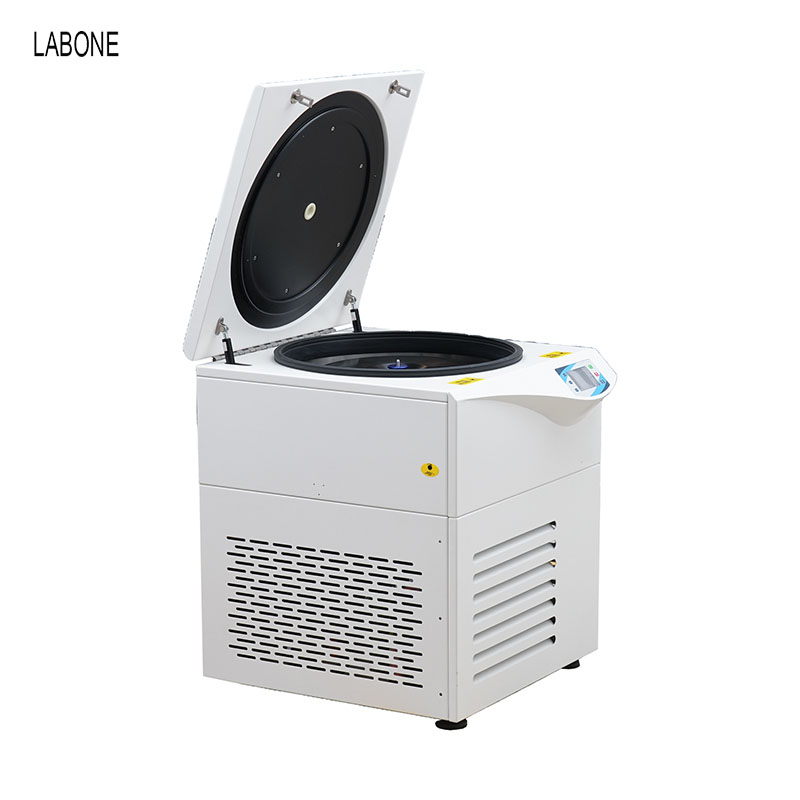

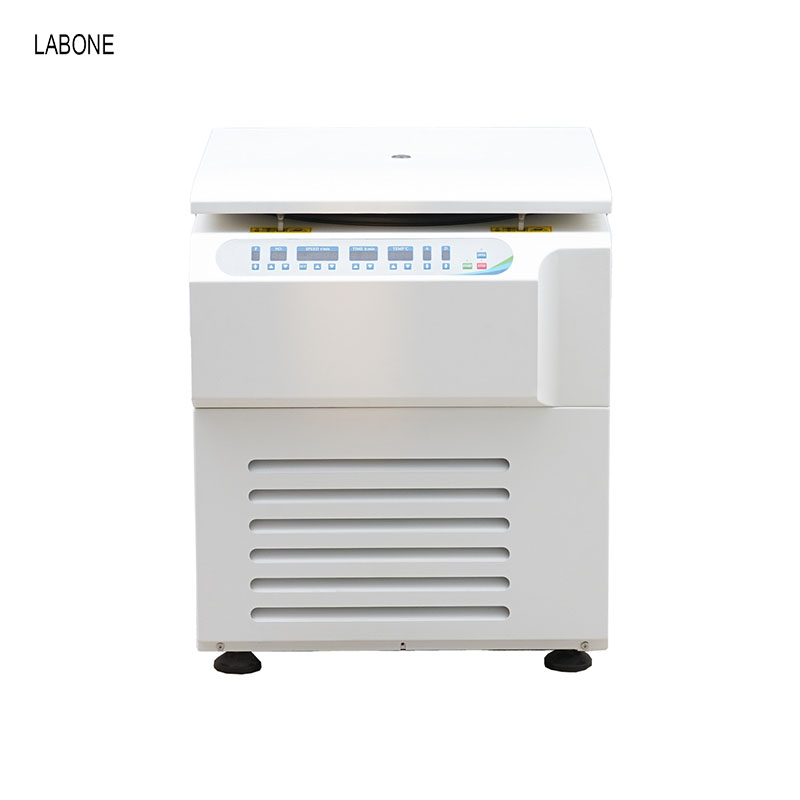

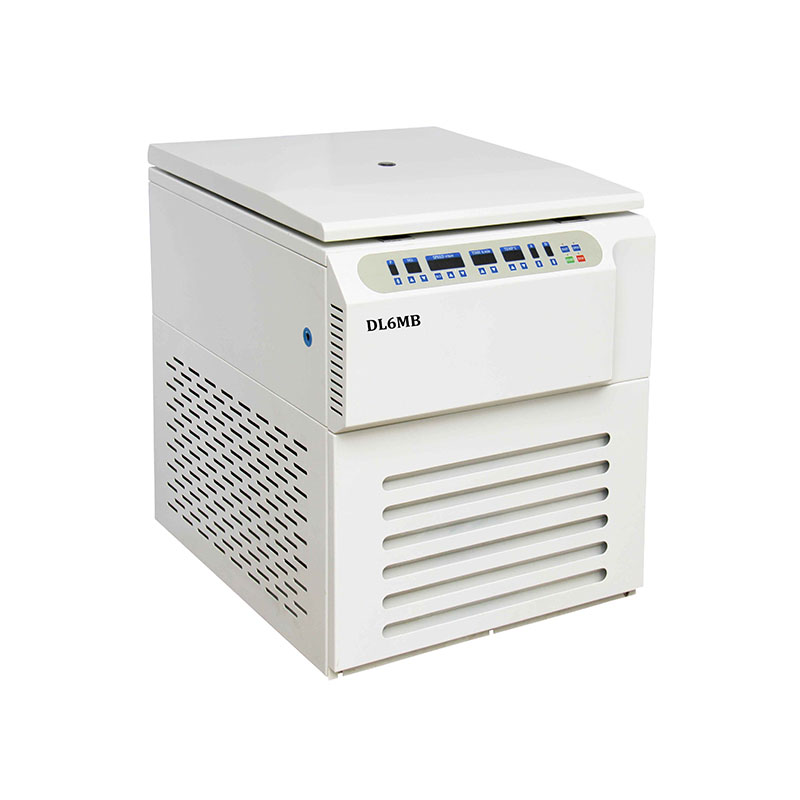

DL6MB Large Capacity Refrigerated Centrifuge(Blood Bank Centrifuge)
Application Range:Blood stationPharmaceutical factoryBiochemicalBlood separationProtein precipitationCell separation collection
DL6MB Large Capacity Refrigerated Centrifuge(Blood Bank Centrifuge)
Application Range:
Blood station
Pharmaceutical factory
Biochemical
Blood separation
Protein precipitation
Cell separation collection

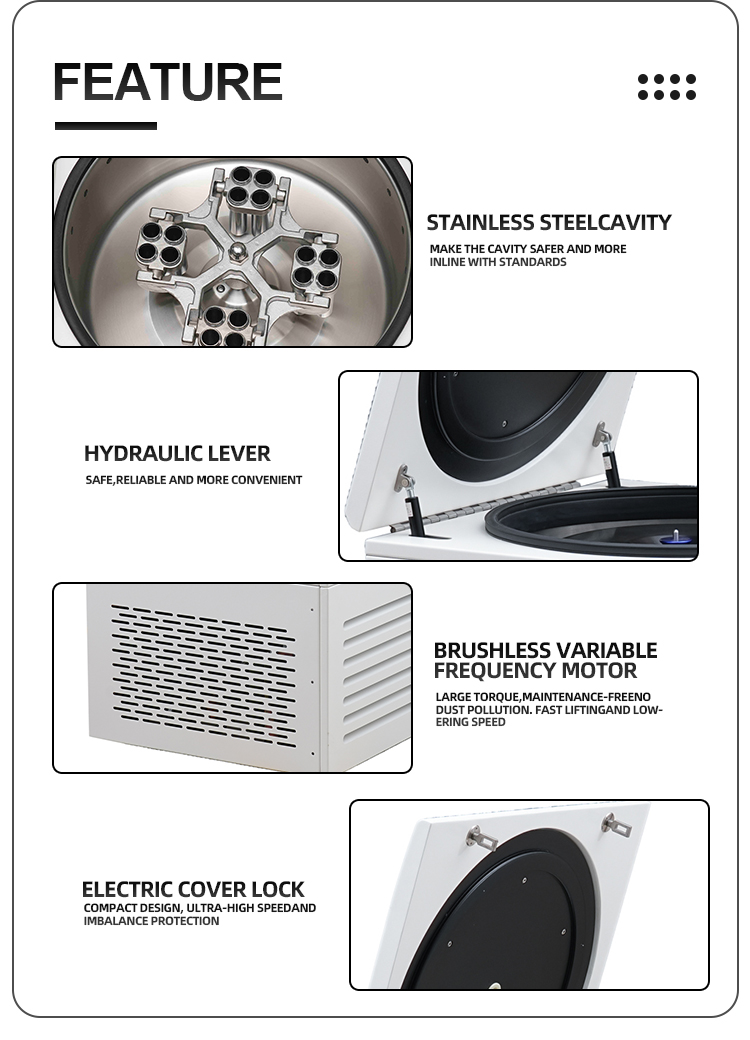

Features
1. Widely used in the field of blood bank, pharmaceutical factory and laboratory.
2. Brushless frequency motor, in great torque, free maintenance, no powder pollution, quick in speed up and down.
3. Digital display which indicates the program, speed, time,RCF, temperature.
4. Micro computer control, there are 10 kinds of program and 10 kinds of acceleration and deceleration for your choice.
5. There are 6 kinds of rotors for your choice.
6. Electric lid lock, compact design, super speed and imbalance protection.
7. The centrifuge body is made of high-quality steel, safe and reliable.
DL6MB Technical Parameter：
Max. Speed | 6000rpm |
Max. RCF | 6600×g |
Max. Capacity | 6×1000ml(6*500ml blood bag） |
Timer | 1~9h59min |
RPM/RCF Convert | Yes |
Noise (dB) | ≤ 60 |
Temperature Range | -20~40℃ |
Acc/Dec | 10 Kinds |
Speed Accuracy | ±20r/min |
Temperature Accuracy | ±1℃ |
Voltage(V/Hz) | AC 220V 50HZ/60HZ |
Size (L x W x Hmm) | 800×740×930mm |
Net Weight(Kg) | 310KG |
Certificates | CE,ISO & Calibration report are available |

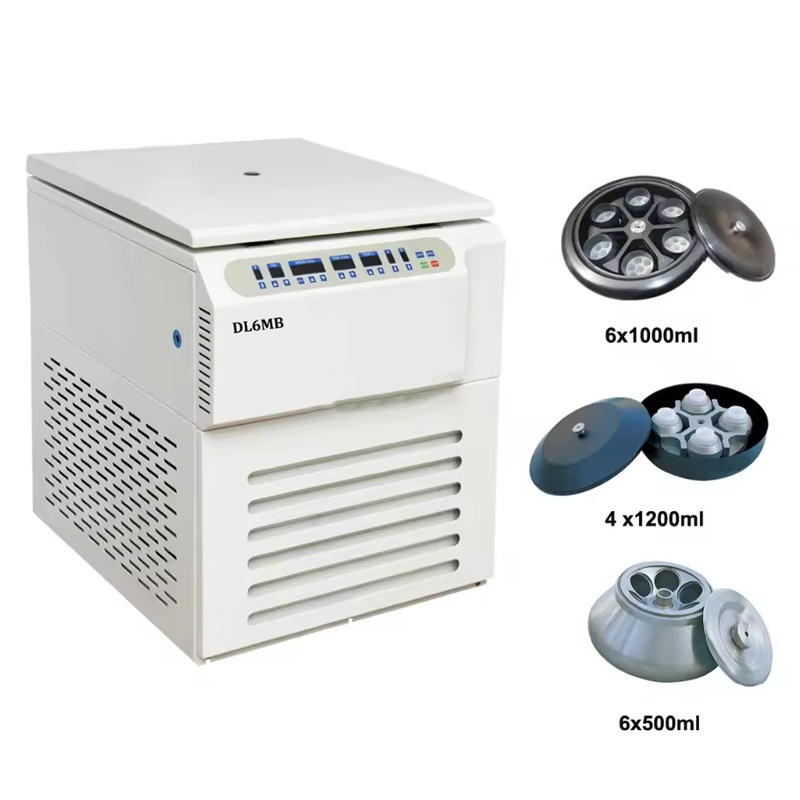

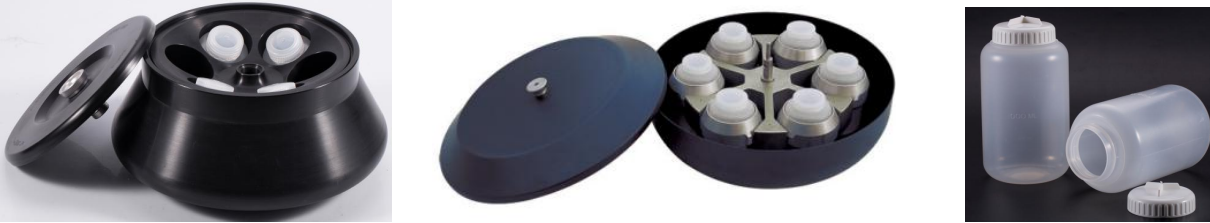

Matched Rotors for DL6MB
Order No. | Rotor | Max Speed (rpm) | Max Volume (ml) | Max.RCF（×g） |
6MB-1 | Swing Rotor | 4200 | 6×1000ml | 5100 |
6MB-2 | Angle Rotor | 6000 | 4×300ml | 5390 |
6MB-3 | Angle Rotor | 6000 | 6×300ml | 5660 |
6MB-4 | Angle Rotor | 6000 | 6×500ml | 6600 |
