ND200-2 Nitrogen Sample Concentrator 24 Position Concentrator Dry Nitrogen Evaporator for Food Environmental Residue Analysis

Sample Concentrator—ND200-2Description:ND200-2 Sample Concentrator is with microprocessor controlled and PID fuzzy contr

Sample ConcentratorND200-2001.jpg

Description:

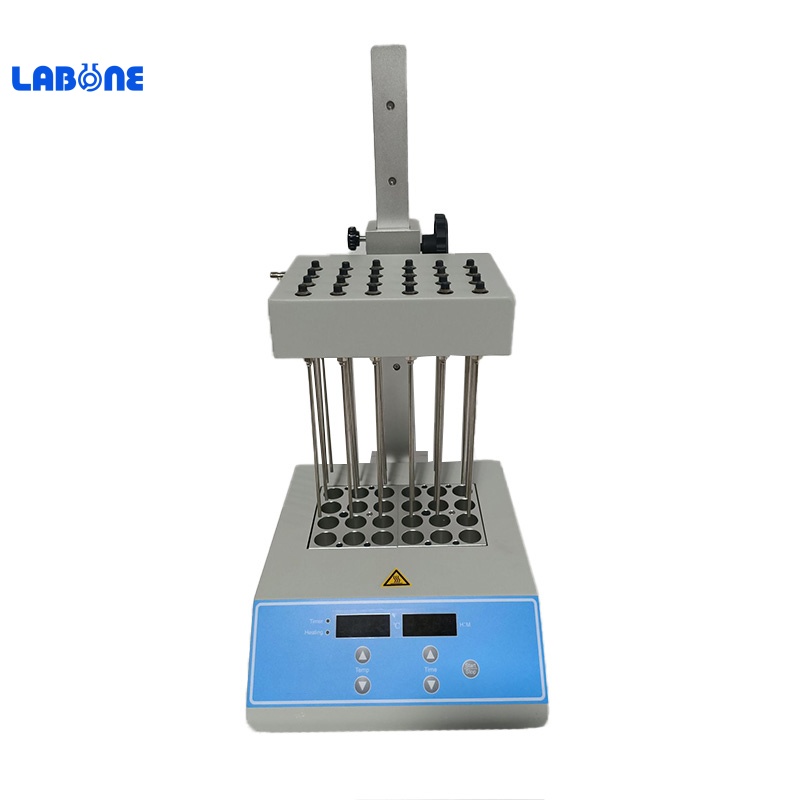

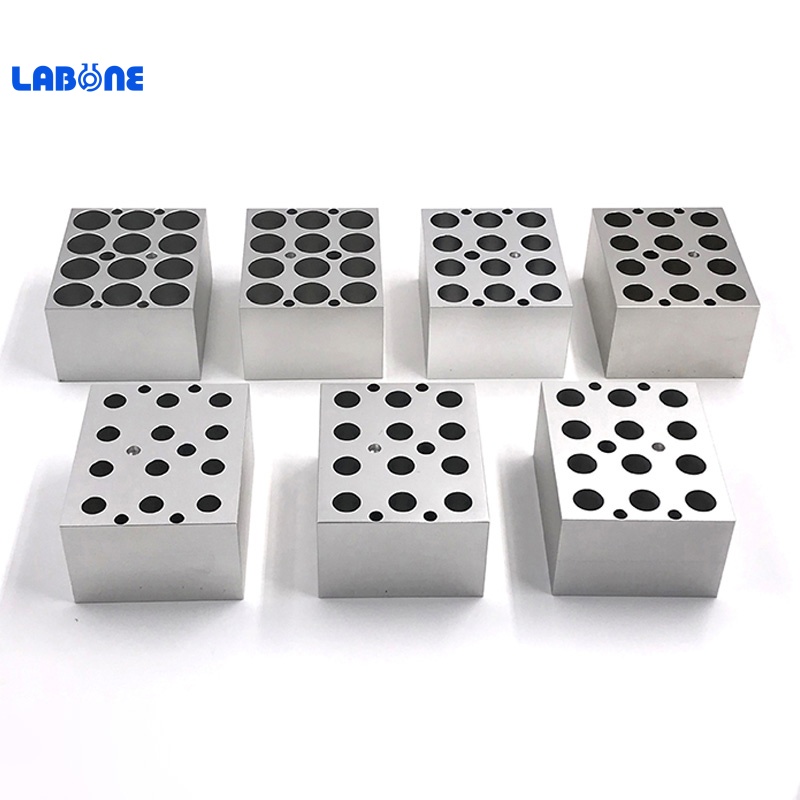

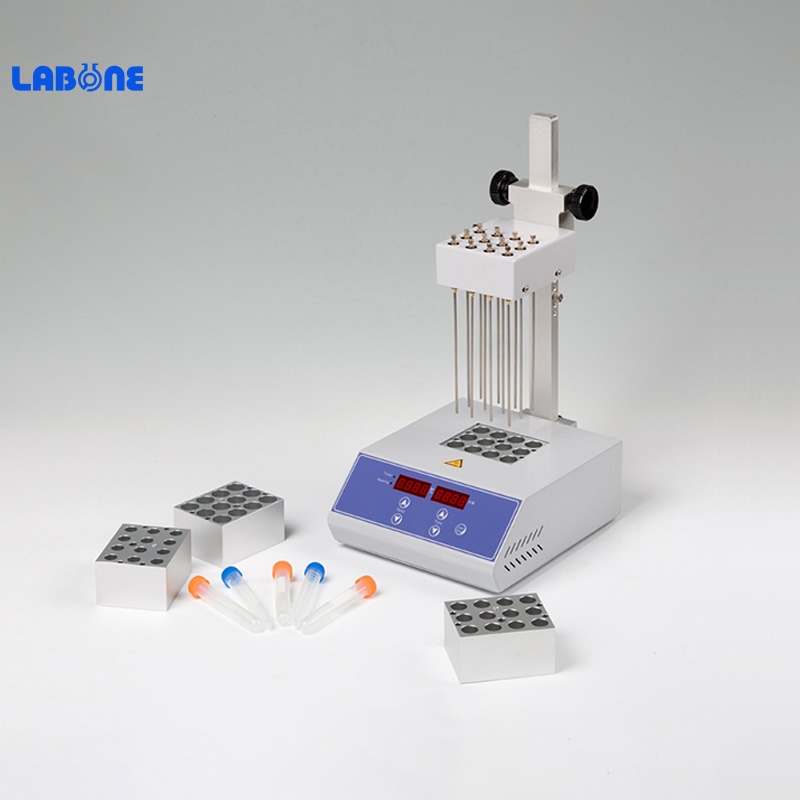

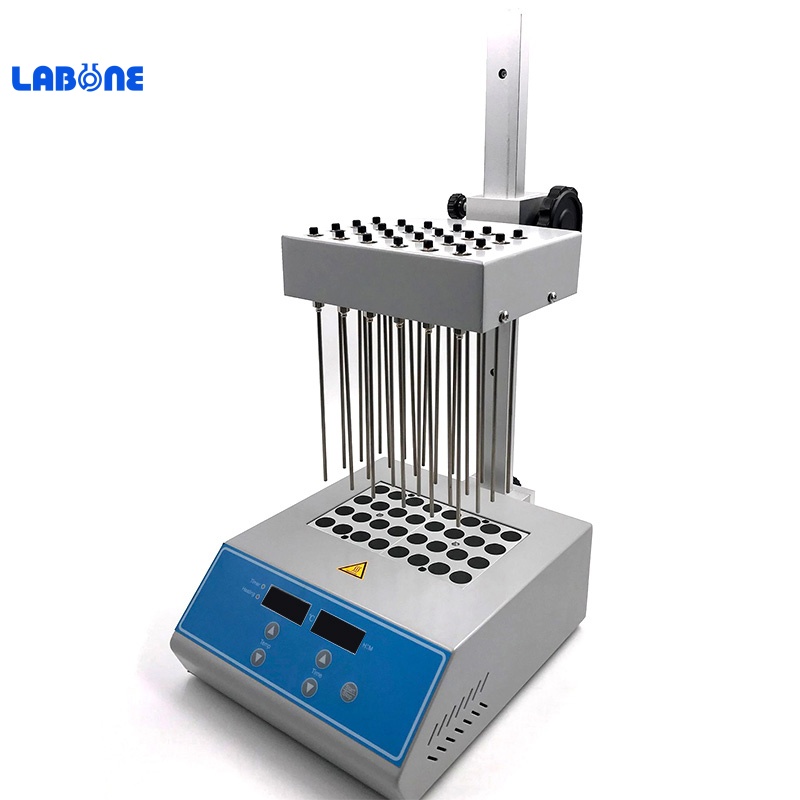

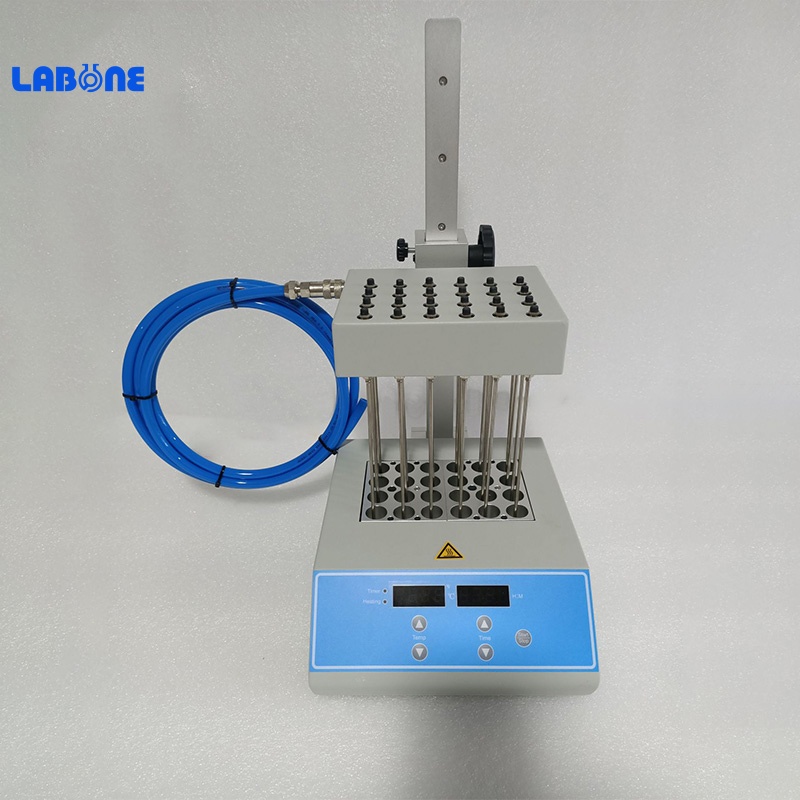

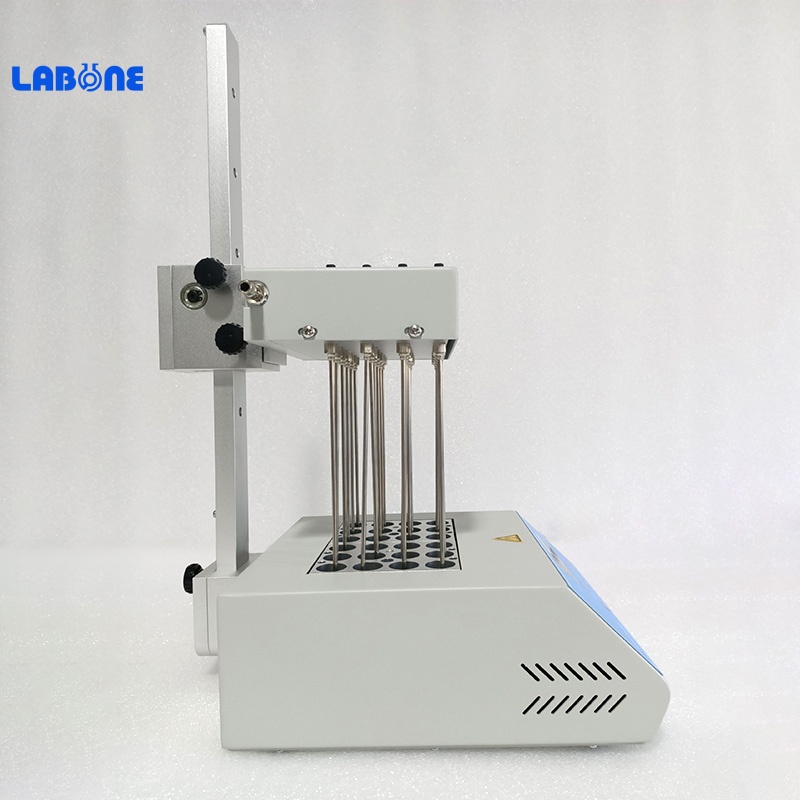

ND200-2 Sample Concentrator is with microprocessor controlled and PID fuzzy controlled technique. Instead of traditional water bath device, the heat-conducting medium is high purity aluminum. The Test tubes are held in a block, and blowing a large number of samples at one time. It can be used in residue analysis, commodity inspection, food, environment, pharmacy and biological product and other industries.



Features:

High precision and wide range of tamp control.
Blowing a large number of samples at one time.
Blowing each sample independently.
Amount of airflow can be adjusted.
Easy operation; safe and reliable to use.







Applications:

Analysis of pesticide residues: vegetables, fruits, cereals, plant tissue.

Environmental analysis: such as drinking water, groundwater and polluted water samples.

Biological analysis: such as hormone analysis, sample preparation of liquid phase and gas phase and mass spectrometry analysis.

Food and beverage: such as milk, wine, beer, etc.

Pharmaceutical drug testing: such as traditional Chinese medicine pharmaceutical, drug screening.


Parameters:

Model

ND200-2

Temp range

RT.+5-160℃

Temp accuracy

±0.5(@40)

Temp accuracy

±1(@120)

Temp uniformity

≤±0.5℃

Display accuracy

0.1℃

Timing range

1min-99h59min/∞

Heating time

≤15min(from 25 to 160)

Needle length

150mm

Nitrogen flow rate

15L/min

Nitrogen pressure

0.1Mpa

Block quantity

2

Max power

500W

Voltage

AC220V or AC110V, 50/60Hz

Dimension(mm)

260X220X475

Weight(kg)

7.5
