RC-3 Dissolution tester

RC series of instruments are used for detecting velocity and extent of pharmic dissolution from tablet, capsule etc in prescriptive menstruum

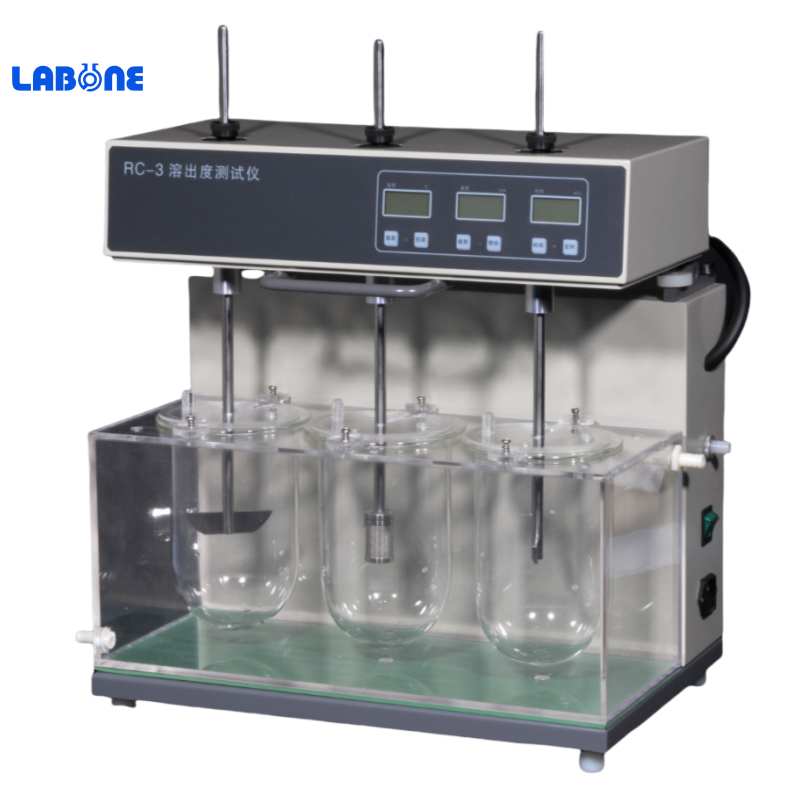

RC-3 Dissolution tester



 RC series of instruments are used for detecting velocity and extent of pharmic dissolution from tablet, capsule etc in prescriptive menstruum.

     Applicable standards:

·  National standard( Chinese codex ) /2015

·  Industry standard(Dissolution tester )JB/T 20105-2007

     Features:

·  It has three vessels and three poles arranged on one line.

·  The head part of the instrument can be artificially turned over smoothly and flexibly.

·  The basket units and paddle units are made of imported stainless steel (SUS316L).

·  The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.

·  A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.

·  It can be operated conveniently by keystroke. The measurement result is displayed by LCD. The preset and real data can be displayed alternately in time.

·  Automation: auto-test, auto-diagnose, auto-alarm.

     Specifications:

·

Speed accuracy

Speed range (20~200)rpm ±2rpm

Temperature range ambient to

+45.0

Temperature Stability

±0.3

Preset timing nine points

(5~900)min

Time accuracy

±0.5mm

Paddle radial run-out

±0.5mm

Basket radial run-out

±1.0mm

 Power

220V/50Hz/600W or 110V/60Hz/600W

Dimension

(510*300*480)mm3
