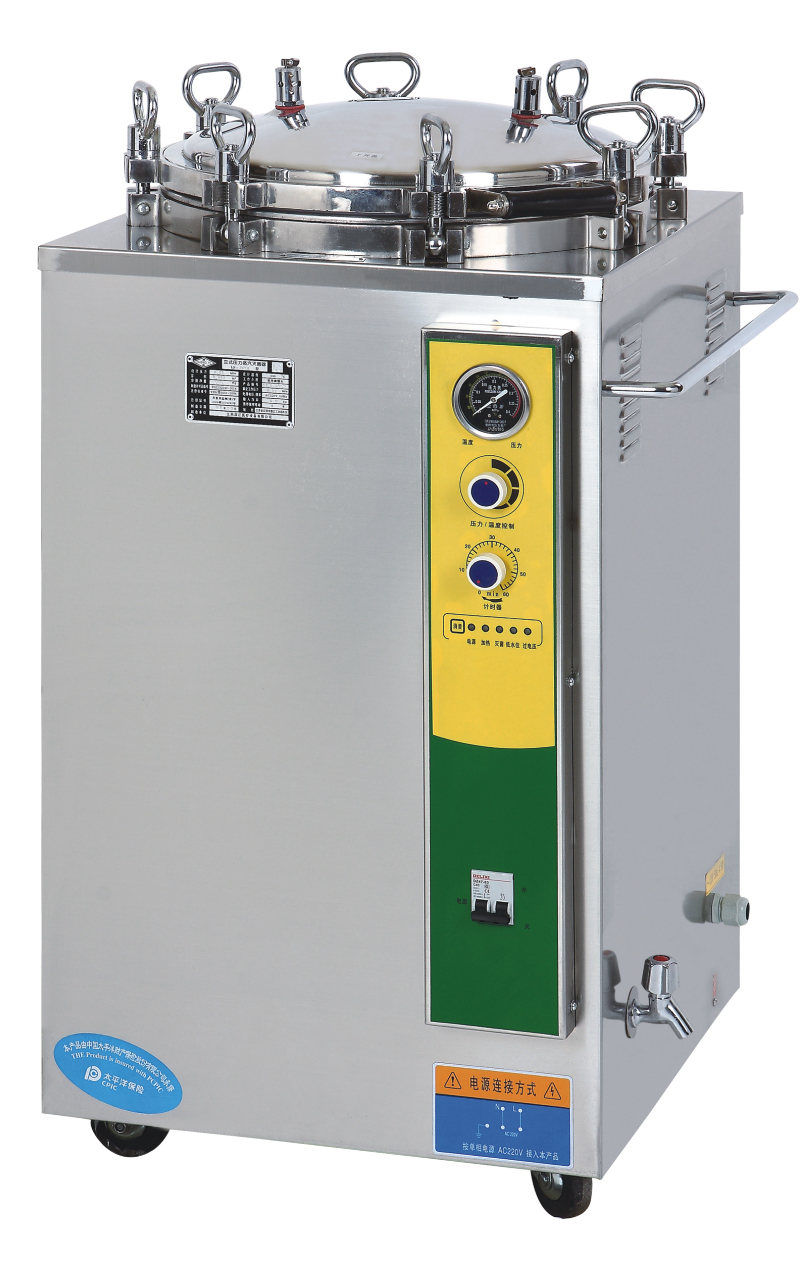

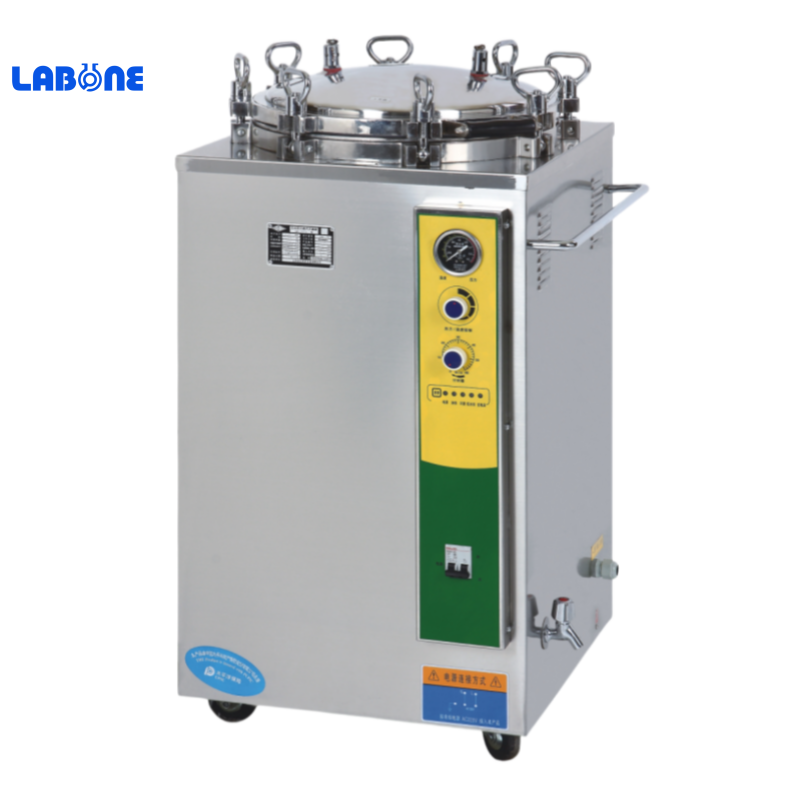

LS-100LJ Vertical Pressure Sterilizer

Indicator light indicates working state, Over-tempoune over-pressure auto-protection device,Double scale indication pressure gauge,Safe protection of water lacking.,With the below exhaust structure,which is convenient to exhaust the cold air.,Auomat

Send request

Ask for price

Characteristics:
1.Indicator light indicates working state

2.Over-tempoune & over-pressure auto-protection device

3.Double scale indication pressure gauge.

4.Safe protection of water lacking.

5.With the below exhaust structure,which is convenient to exhaust the cold air.

6.Auomatically shut off with beep reminding after sterilization

7. Fully stainless steel structure.

8.Easy to operate safe and reliable.

9.With two stainless steel sterilizing baskets

Technical Data：

Technical Data Data MODEL MODE	LS-35LJ	LS-50LJ	LS-75LJ	LS-100LJ	LS-120LJ	LS-150LJ
Chamber volume	35L(φ318×450) mm	50L( φ340×550) mm	75L(φ400×600) mm	100L(φ440×650) mm	120L(φ480×660) mm	150L(φ510×740) mm
working pressure	0.22MPa
Working temperature	134℃
Max working pressure	0.23 Mpa
Heat average	≤±1℃
Timer scope	0～60min
Temperature adjust range	105～134℃
Power	2.5KW/AC220V.50Hz	3KW /AC220V.50Hz	4.5KW /AC220V.50Hz		3×2.0KW /AC220V.50Hz
Overall dimension(mm)	480×460×850	520×520×980	560×560×980	590×590×1080	630×610×1130	660×640×1130
Transport dimension(mm)	570×550×970	590×590×1110	650×630×1150	680×650×1220	690×690×1240	730×730×1230
G.W/N.W	56Kg/ 42Kg	68Kg/ 50Kg	90Kg/70Kg	105Kg/85K	116Kg/ 100Kg	130Kg/110Kg
