TM-XD20/24D TABLE TOP STEAM STERILIZER

For 4~6 minutes rapidly sterilizin.Digitall display of working status, touch type key.With 3 fixed cycles of sterilizing program and adjustable for user.The whole process of water ackdling, temperaturerising, sterilizing,crying steam discharging con

TM-XD20/24D TABLE TOP STEAM STERILIZER

fully automatic microcomputer type



Charateristics:

1.For 4~6 minutes rapidly sterilizin.

2.Digitall display of working status, touch type key.

3.With 3 fixed cycles of sterilizing program and adjustable for user.

4.The whole process of water ackdling, temperaturerising, sterilizing,crying steam discharging controlled automatically.

5.Steam-water inner circulation system: no steam discharge, andthe enviranment for sterilizing will be clean and dry.

6.Safe protection of water lacking.

7.Exhaust the cool air automatically.

8.Door safety lock system.

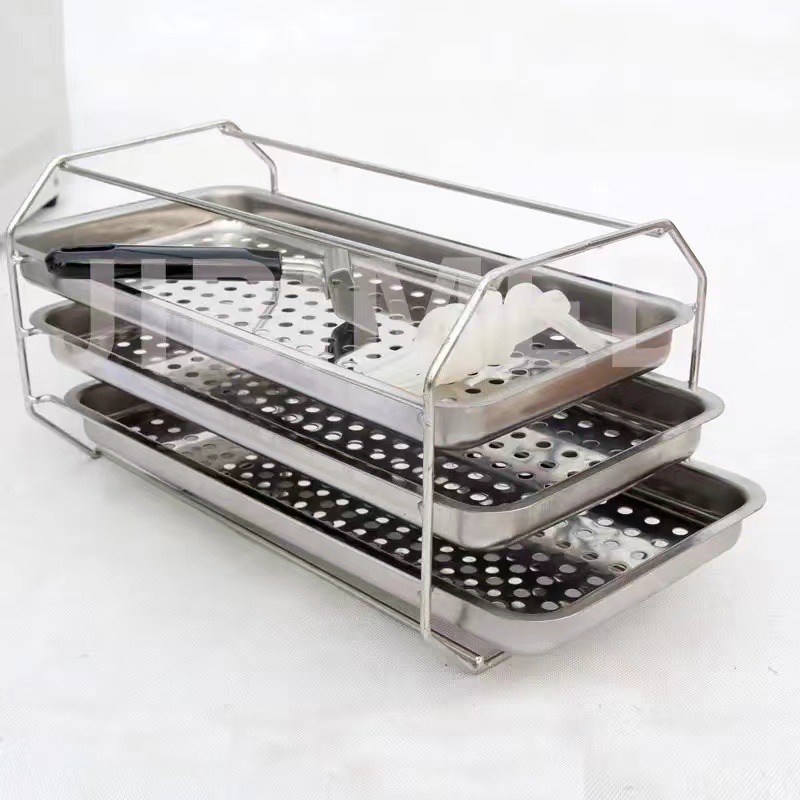

9.With four stainless steel sterilizing plates.

10.The chamber of the sterilizer is made of stainless steel.

11.Automatically shut off with beep reminding after sterilization.

12.With drying function.



Technical data:

TechnicalDataMODEL










TM-XD20D





TM-XD24D



Sterilizing chamber volume

20Lφ250×420 mm

24Lφ250×520 mm

Working pressure

0.22Mpa

working temperature

134℃

Temperature adjust  range

105-134℃

Timer range

0-99min

Heat averagel

≤ ± 1℃

Power

1.5KW / AC220V 50Hz

2KW / AC220V 50Hz

Sterilizing piate(mm)

340×200×30  (3 piece)

400×200×30  (3 piece)

Dimension(mm)

  480×680×455

   480×680×455

Exterior package dimension:(mm)

   580×790×560

   580×790×560

G. W/N.W

53/48 kg

54/549 kg
