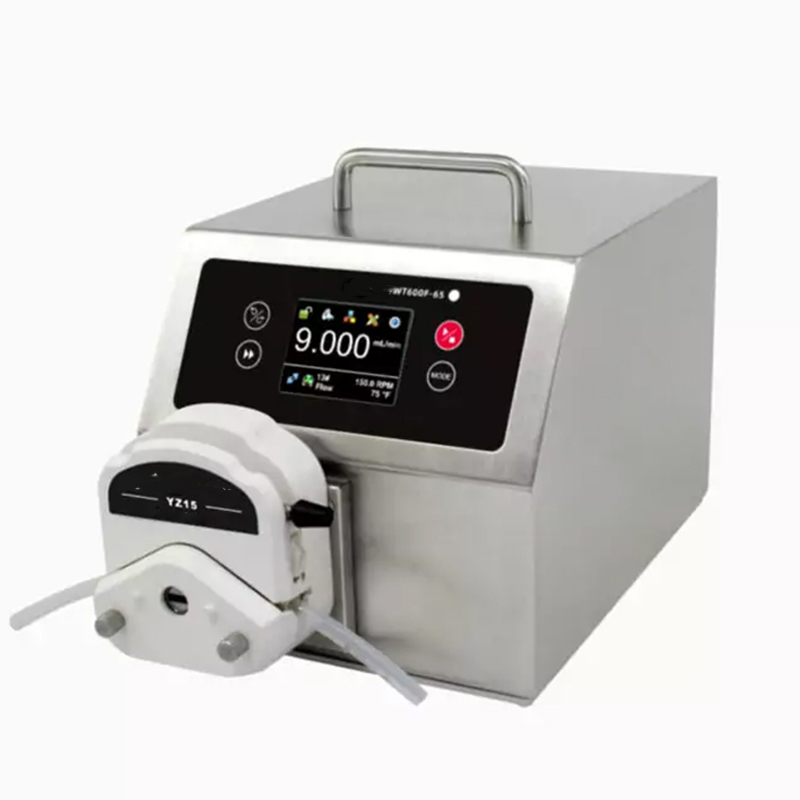

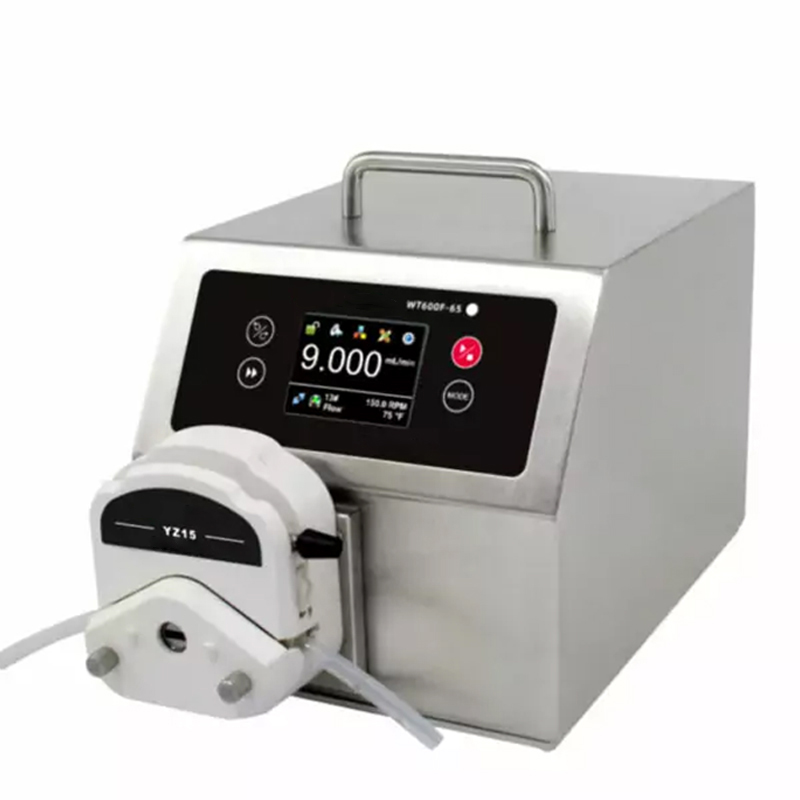

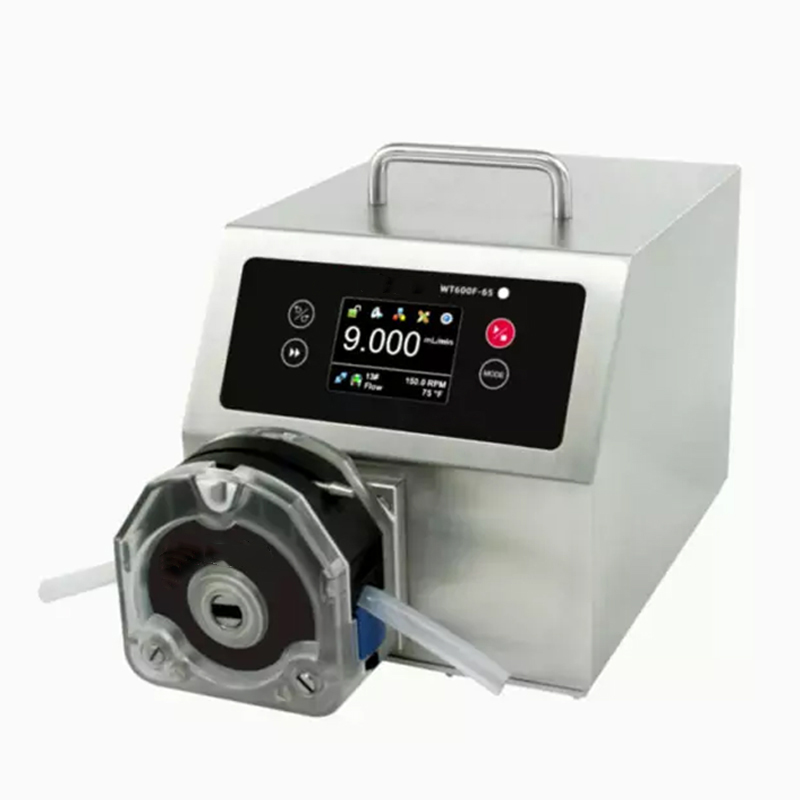

WT600F-65 Intelligent Dispensing Peristaltic Pump

WT600F-65 Intelligent Dispensing Peristaltic Pump

Adopts LF-Touch-OS software system, color LCD touch screen, brushless servo motor, large torque, free maintenance.Stainless steel shell, easy to clean and corrosion resistant. Four working modes: flow rate mode, volume dispensing, time dispensing, copy dispensing, suitable for different working requirements. RS485 communication interface, MODBUS protocol is available. IP65 high protection grade, suitable for harsh working environment such as humidity and dust.

Flow: 0.005～6600mL/min
Max: 2 Channels

Category: High Protection Peristaltic Pump

Tags: dispensing peristaltic pump, industrial hose pumps, industrial peristaltic pump, large flow peristaltic pump, XIANGLU Peristaltic Pump, peristaltic pump manufacturer

Functions and Features

• Four working modes :flow rate mode, volume dispensing, time dispensing, copy dispensing
• Automatically store five groups of working parameters.
• Start/stop, reversible direction, full speed, adjust speed and state memory (power-down memory).
• Flow display, flow control and flow accumulation.
• Speed resolution 0.1rpm.
• Large torque brushless motor drive, more power, free maintenance.
• Wizard flow calibration function.
• Remote Infrared controlling function (Optional).
• The operating expert system guides, guide prompt operation, more convenient.
• Intelligent temperature-control cooling fun reduces working noise.
• External analog speed regulation, external control signal control start-stop, reversible direction, dispensing, external control signal, physical isolation.
• RS485 communication, the MODBUS protocol, convenient connect with various control devices.
• The circuit board is sprayed with three anti paint processes to achieve dust and moisture-proof effect.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• Innovative 304 stainless steel housing, easy to clean, effectively prevent the erosion of various organic solvents.
• Large torque output, cascading multiple pump heads, realize the combination of different pump heads and drivers.

Specifications

Flow Range: 0.005~6600mL/min

Speed Range: 0.1~600rpm

Speed resolution: 0.1rpm

Dispensing volume: 0.001μL～9999L(It is recommended to have a minimum fill of 50μL.)

Dispensing time: 1～999，“0”Infinite cycle

Dispensing interval time: 0.1～999.9 S/Min/H, time unit adjustable

Speed accuracy: ＜±0.2%

Power supply: AC100～240V，50Hz/60Hz

Power consumption: ＜200W

External control: External control input level 5V, 12V(Standard), 24V (Optional). External control analog 0-5V(Standard)，0-10V, 4-20mA (Optional)

Communication interface: RS485 communication interface, Modbus protocol is available, DB15 external control interface

Working environment: Temperature 0 ～ 40℃, relative humidity＜80%

IP grade: IP65

Dimension（L×W×H）: 337mm×200mm×235mm

Weight: 6.7kg

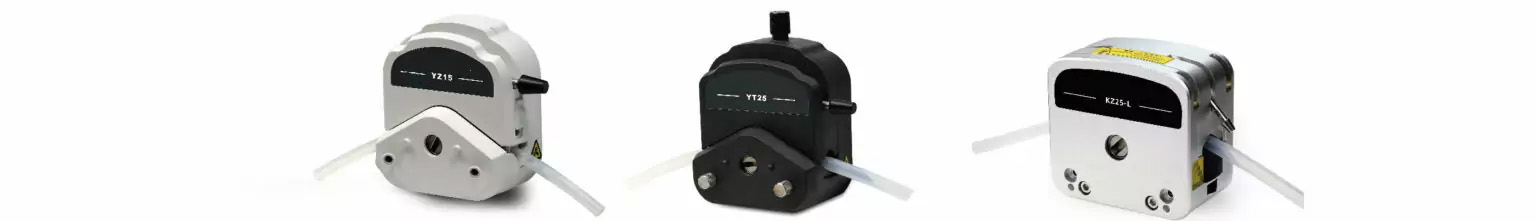

WT600F-65 Applicable Pump Heads and Tubings, Flow Parameters

Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.

Dimension（mm）

Statement：The final explanation right of above information belongs to LABONE
