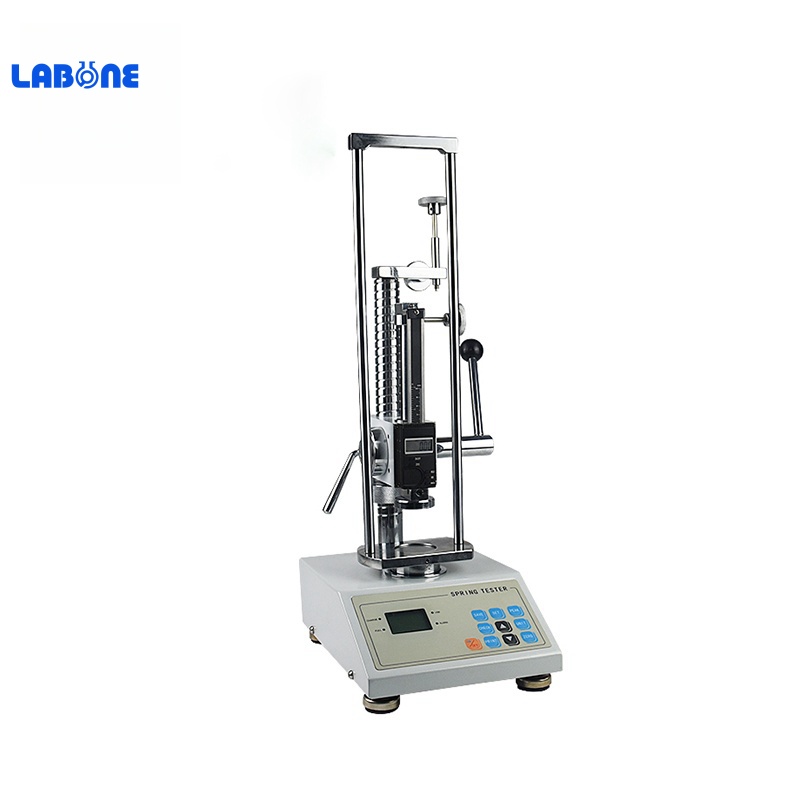

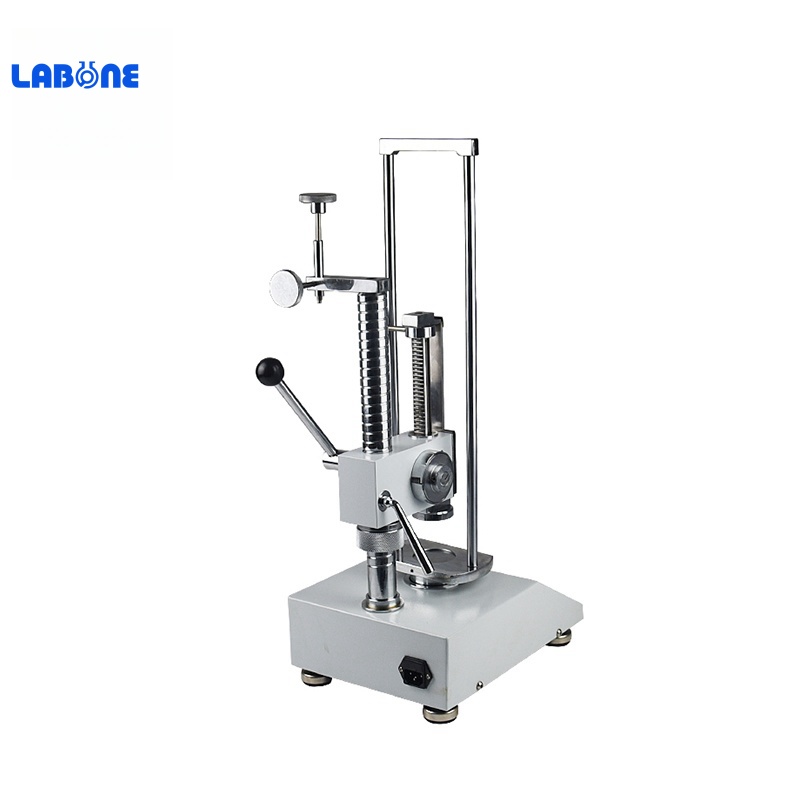

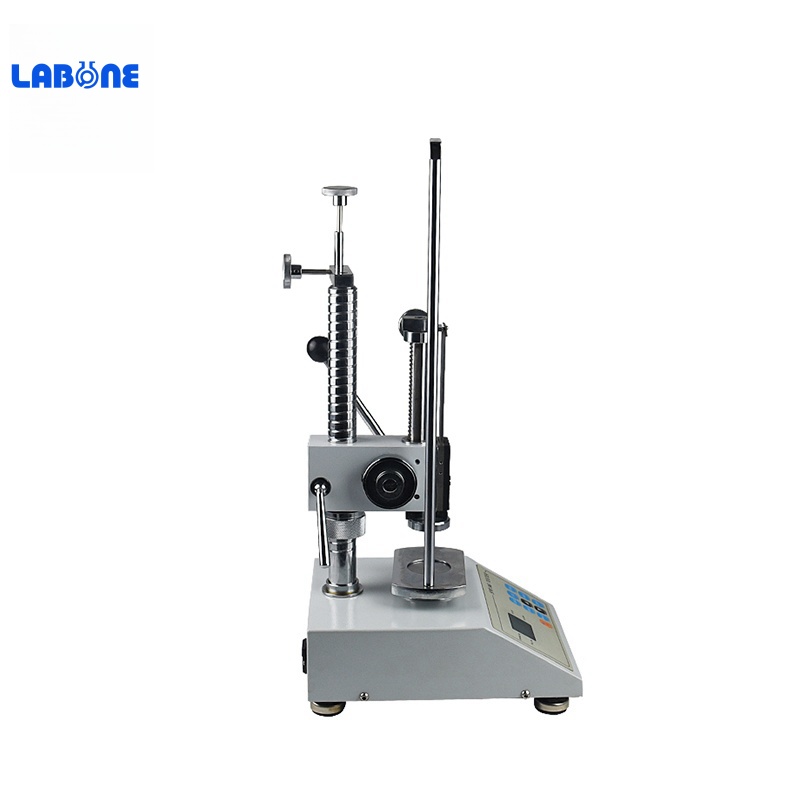

ATH （medium）digital display spring tension and compression testing machine

ATH （medium）digital display spring tension and compression testing machine

Application & Description

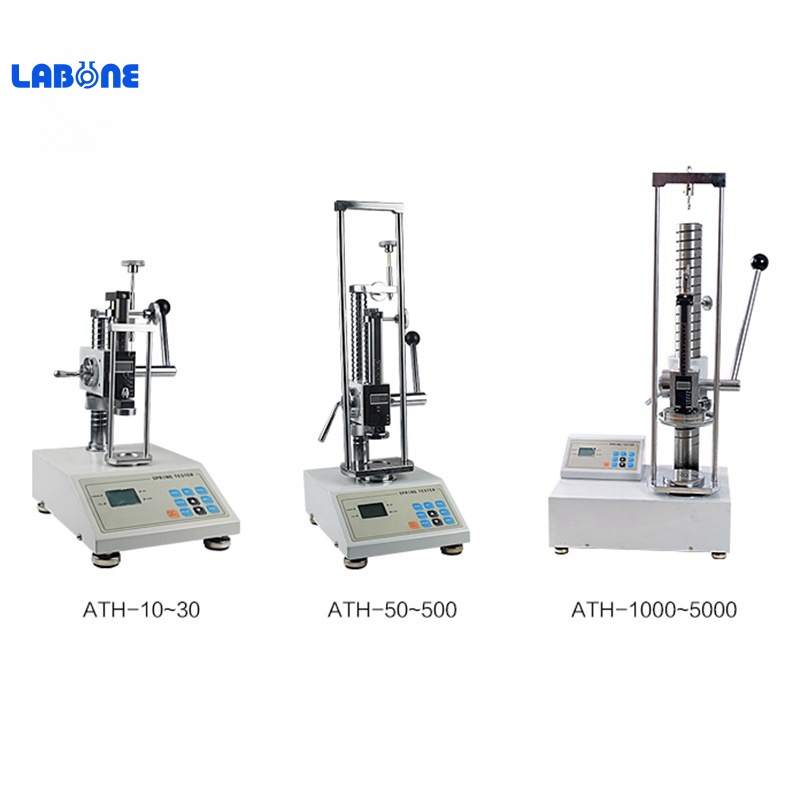

ATH series of digital spring tension and compression testing machine is to test the tensile, compression spring deformation and load characteristics of the special equipment.

For tensile and compression springs under a certain length of work load test, can also be used for spring, rubber and other elastic device elastic load test. The instrument has a print with no print.

Parameter

1.high-precision high-resolution: precision 1, the minimum reading of 0.001N;

2.three kinds of display options: real-time, peak, automatic peak;

3. three units of conversion: N, kg, lb

4.the peak to maintain the function: to capture the test peak;

5.the comparison function: the upper and lower limits of free deviation set, the alarm lights were to traffic lights and peak automatic alarm;

6.the automatic peak function: peak hold time (1 to 99 seconds) free to set;

7. automatic shutdown function: 0 ~ 99 minutes no operation automatically shut down (0 seconds that does not automatically shut down);

8. gravity acceleration function: according to different regions, can be freely set (9.000 ~ 9.999);

9.the calculation function: connected to the computer, you can automatically calculate the maximum value of each test, the minimum, the average;

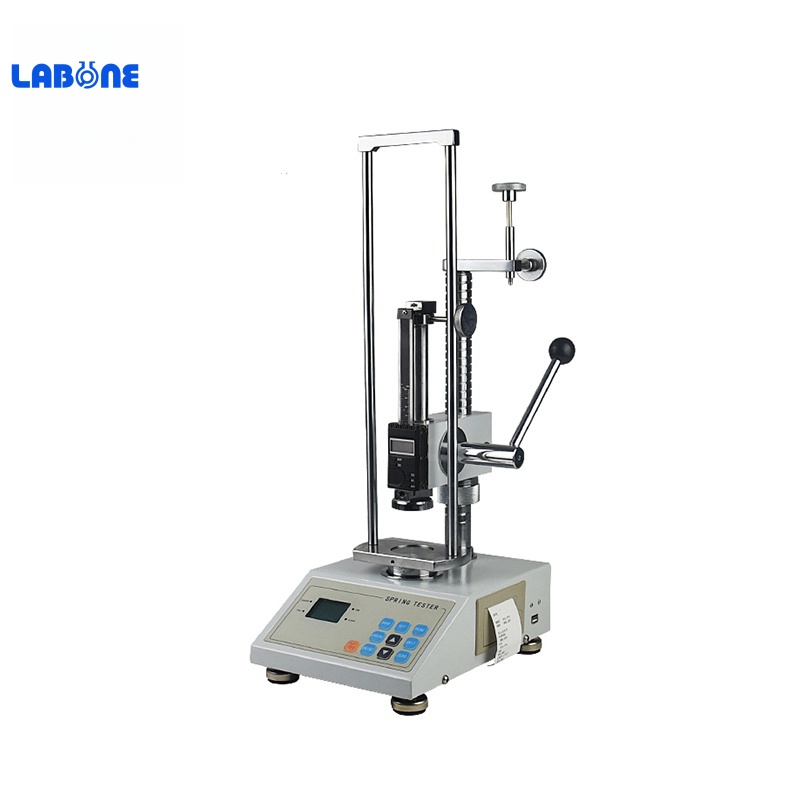

10.built-in printer: can print 99 sets of stored measurement data and the maximum, minimum, average and so on.
