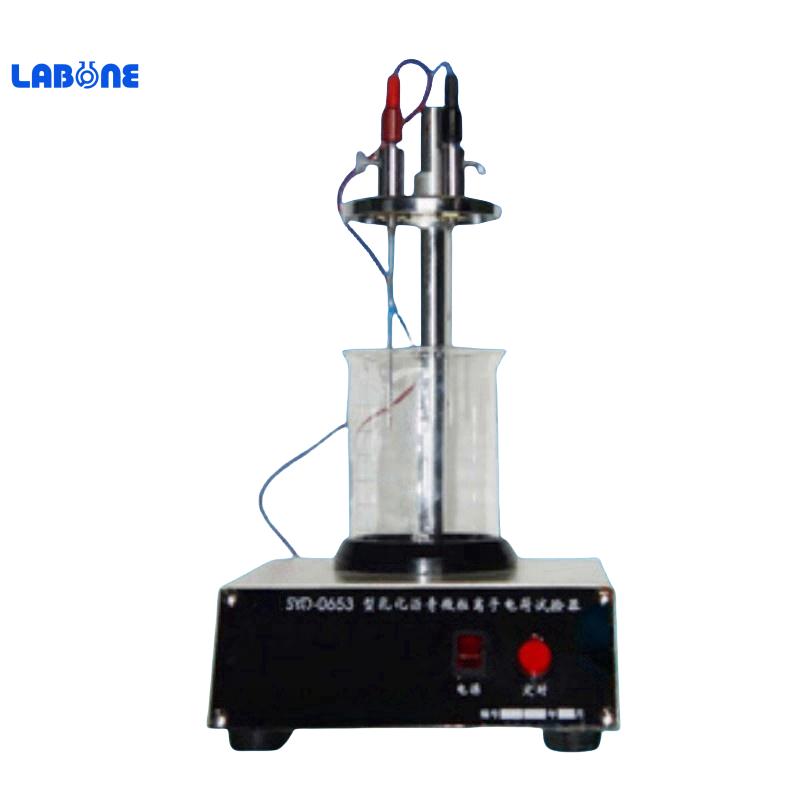

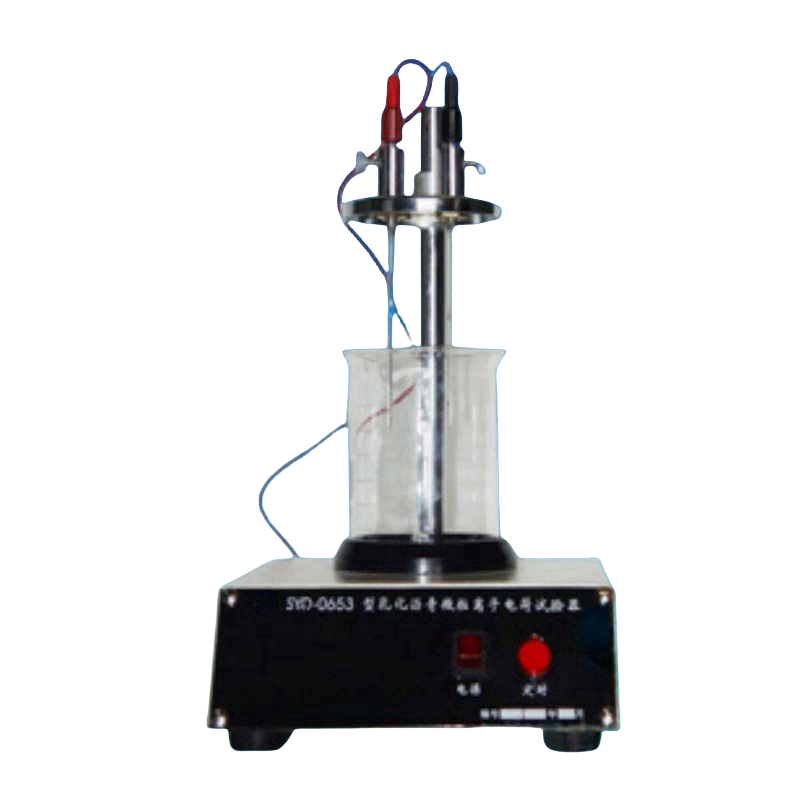

SYD-0653 Emulsified Asphalt Particles Ionic Charge Tester

Summary

This instrument is designed and made as per T 0653 Emulsified Asphalt Particles Ionic Charge Test in Chinese industrial standard JTG E20-2011 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering. It is used to determine the electric charge characteristics of different kinds of emulsified asphalt particles ionics.

I. Main technical features

1. Desktop structure. Novel design and easy to use.

2. All test tools and vessels fully meet requirements of standard T 0653.

3. The outer shell are processed with spraying plastics. It has good anti-corrosive ability.

II. Main technical specifications

Power supply	AC(220±10%)V,50Hz
Working temperature	Room temp.＜35℃
Timing accuracy	3min±6s
Capacity of beaker	300ml
Test voltage	DC(6V±0.3V)
Dimension	280mm×180mm×260mm
