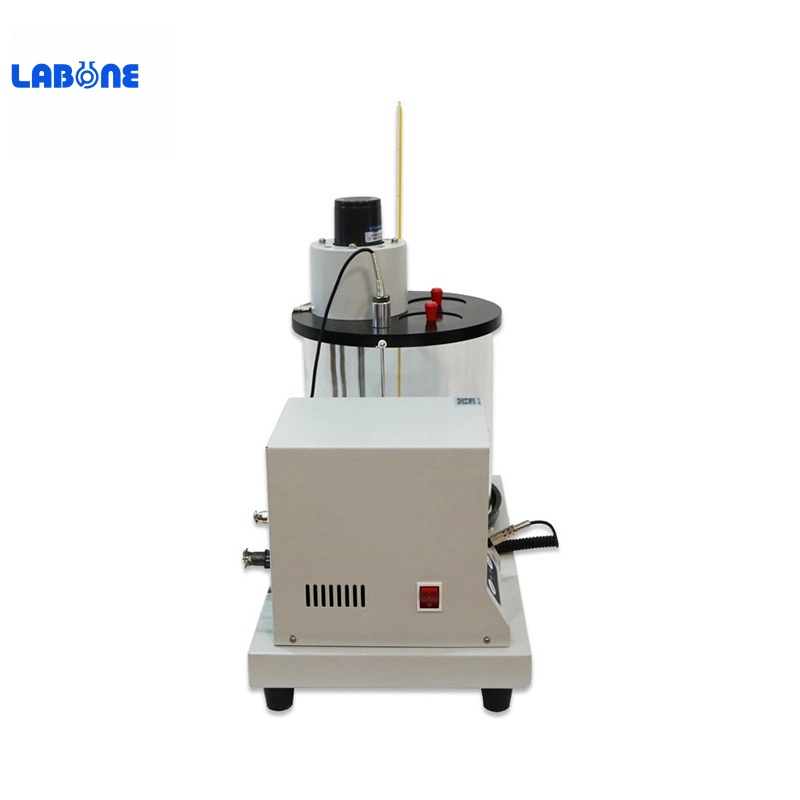

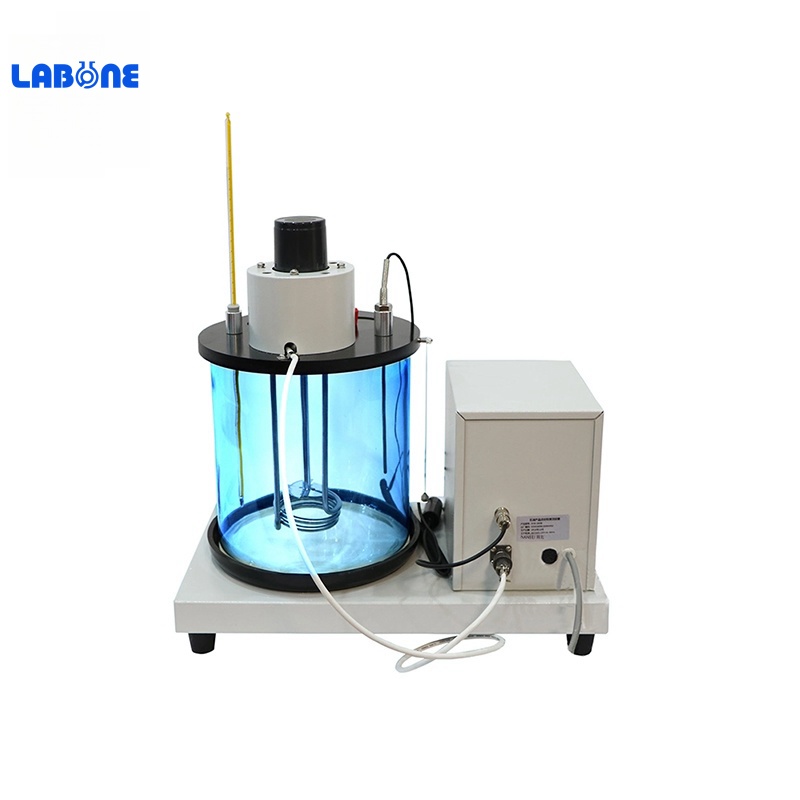

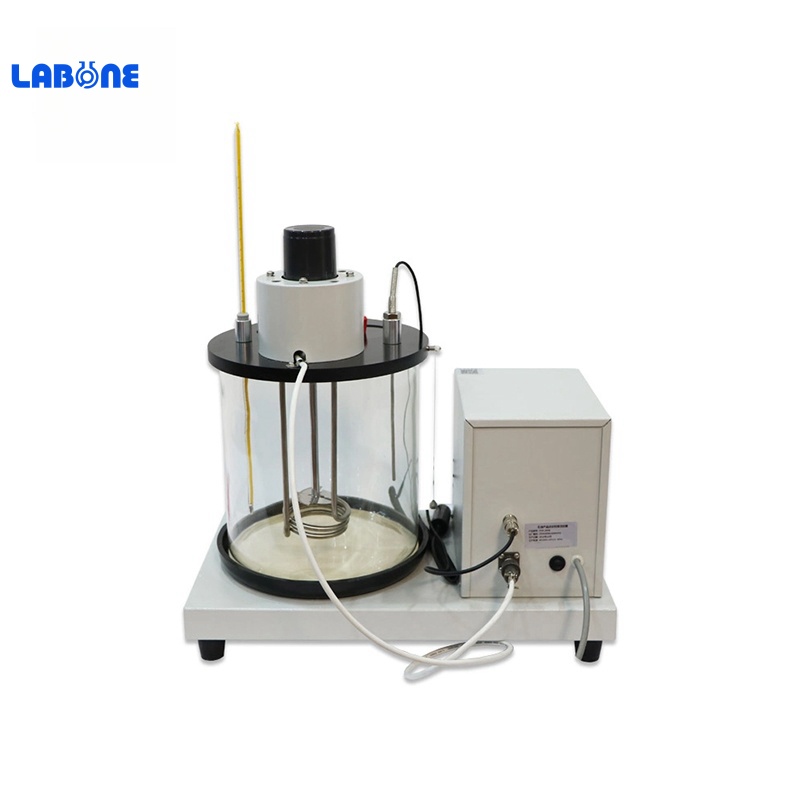

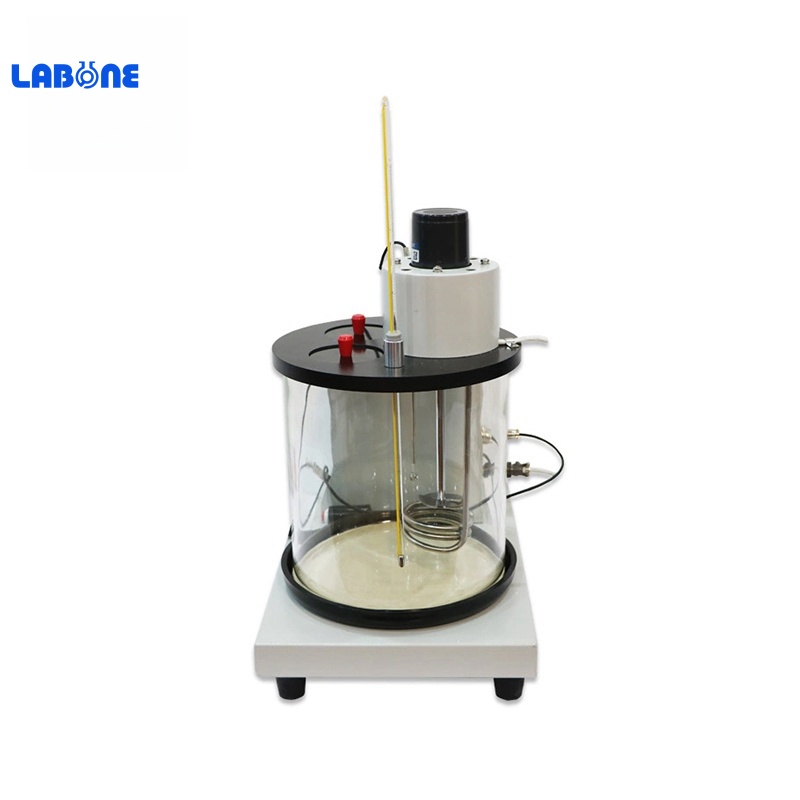

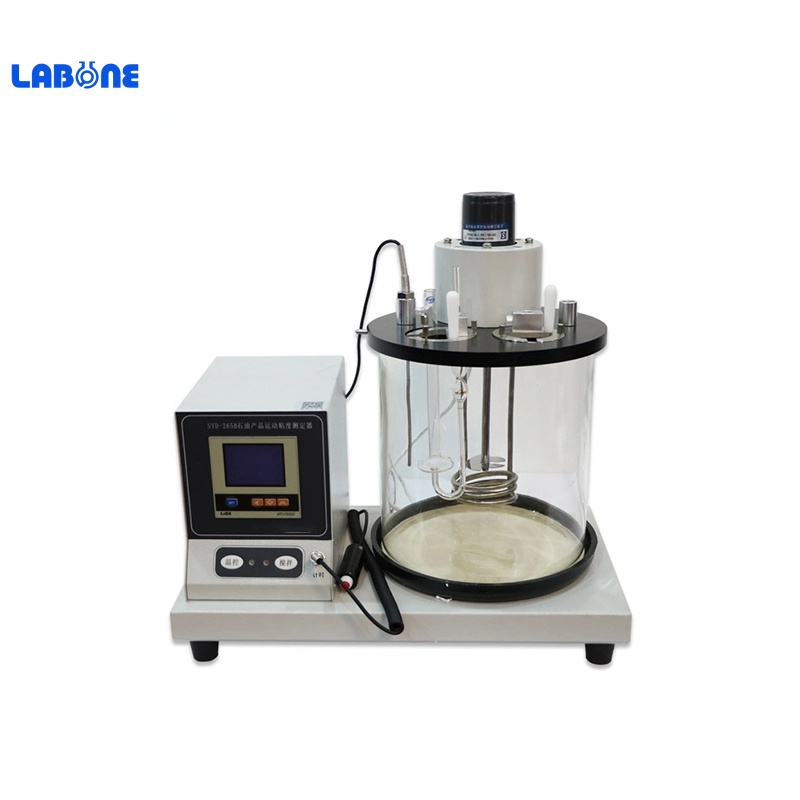

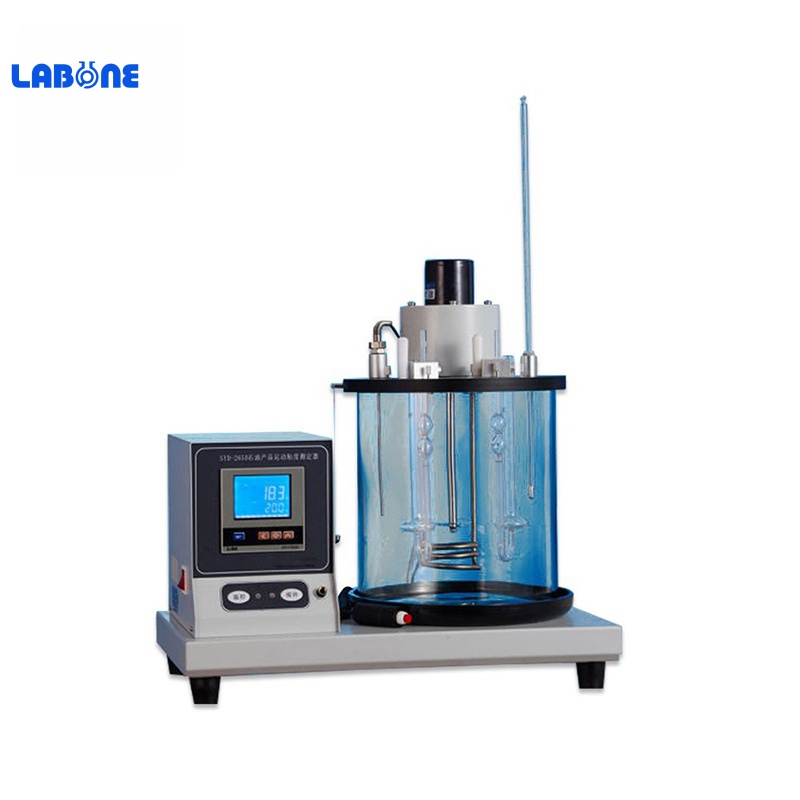

SYD-265B Kinematic Viscometer

Summary
This instrument is designed and made as per the industrial standard of People’s Republic of China SY/T5651 Technical Condition of Petroleum Products Kinematic Viscosity Tester. It is suitable to determine kinematic viscosity of liquid petroleum products(Newtonian fluids)at a constant temperature as per the stipulation in the national standard of People’s Republic of China GB/T265 Petroleum products-Determination of kinematic viscosity and calculation of dynamic viscosity.

I. Main technical features

1. Equipped with timing.

2. This instrument adopts hard glass bath and electric stirring device.Easy to observe the sample.The temperature in water bath is uniform.

II. Main technical specifications

Power supply	AC(220±10%)V，50Hz
Total power consumption	≤ 650W
Stirring motor	1200RPM
Temperature control range	Ambient to 100℃
Temperature control accuracy	±0.1℃
Temperature sensor	RTD, Pt100
Timing range	0s～9999.9s
Ambient temperature	15℃～35℃
Relative humidity	≤85％
Capillary viscometer tubes (Pinkevitch viscometer)	7 pieces in total, inner diameter for each：0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm
Dimension	500mm×310mm×500mm
Net weight	11.5kg.
