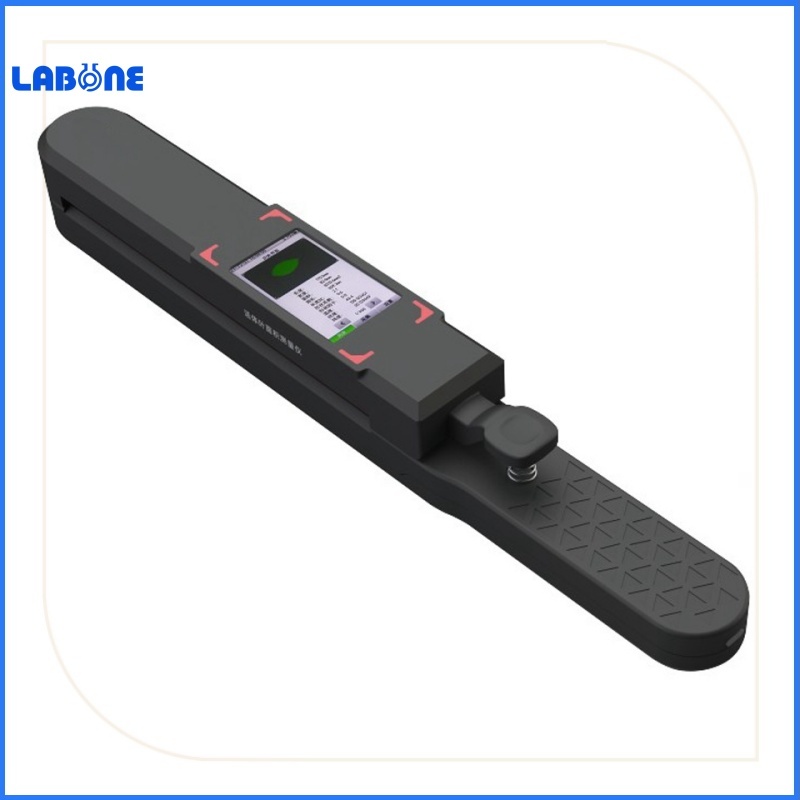

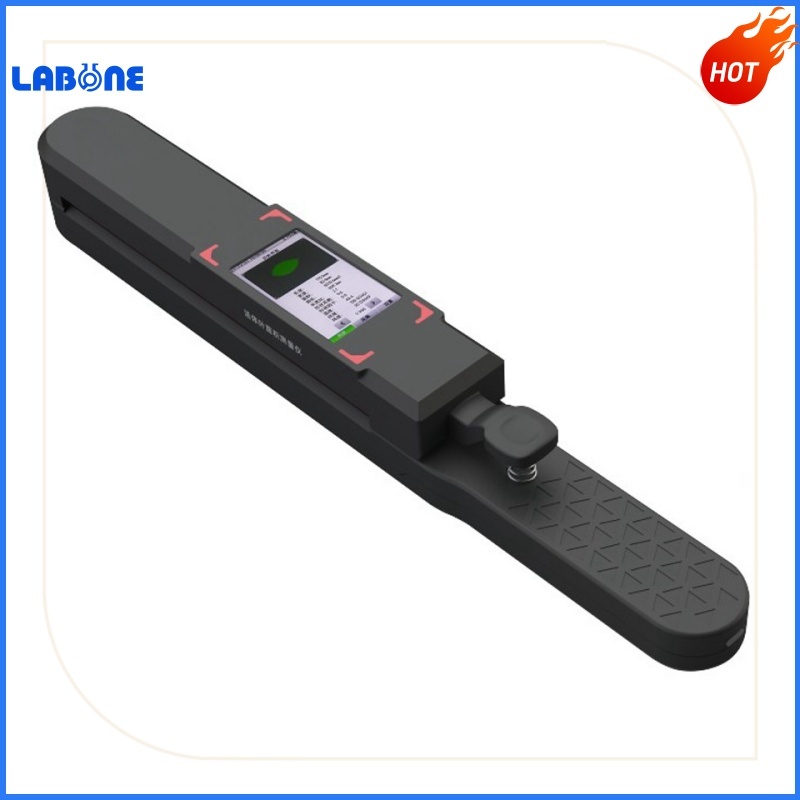

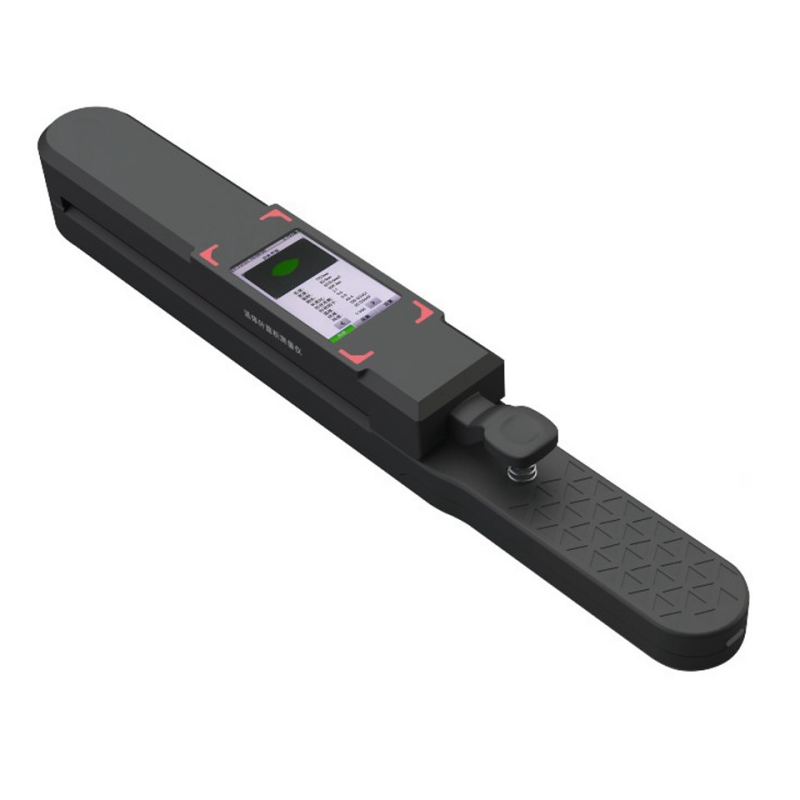

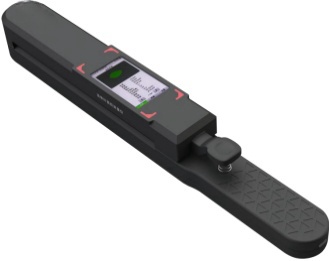

YMJ-B Portable Leaf Area Meter
it can measure the blade length, width, aspect ratio, perimeter, area, shape factor, shape factor, ambient temperature, etc.
YMJ-B Portable Leaf Area Meter
Characteristic
Measurement function: it can measure the blade length, width, aspect ratio, perimeter, area, shape factor, shape factor, ambient temperature, etc.
Bluetooth App functions: transfer data, upgrade hardware programs, and return longitude and latitude to the instrument.
Data viewing: historical data and blade shape in the equipment memory can be browsed.
Time function: the equipment has time and date functions, which can save the measurement time with the measurement data.
Transmission function: Type-c data, charging interface for data transmission and charging, universal mobile phone cable, driver free.
Power supply function: low voltage and low power consumption power supply, rechargeable lithium battery, continuous working time up to 16h, easy maintenance, safe and reliable.
Portable function: the whole machine is highly integrated, easy to operate, and suitable for indoor and outdoor use.
Technical parameter
Operation humidity | 0%~100 %RH(Frost free) |
Working Temperature | 0~40 ℃ |
LCD | 480*854 RGB Chinese interface display |
Battery | 5AH, rechargeable lithium-ion battery, 16h endurance |
Max scan length | 3000 mm |
Max effective scanning | 210 mm |
width Scanning speed | 150mm/s |
