Alumina Ceramics Light Type Horizontal Jar Zirconia Small Ball Mill Grinding Machine

Overview of Horizontal Planetary Ball Mill Light Type

WXQM series planetary ball mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movement and the balls inside the jars grind and mix materials in high speed movement. The product can smash and blend various products of different materials by dry or wet grinding methods. Smallest particle size of ground powder can be reached to 0.1 micron. As the mill jars are loaded into the jar holders horizontally with only one bottom end fixed on the planetary disc, we often call it as light type or laboratory model.

Overview of Horizontal Planetary Ball Mill Heavy-duty Type

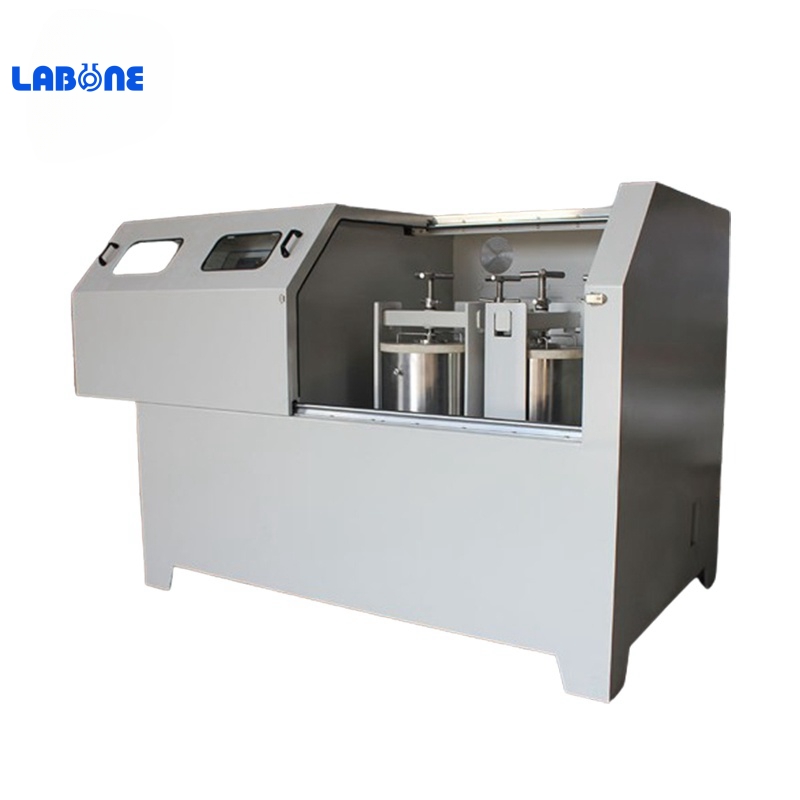

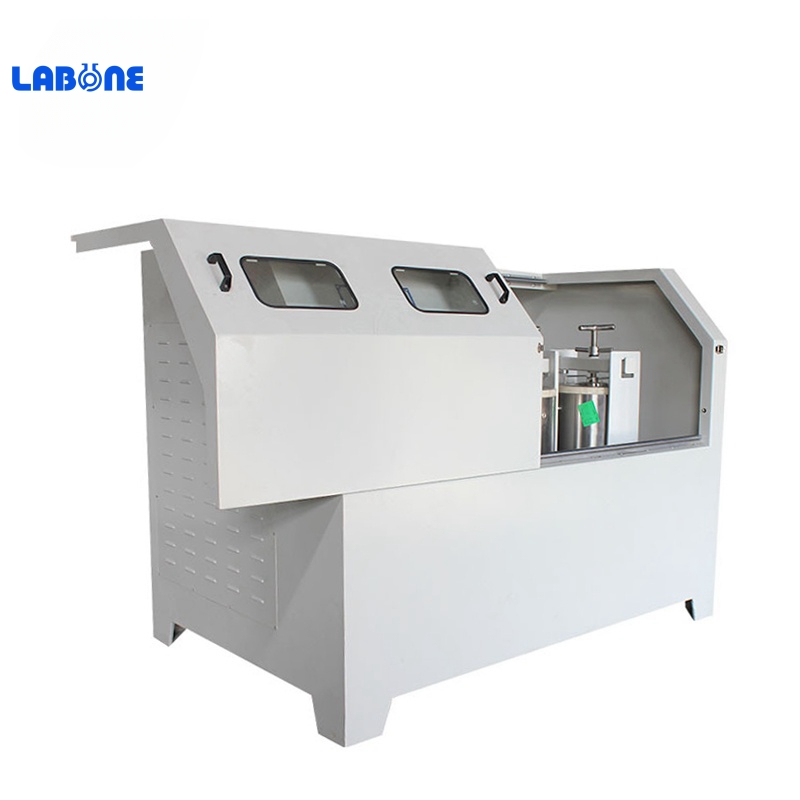

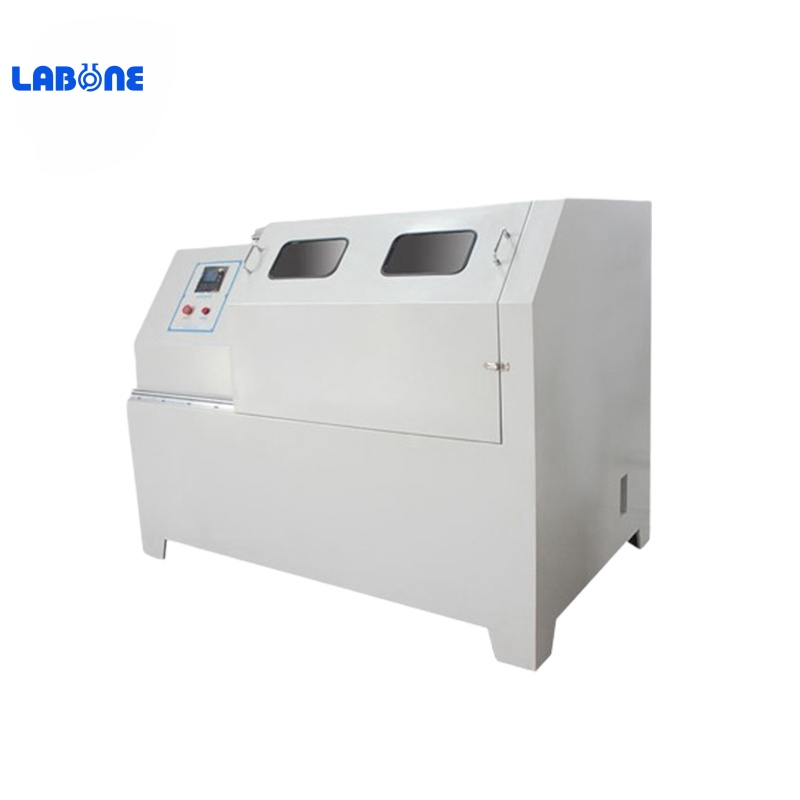

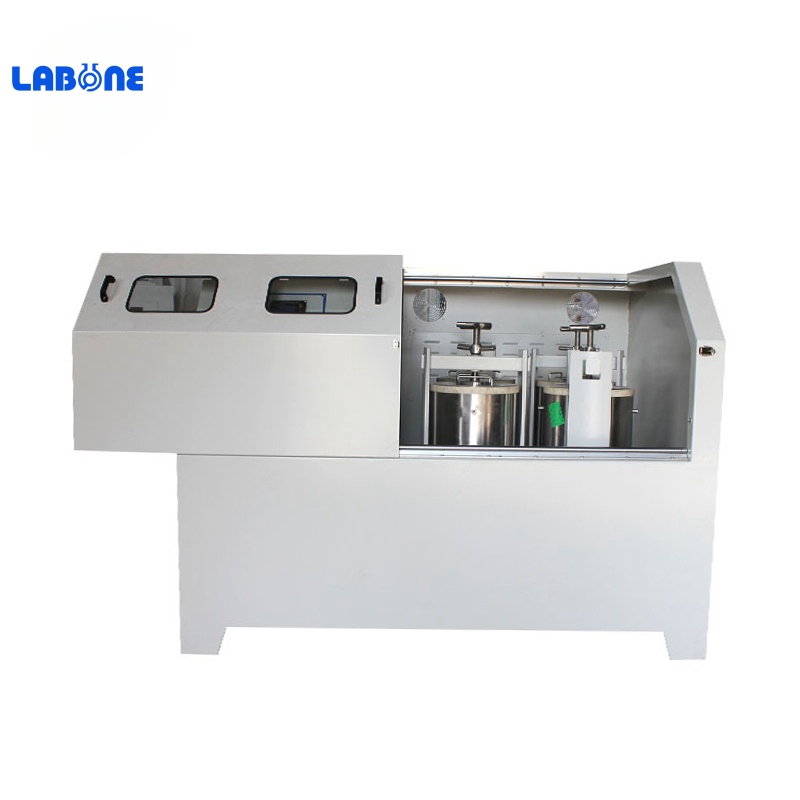

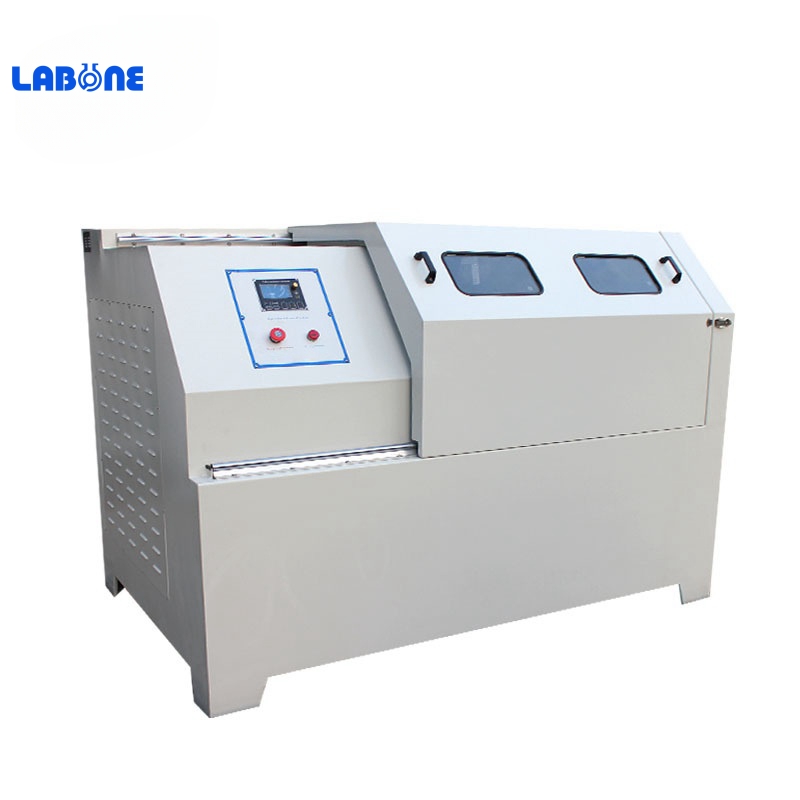

WXQM series horizontal planetary ball mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements and the balls in the tanks grinds and mixes samples in high speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of ground powder can be as small as 0.1 micron. Heavy-duty horizontal planetary ball mill is adopted with double-disk bracket structure with two ends supporting. The stability and anti-load ability of the ball mill have been effectively improved, and it solves limitation of laboratory horizontal planetary ball mill which can be only suitable for light-duty use. Heavy-duty horizontal planetary ball mill is mainly applied for user's middle testing or small batch grinding production.

Work Principle of Horizontal Planetary Ball MillHorizontal Planetary Ball Mill has four ball grinding jars installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. A variety of different materials can be ground by dry or wet method. Minimum granularity of ground powder can be as small as 0.1μm.

Features of Horizontal Planetary Ball Mill

1. Easy operation. 2. Unique gear with low noise. 3. Horizontal structure of the mill pot avoids materials sinking to the bottom. Advantages of Horizontal Planetary Ball Mill 1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment. 2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity. 3. Four powder samples from different sizes and different materials can be produced at one time. 4. The machine is controlled by frequency converter; you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor. 5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, and timing according to experimental needs so as to improve efficiency of grinding. 6. Technical features of LABONE Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss. 7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.
