CT3001F Precision Gear Pump

CT3001F adopts brushless servo motor drive, high performance, low noise, stainless steel, magnetic drive pump head, can be realized without pulsation, constant velocity flow transmission. Color LCD display, touch screen operation, can be easily set parame

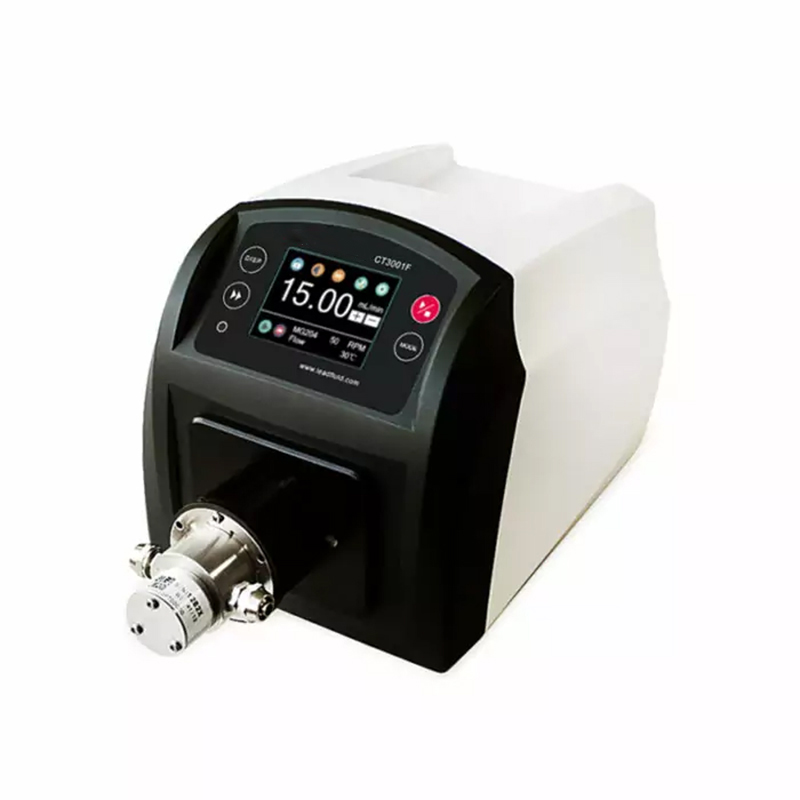

CT3001F Precision Gear Pump



CT3001F adopts brushless servo motor drive, high performance, low noise, stainless steel, magnetic drive pump head, can be realized without pulsation, constant velocity flow transmission. Color LCD display, touch screen operation, can be easily set parameters. A variety of work mode, flow display, it is suitable for all kinds of lab areas. A variety of external control way, convenient use together with other devices, support the MODBUS protocol communication, simplify the difficulty of system development.



Flow: 15-2700 mL/min
Max: 1 Channel



Category: Dispensing Gear Pumps



Function and Feature

• Can install various pump heads.
• Suitable for transmission more viscous, high pressure liquid.
• No pulsation transmission, low noise.
• The magnetic coupling is designed, easy to maintain.
• Brushless servo drive, high efficiency, high ac curacy, maintenance-free.
• Color LCD display, touch screen operation.
• LF-Touch-OS software system.
• Flow display and control.
• A variety of work mode.
• Flow calibration wizard, ensure the ac curacy of fluid volume.
• Intelligent temperature control function.
• External control signal control, physical isolation, analog control.
• RS485 communication, support MODBUS pr otocol.
• Wide range of power input, adapted to different environment.



Technical Parameters

• Flow range: 15~2700 mL/min
• Speed range: 50~3000rpm
• Speed resolution: 1rpm
• Working mode: Flow rate mode,time dispensing,volume dispensing,copy dispensing
• Dispensing time: 0.1999S
• Transport limitation of liquid particles: Particles ID≤10μmrecommended pre-filter
• Transmission liquid viscous: ≤200cSt
• Analog input signal: 05V (Standard),010V,420mA (Optional)
• Speed output signal: 05V
• External control signal: 5V,12V(Standard),24V (Optional)
• Communication: RS485 communicationMODBUS protocol
• Working environment: Working temperature 040℃, relative humidity80%
• Power supply: AC100-240V50/60Hz
• Power consumption: <50W
• IP grade: IP31
• DimensionL×W×H: 293×180×198mm
• Shell material: Plastic shell
• Weight: 3.5kg



CT3001F Applicable Pump Head and Tube, Flow

Drive type

Pump head

Gear materal

Speed range(rpm)

Pressure (MPa)

Flow rangemL/min)

CT3001F

MG204XD0PT00000

PEEK

503000

≤0.8

15900

MG209XD0PT00000

PEEK

503000

≤0.8

301800

MG213XD0PT00000

PEEK

503000

≤0.3

452700



Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.

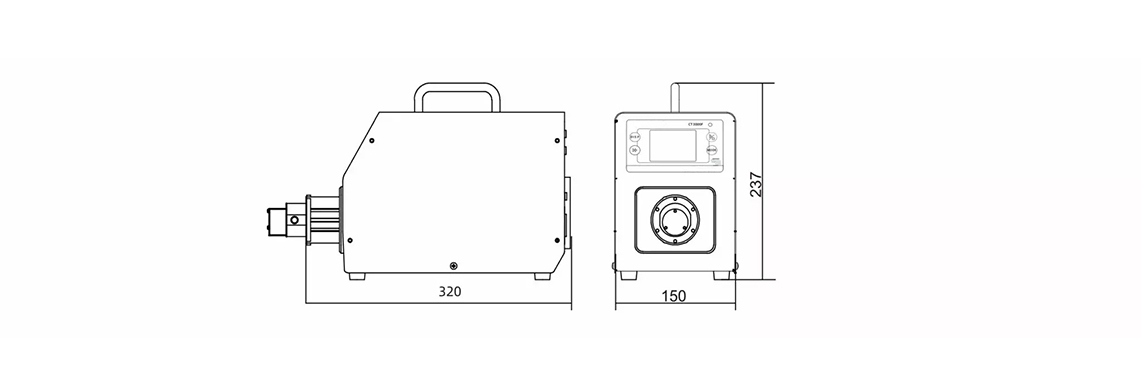

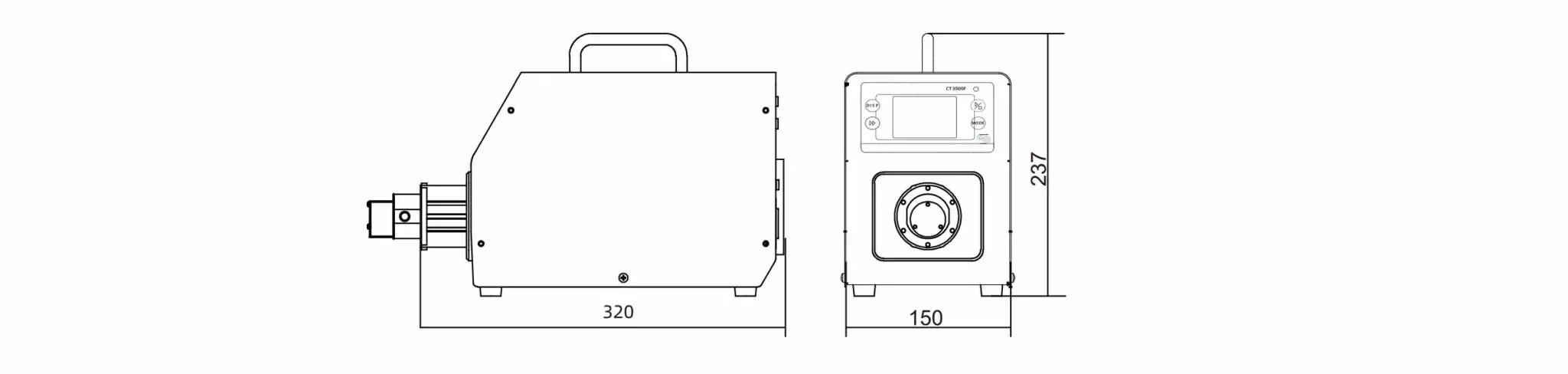

Dimensionmm


 StatementThe final explanation right of above information belongs to LABONE.
