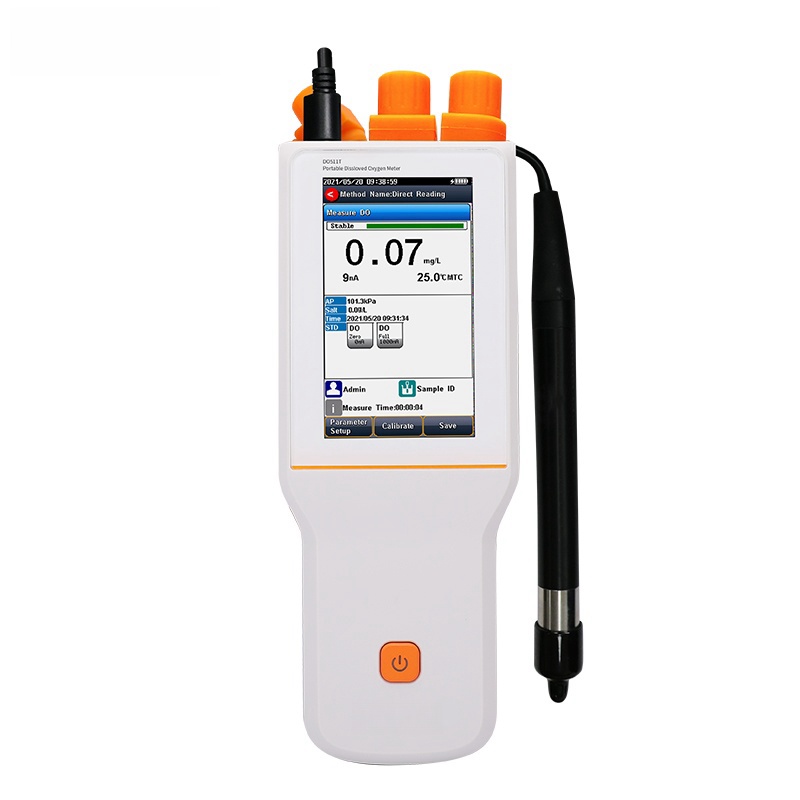

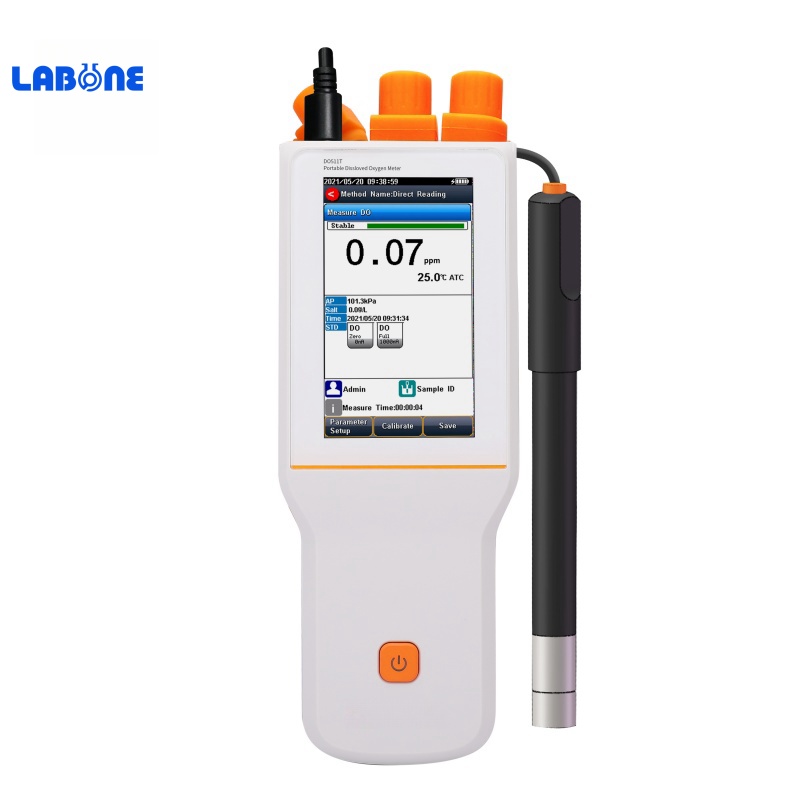

DO511T DO Meter / Portable DO Meter
GENERAL FEATURESColor High contrast LCD touchscreen, 4.3 inches.Intelligent operation system provides features including user management, calibration management, electrode management, method management, data management, Log Management and etc.Multi-
DO511T DO Meter / Portable DO Meter
GENERAL FEATURES
Color High contrast LCD touchscreen, 4.3 inches.
Intelligent operation system provides features including user management, calibration management, electrode management, method management, data management, Log Management and etc.
Multi-reading feature allows auto-read, timed-read and continuous-read.
Auto-hold feature senses and locks the measurement endpoint.
Data Storage 1000 sets for each parameter (GLP-compliant).
Data analysis feature helps user review, compare and recalculate results.
Support for USB communication.
Auto-power off feature effectively extends the battery service life.
Reset feature automatically resumes all settings back to factory default options.
IP65 waterproof. The portable meter is suitable for fields measurements and out door measurements.
Support for air-saturated water or zero oxygen calibration.
Automatic/Manual temperature compensation.
Auto/Manual barometric pressure compensation.
Selectable pressure unit, including kPa, mbar, Torr, Atm.
Manual Salinity Factor Correction

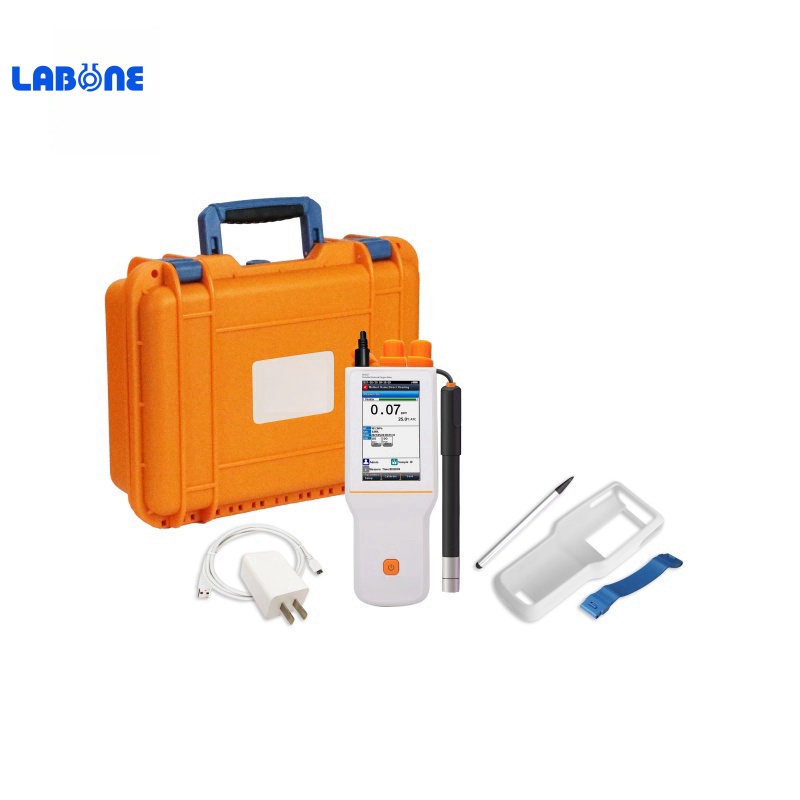

Includes
DO-968-HC optical DO electrode（3m Cable）
Zero oxygen calibration solution powder (vial)
Electrode holder
Silicone rubber case
Wristbands
Touch pen
Carrying Case
Specifications
Model | DO511T | |
Parameters | DO/Temp(DO Saturation). | |
Dissolved Oxygen Concentration | Sensor Type | Optical |
Range | 0.00 to 20.00 ppm | |
Resolution | 0.01mg/L | |
Accuracy | ±0.3ppm | |
Calibration Points | Air-saturated water or zero point | |
Barometric Compensation | Yes | |
Manual Salinity Factor Correction | Yes | |
DO Saturation | Range | (0.0 to 200.0)% |
Resolution | 0.10% | |
Accuracy | ±10.0% | |
Temperature | Range | 0 to 50 ºC |
Unit | ºC | |
Resolution | 0.1 | |
Relative Accuracy | ±0.2 | |
Measurement | Reading Mode | Auto Read (Fast, Medium, Slow), Timed, Continuous |
Reading Prompts | Reading, Stable, Locked | |
Temp. Compensation | ATC, MTC | |
Data management | Data Storage | 1000 Groups |
GLP Features | Yes | |
Inputs | DO with Temp. Probe | 6-pin aviation connector |
Outputs | USB | USB 2.0 flash memory device, PC, scanner |
Display options | Backlight | Yes |
Auto Shutdown | 300, 600, 1200, 1800, 3600 sec., off | |
IP Rating | IP65 | |
Date and Time | Yes | |
General | Power | Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output |
Dimensions | 90×255×40 mm | |
Weight | 500g (1.1 lb) | |
Dimensions (Carton) | 410×330×165 mm | |
Weight (Gross) | 5.5 kg | |
