I310T pH/Ion Meter / Portable pH/Ion Meter

GENERAL FEATURESColor High contrast LCD touchscreen, 4.3 inches.Multi-reading feature allows auto-read, timed-read and continuous-read. Automatic/Manual temperature compensation ensures accurate results.Auto-hold feature senses and locks the measu

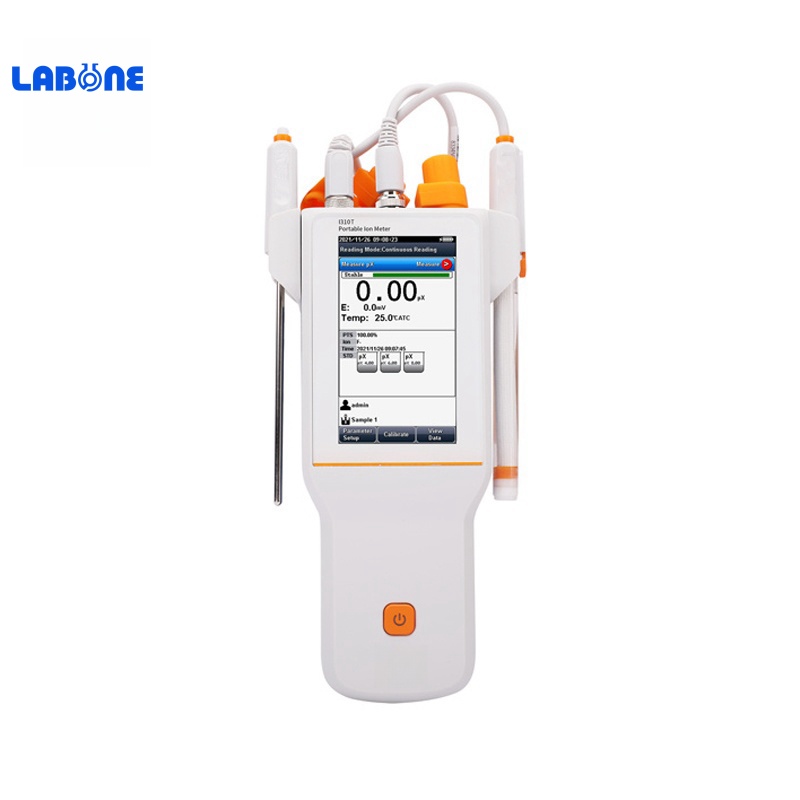

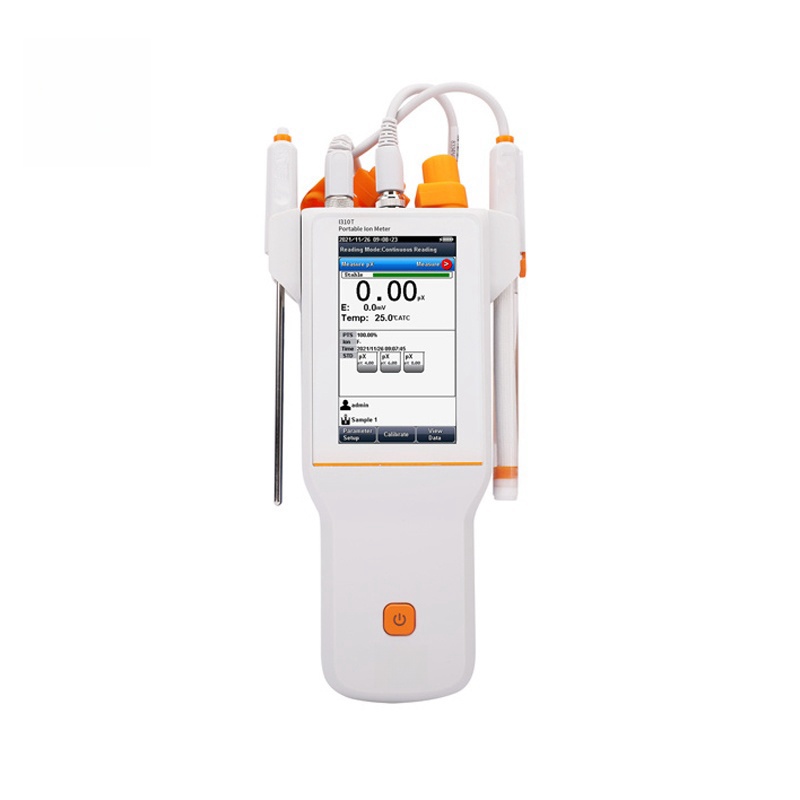

I310T pH/Ion Meter / Portable pH/Ion Meter



GENERAL FEATURES

Color High contrast LCD touchscreen, 4.3 inches.

Multi-reading feature allows auto-read, timed-read and continuous-read.

Automatic/Manual temperature compensation ensures accurate results.

Auto-hold feature senses and locks the measurement endpoint.

Data capacity of up to 500 sets for each parameter (GLP-compliant).

Support for USB communication.

Auto-power off feature effectively extends the battery service life.

Reset feature automatically resumes all settings back to factory default options.

IP65 waterproof. The portable meter is suitable for fields measurements and out door measurements.



 pH

1-5 points calibration with Standard Recognition.

Selectable pH buffer groups, including NIST, DIN, GB, USA.

Automatic electrode diagnosis with pH slope and offset display.



 Ion

1-5 points calibration.

Selectable measurement unit, including μg/L, mg/L, g/L, mmol/L, pX, ppm, ppb, etc.

Measurement modes are supported, including Direct Reading mode, Standard Addition mode, Sample Addition mode and GRAN mode.

Over 10 methods are built-in, including F-, Cl-, Br-, I-, NO3-, BF4-, NH4+, K+, Na+, Ca2+, Cu2+, Pb2+, Ag+ and etc., user-defined method is supported.

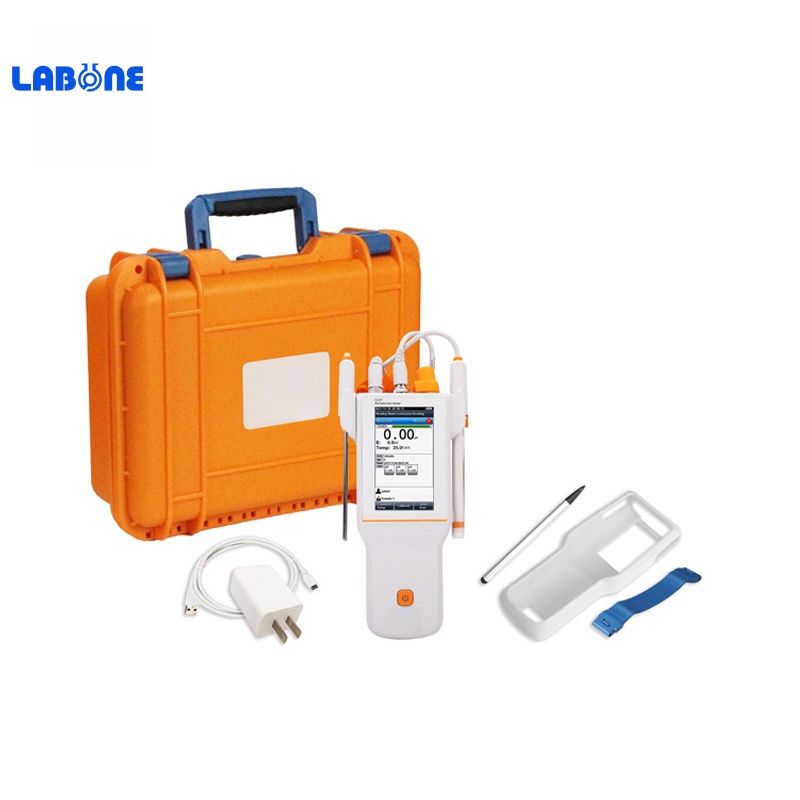

 Includes

Electrode holder

Silicone rubber case

Wristbands

Touch pen

Carrying Case



Specifications

Model

I310T

Parameters

pH/ISE/Temp.(mV/pX)

pH

Range

-2.00 to 20.00pH

Resolution

0.1, 0.01 pH

Accuracy

±0.01 pH

Calibration Points

Up to 5

Standard Customization

Yes

Standard Recognition

NIST, GB, USA and DIN buffers

Slope Limit

Yes

mV/ORP

Range

-2000.0 to 2000.0 mV

Resolution

0.1 mV

Accuracy

±0.3 mV or ±0.1%

pX

Range

-2.00 to 20.00 pX

Resolution

0.1, 0.01 pX

Accuracy

±0.02 pX

Calibration Points

Up to 5

ISE

Range

1.000e-9 to 9.999e+9

Units

mol/L, mmol/L, g/L, mg/L, μg/L, ppm, ppb

Resolution

Up to 4 significant digits

Accuracy

±0.5%

Calibration Points

Up to 5

Temperature

Range

-5 to 110 ºC, 23 to 230 ºF

Unit

ºC, ºF

Resolution

0.1

Accuracy

±0.2ºC

Measurement

Reading Mode

Auto Read (Fast, Medium, Slow), Timed, Continuous

Reading Prompts

Reading, Stable, Locked

Temp. Compensation

ATC, MTC

Data management

Data Storage

1000 Groups

GLP Features

Yes

Inputs

pH Electrode

BNC(Q9)

Temp. Probe

4-pin aviation connector

Outputs

USB

PC, printer

Display options

Backlight

Yes

Auto Shutdown

300, 600, 1200, 1800, 3600sec., off

IP Rating

IP65

Date and Time

Yes

General

Power

Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output

Dimensions

90 x 255 x 40 mm

Weight

500g (1.1 lb)

Dimensions (Carton)

410×330×165 mm

Weight (Gross)

5.5 kg
