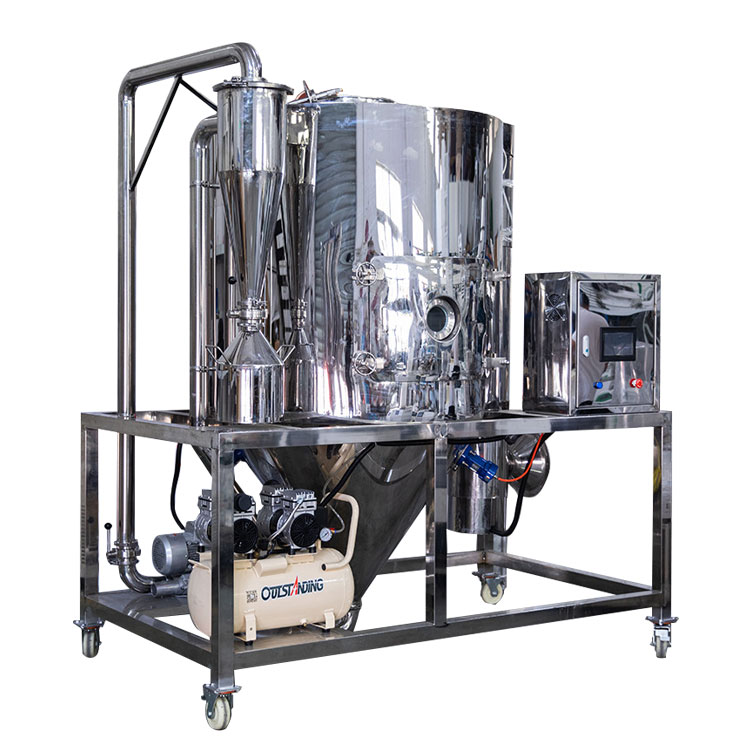

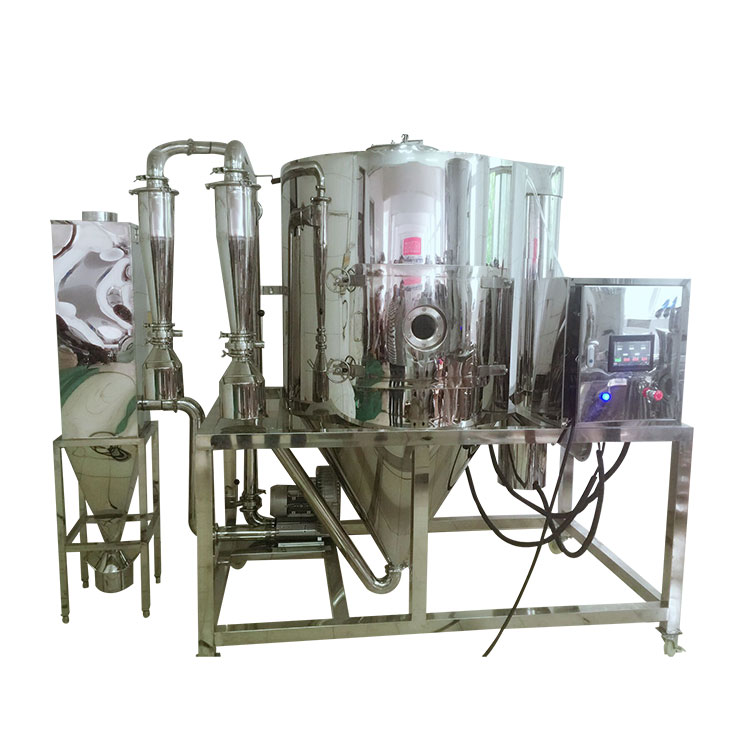

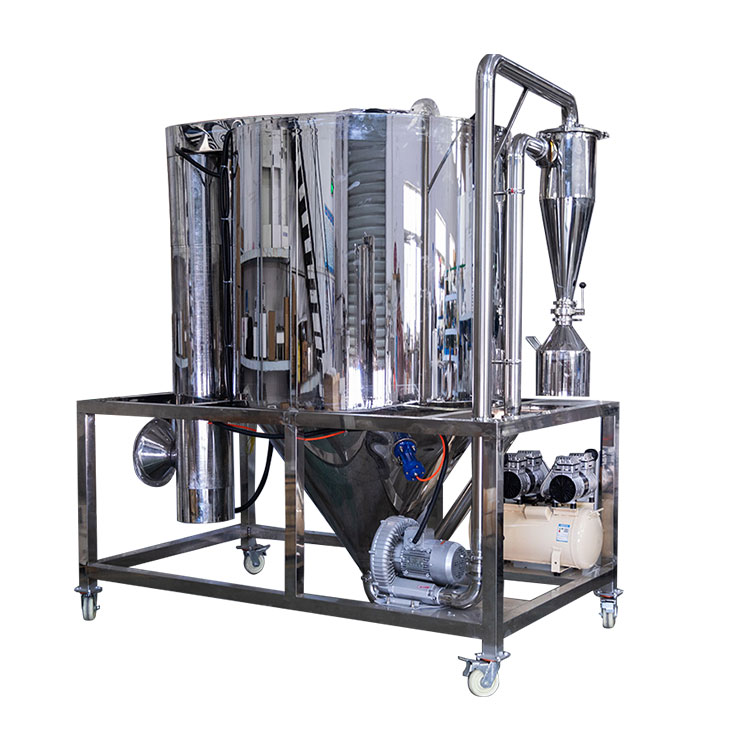

SP-10L Industrial Spray Dryer

Product Description:

(Small spray dryer/centrifugal spray dryer) Working principle The air passes through the filter and heater, into the hot air distributor on the top of the drying chamber, and the hot air enters the drying chamber evenly in a spiral shape. The material liquid passes through the filter, is pumped to the centrifugal spray head at the top of the drying chamber, is sprayed into a very small mist droplets, with a large surface area and hot air contact, the water evaporates rapidly, dried into granular products in a very short time, at the bottom of the tower and the cyclone separator in the wet waste gas is captured by the fan to the outdoor.

Product features:

1, the drying speed is fast, the material liquid by centrifugal spray, the surface area is greatly increased, in the high temperature air flow, the instant can evaporate 95-98% of water, the drying time is only a few seconds.

2, suitable for heat sensitive materials. Because the droplets flow in the direction of the hot air, although the temperature of the hot air is higher, the material will not overheat when the water evaporates.

3, wide range of use. A large number of materials with very different physical properties are used in this production. Such as polymers and resins; Dyes and pigments; Ceramics, glass; Rust remover, insecticide; Carbohydrates; Dairy products; Blood and fish products; Fertilizers; Organic and inorganic compounds; Let's wait.

4, the product has good dispersion, fluidity and solubility. This is due to the instant completion of drying, the product can maintain a uniform fine grain.

5. The production process is simplified and the operation control is convenient. For the wet content of 40-60% (special materials can reach 90%) of the solution can be dried into a powder product, after drying do not need to be crushed and screened, reduce the production process, improve the purity of the product. For the size of the product, loose density, moisture, within a certain range, can change the operating conditions to adjust, control, management are very convenient.

Technical parameters:

◆ Large color touch screen operation, combination of automatic control and manual control, Chinese and English panel, parameter LCD display.

◆ Real-time control PID constant temperature control technology, accurate temperature control, heating temperature control accuracy ±1℃.

◆ The spray, drying and collection device is made of 304 stainless steel with double mirror, and the spray drying room is equipped with an observation port.

◆ Atomization structure of centrifugal spray, particle diameter of powder spray normal distribution, good fluidity.

◆ Feed amount can be adjusted by feed peristaltic pump.

◆ Special protection function, the fan does not start, the heater can not start.

◆ Equipped with air inlet filtration to ensure sample purity.

◆ After drying, the particle size is uniform, and more than 95% of the dry powder is in the same particle size.

1, inlet temperature ≤30-300℃

2, outlet temperature < 30 ~ 150℃

3, water evaporation capacity 200-10L/h

4, centrifugal spray head transmission form: electric

5. Speed 40000rpm

6, spray disc diameter 80mm

7. Heat source: Electricity

8, electric heating power 15kw, total power: 20kw

9, overall dimension length × width × height (mm) : 2200×1300×2400

10, dry powder recovery ≥98%
